Overview

Features and Benefits

  • User-Programmable Square-Wave Generator
  • Frequencies Programmable from 130kHz to 66.6MHz
  • 0.5%, 1%, 2%, 4%, or 8% Selectable Dithered Output
  • Adjustable Dither Rate
  • Glitchless Output-Enable Control
  • 2-Wire Serial Interface
  • Nonvolatile Settings
  • 2.7V to 3.6V Supply
  • No External Timing Components Required
  • Power-Down Mode
  • 5kHz Master Frequency Step Size
  • EMI Reduction
  • Industrial Temperature Range: -40°C to +85°C

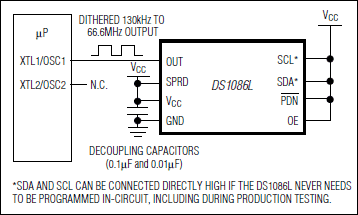

Product Details

The DS1086L EconOscillator™ is a 3.3V programmable clock generator that produces a spread-spectrum (dithered) square-wave output of frequencies from 130kHz to 66.6MHz. The selectable dithered output reduces radiated-emission peaks by dithering the frequency 0.5%, 1%, 2%, 4%, or 8% below the programmed frequency. The DS1086L has a power-down mode and an output-enable control for power-sensitive applications. All the device settings are stored in nonvolatile (NV) EEPROM memory allowing it to operate in stand-alone applications.

Applications

  • Cable Modems
  • Cell Phones
  • Computer Peripherals
  • Copiers
  • PCs
  • Printers

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
