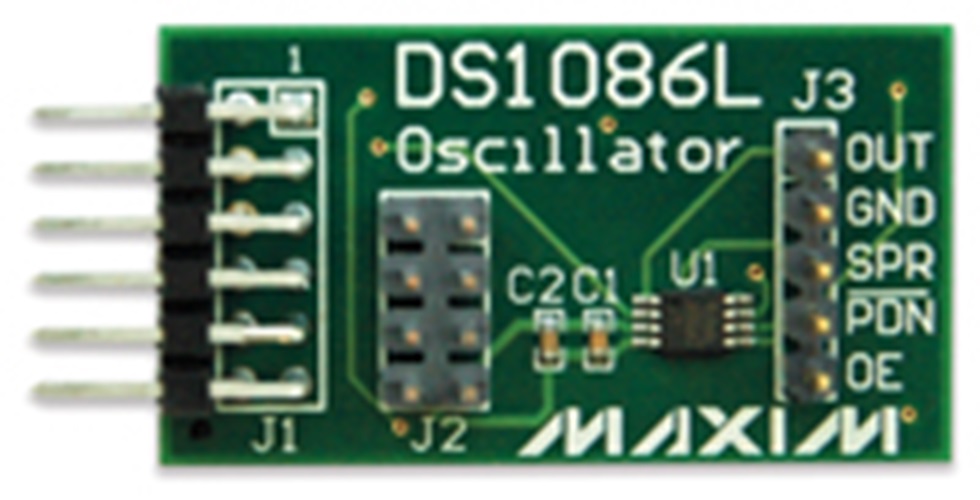

DS1086LPMB1 Evaluation Board

Overview

Features and Benefits
Product Details

Features and Benefits

User-Programmable 130kHz to 66.6MHz Square Wave
No External Timing Components Required
6-Pin Pmod-Compatible Connector (I²C)
Example Software Written in C for Portability
Secondary Header Allows Daisy-Chaining of Additional Modules on the I²C Bus
Output Header Provides Access to Control Signals for External Circuitry
RoHS Compliant
Proven PCB Layout
Fully Assembled and Tested

Product Details

The DS1086LPMB1 peripheral module provides the necessary hardware to interface the DS1086L 3.3V spread-spectrum EconOscillator™ to any system that utilizes Pmod™-compatible expansion ports configurable for I²C communication. The DS1086L is a programmable clock generator that produces a spread-spectrum (dithered) square-wave output of frequencies from 130kHz to 66.6MHz. The selectable dithered output reduces radiated-emission peaks by dithering the frequency 0.5%, 1%, 2%, 4%, or 8% below the programmed frequency. The DS1086L has a power-down mode and an output-enable control for power-sensitive applications.

Refer to the DS1086L IC data sheet for detailed information regarding operation of the IC.
