DG1207

PRODUCTION

Low-Leakage, Single 16-Channel and Dual 8-Channel, Analog Multiplexer

With an Average of 1nA of Leakage, our Low Leakage Muxes are Ideal for High Precision Circuits

Data Sheet (Rev. 1) Product Selection Table

Part Models: 2
1ku List Price: Starting From $3.78

Viewing:

Overview

Distortion-Free Measurement
- 100Ω (typ) On Resistance
- ≤ 2nA (max) On/Off-Leakage Current for DG1206
- ≤ 1nA (max) On/Off-Leakage Current for DG1207
- ≤ 0.5pC (typ) Charge Injection
Wide Supply Range with Low Supply Current
- 40μA (typ) Quiescent Current at Room Temperature
- Fully Specified with ±15V Bipolar Supplies or +12V Single Supply
- Rail-to-Rail Operation
Flexible Design Option
- GPIO-Compatible Control Inputs
- EN Input to Enable/Disable Device
- Available in both 32-TQFN and 28-TSSOP Packages
- -40°C to +85°C Temperature Range

The DG1206 and DG1207 are low-leakage, low-charge injection single 16-channel or dual 8-channel multiplexing switch devices. The DG1206 uses four selection inputs A3, A2, A1, and A0 to determine the switching logic; the DG1207 uses three selection inputs A2, A1, and A0. On both devices, an enable (EN) input is used to enable or disable the device.

The ultra-low capacitance and low-charge injection of the DG1206/DG1207 make them ideal for automatic test equipment systems, data acquisition systems, and sample- and-hold systems where low glitch and fast settling time are required.

The DG1206/DG1207 are available in 5mm x 5mm 32-lead TQFN or 28-lead TSSOP packages. The devices are specified for operation over the -40°C to +85°C temperature range.

Applications

Automatic Test Equipment Systems
Data Acquisition Systems
Sample-and-Hold Systems
Communication Systems
Audio and Video Routing

Part Models: 2
1ku List Price: Starting From $3.78

Documentation

Data Sheet 1

DG1206-DG1207: Low-Leakage, Single 16-Channel and Dual 8-Channel, Analog Multiplexer Data Sheet (Rev.1) 03/02/2022

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
DG1207EUI+	Thin Shrink Small-Outline Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
DG1207EUI+T	Thin Shrink Small-Outline Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Analog Switches & Multiplexers 2
MAX306	PRODUCTION	Precision, 16-Channel/Dual 8-Channel, High-Performance, CMOS Analog Multiplexers
MAX307	PRODUCTION	Precision, 16-Channel/Dual 8-Channel, High-Performance, CMOS Analog Multiplexers

Parts	Product Life Cycle	Description
ADG1207	PRODUCTION	Low Capacitance, 8-Channel, ±15 V/+12 V iCMOS Multiplexer

Tools & Simulations

IBIS Model 1

DG1207 IBIS Model

Evaluation Kits

Evaluation Kit for the DG1206, DG1207

Buy Now View Details

Features and Benefits

SMA Connectors for Analog Inputs and Outputs
Jumpers at A3-A0 and EN Digital Inputs for Easy Configuration
Test Points for All Digital and Analog Signals
Fully Assembled and Tested
Proven PCB Layout

Product Details

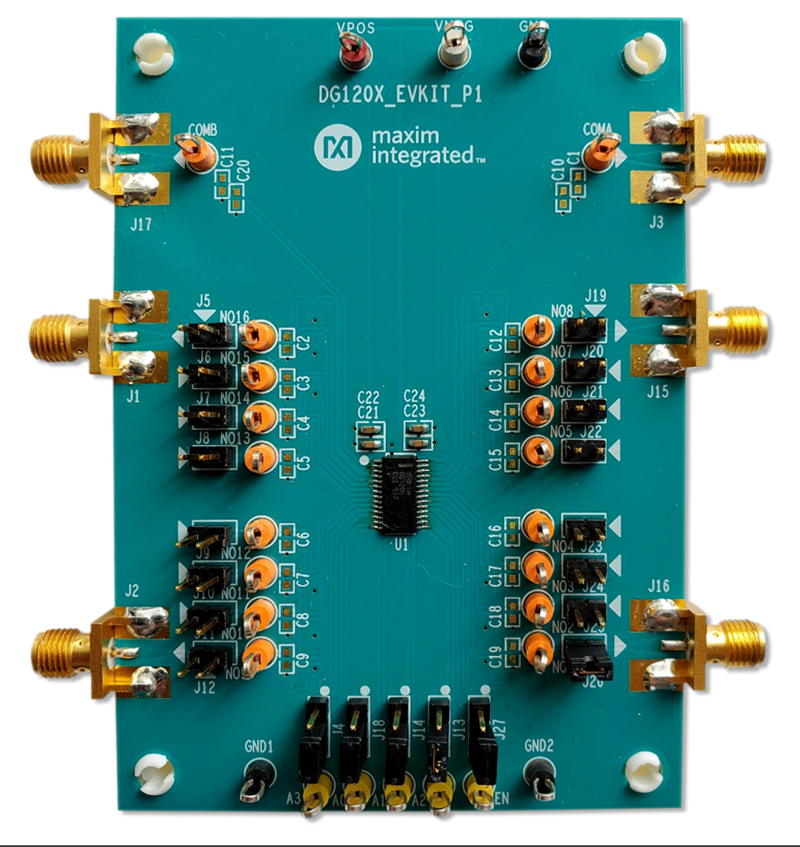

The DG120X evaluation kit (EV kit) provides a proven design to evaluate the DG1206/DG1207, a low-leakage and low-charge-injection multiplexer device. The DG120XEVKIT# is fully assembled and tested, and comes populated with the DG1206EUI+, the 16-to-1 multiplexer device. Refer to the DG120X EV Kit Board Picture.

The DG120XEVKIT# can also be used to evaluate DG1207, the 8-to-1 device from the same multiplexer family. See the Configure the DG120X EV Kit section for more information.
