  5. DAC8248

Alternative Parts


Features and Benefits

  • Two Matched 12-Bit DACs on One Chip
  • 12-Bit Resolution with an 8-Bit Data Bus
  • Direct Interface with 8-Bit Microprocessors
  • Double-Buffered Digital Inputs
  • RESET to Zero Pin
  • 12-Bit Endpoint Linearity (±1/2 LSB) Over Temperature
  • +5 V to 15 V Single Supply Operation
  • Latch-Up Resistant
  • Improved ESD Resistance
  • Packaged in a Narrow 0.3" 24-Pin  DIP and 0.3" 24-Pin SOL Package
  • Available in Die Form

Product Details

The DAC8248 is a dual 12-bit, double-buffered, CMOS digital-to-analog converter. It has an 8-bit wide input data port that interfaces directly with 8-bit microprocessors. It loads a 12-bit word in two bytes using a single control; it can accept either a least significant byte or most significant byte first. For designers with a 12-bit or 16-bit wide data path, choose the DAC8222 or DAC8221.

The DAC8248's double-buffered digital inputs allow both DAC's analog output to be updated simultaneously. This is particularly useful in multiple DAC systems where a common LDAC signal updates all DACs at the same time. A single RESET pin resets both outputs to zero.

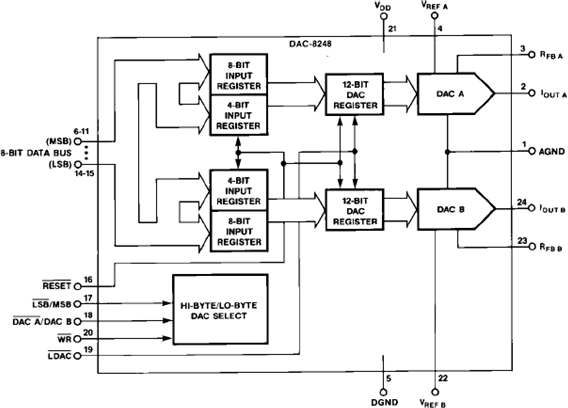

The DAC8248's monolithic construction offers excellent DAC-to-DAC matching and tracking over the full operating temperature range. The DAC consists of two thin-film R-2R resistor ladder networks, two 12-bit, two 8-bit, and two 4-bit data registers, and control logic circuitry. Separate reference input and feedback resistors are provided for each DAC. The DAC8248 operates on a single supply from +5 V to +15 V, and it dissipates less than 0.5 mW at +5 V (using zero or VDD logic levels). The device is packaged in a space-saving 0.3", 24-pin DIP.

The DAC-8248 is manufactured with PMI's highly-stable thin-film resistors on an advanced oxide-isolated, silicon-gate, CMOS technology. PMI's improved latch-up resistant design eliminates the need for external protective Schoottky diodes.


  • Multichannel Microprocessor-Controlled Systems
  • Robotics/Process Control/Automation
  • Automatic Test Equipment
  • Programmable Attenuator, Power Supplies, Window Comparators
  • Instrumentation Equipment
  • Battery Operated Equipment

Product Lifecycle icon-not-recommended Not Recommended for New Designs

This designates products ADI does not recommend broadly for new designs.
