DAC8043
12-Bit Serial Input Multiplying CMOS D/A Converter
Top
Alternative Parts
Overview
Features and Benefits
- 12-bit accuracy in an 8-lead PDIP and SOIC
package - Fast Serial Data Input
- Double Data Buffers
- Low ±½ LSB maximum INL and ±1 LSB
maximum DNL
- Maximum gain error: 2 LSB
- Low ±5 ppm/°C maximum tempco
- ESD Resistant
- Low Cost
- Available in Die Form
Product Details
Newer Alternatives: NEW DESIGNS:
AD5443 High Bandwidth CMOS 12-Bit Serial Interface Multiplying D/A Converter
The DAC8043 is a high accuracy 12-bit CMOS multiplying DAC in a space-saving 8-lead PDIP package. Featuring serial data input, double buffering, and excellent analog performance, the DAC8043 is ideal for applications where PC board space is at a premium. In addition, improved linearity and gain error performance permit reduced parts count through the elimination of trimming components. Separate input clock and load DAC control lines allow full user control of data loading and analog output.

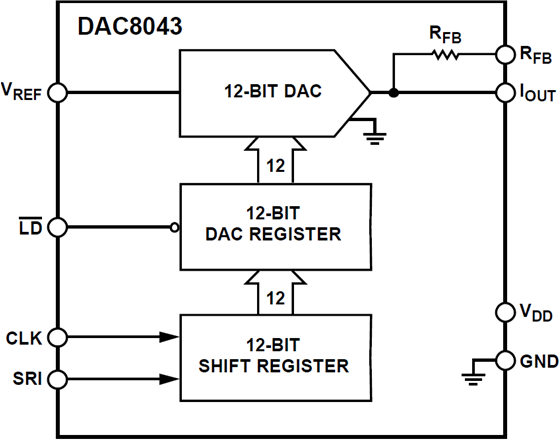

The circuit consists of a 12-bit serial-in, parallel-out shift register, a 12-bit DAC register, a 12-bit CMOS DAC, and control logic. Serial data is clocked into the input register on the rising edge of the CLK pulse. When the new data word has been clocked in, it is loaded into the DAC register with the LD input pin. Data in the DAC register is converted to an output current by the digital-to-analog converter (DAC).
The fast interface timing of the DAC8043 may reduce timing design considerations while minimizing microprocessor wait states. For applications requiring an asynchronous clear function or more versatile microprocessor interface logic, refer to the AD5443.
Operating from a single 5 V power supply, the DAC8043 is the ideal low power, small size, high performance solution to many application problems. It is available in a PDIP package that is compatible with auto-insertion equipment. There is also a 16-lead SOIC package available.
APPLICATIONS
- Auto calibration systems
- Process control and industrial automation
- Programmable amplifiers and attenuators
- Digitally controlled filters
Product Categories
Product Lifecycle
Not Recommended for New Designs
This designates products ADI does not recommend broadly for new designs.
Documentation & Resources
-
AN-912: Driving a Center-Tapped Transformer with a Balanced Current-Output DAC (Rev. 0)5/21/2007PDF246 kB
-
AN-320B: CMOS Multiplying DACs and Op Amps Combine to Build Programmable Gain Amplifiers, Part 210/15/2004PDF989 kB
-
AN-320A: CMOS Multiplying DACs and Op Amps Combine to Build Programmable Gain Amplifier, Part 110/15/2004PDF1295 kB
-
AN-137: A Digitally Programmable Gain and Attenuation Amplifier Design9/26/2002PDF52 kB
Tools & Simulations
Precision DAC Error Budget Tool
The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.
