Features
- Low Offset Voltage: 100 µV max
- Low Drift: 2 µV/°C max
- Wide Gain Range: 1 to 10,000
- High Common-Mode Rejection: 115 dB min
- High Bandwidth (G = 1000): 200 kHz typ
- Gain Equation Accuracy: 0.5% max
- Single Resistor Gain Set
- Input Overvoltage Protection
- Low Cost
- Available in Die Form
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
Laser trimming reduces the input offset voltage to under 100 µV. Output offset voltage is below 4 mV and gain accuracy is better than 0.5% for gain of 1000. PMI's proprietary thin-film resistor process keeps the gain temperature coefficient under 50 ppm/°C.
Due to the AMP-02's design, its bandwidth remains very high over a wide range of gain. Slew rate is over 4V/µS making the AMP-02 ideal for fast data acquisition systems.
A reference pin is provided to allow the output to be referenced to an external DC level. This pin may be used for offset correction or level shifting as required. In the 8-pin package, sense is internally connected to the output.
For an instrumentation amplifier with the highest precision, consult the AMP-01 data sheet.
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AMP02
Documentation
Filters
1 Applied
-
All
-
Application Note
-
Data Sheet
-
Technical Articles
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
1
Application Note
14
522 kB
347 kB
1559 kB
1606 kB
Technical Articles
4
doc
75 kB
URL
URL
Documentation
Data Sheet 1
Application Note 5
AN-244: A User's Guide to I.C. Instrumentation Amplifiers
AN-589: Ways to Optimize the Performance of a Difference Amplifier (Rev.B)
AN-671: Reducing RFI Rectification Errors in In-Amp Circuits (Rev.0)
AN-245: Instrumentation Amplifiers Solve Unusual Design Problems
AN-282: Fundamentals of Sampled Data Systems
Technical Articles 4
Technical Book 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

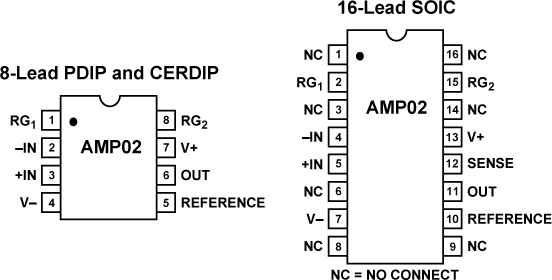

| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AMP02EPZ |
8-Lead PDIP
|
|
|
| AMP02FPZ |
8-Lead PDIP
|
|
|
| AMP02FSZ |
16-Lead SOIC Wide
|
|
|
| AMP02FSZ-RL |
16-Lead SOIC Wide
|
|
- AMP02EPZ
- Pin/Package Drawing
-
8-Lead PDIP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AMP02FPZ
- Pin/Package Drawing
-
8-Lead PDIP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AMP02FSZ
- Pin/Package Drawing
-
16-Lead SOIC Wide
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AMP02FSZ-RL
- Pin/Package Drawing
-
16-Lead SOIC Wide
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Nov 9, 2011
- 11_0182
Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
AMP02EPZ
PRODUCTION
AMP02FPZ
PRODUCTION
AMP02FSZ
PRODUCTION
AMP02FSZ-RL
Aug 19, 2009
- 07_0024
Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
AMP02EPZ
PRODUCTION
AMP02FPZ
PRODUCTION
Jul 21, 2014
- 13_0297
Qualification of ASE Chungli, as an Alternate Assembly Site for Select 16L, 20L, 24L and 28L SOICW Packages
AMP02FSZ
PRODUCTION
AMP02FSZ-RL
Aug 4, 2010
- 10_0117
Halogen Free Material Change for SOIC_W Products at Carsem
AMP02FSZ
PRODUCTION
AMP02FSZ-RL
Filter by Model
Part Models
Product Lifecycle
PCN
Nov 9, 2011
- 11_0182
Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
AMP02EPZ
PRODUCTION
AMP02FPZ
PRODUCTION
AMP02FSZ
PRODUCTION
AMP02FSZ-RL
Aug 19, 2009
- 07_0024
Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
AMP02EPZ
PRODUCTION
AMP02FPZ
PRODUCTION
Jul 21, 2014
- 13_0297
Qualification of ASE Chungli, as an Alternate Assembly Site for Select 16L, 20L, 24L and 28L SOICW Packages
AMP02FSZ
PRODUCTION
AMP02FSZ-RL
Aug 4, 2010
- 10_0117
Halogen Free Material Change for SOIC_W Products at Carsem
Software & Part Ecosystem
Tools & Simulations 2
SPICE Model 1
SPICE Model
In-Amp Error Calculator
