Features
- Small, low-profile package
- 4 mm × 4 mm × 1.45 mm LFCSP
- Low power - 350 μA (typical)
- Single-supply operation
1.8 V to 3.6 V
- 3-axis sensing
- 10,000 g shock survival
- Excellent temperature stability
- BW adjustment with a single capacitor per axis
- RoHS/WEEE lead-free compliant
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADXL335 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of ±3 g. It can measure the static acceleration of gravity in tiltsensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration.
The user selects the bandwidth of the accelerometer using the CX, CY, and CZ capacitors at the XOUT, YOUT, and ZOUT pins. Bandwidths can be selected to suit the application, with a range of 0.5 Hz to 1600 Hz for X and Y axes, and a range of 0.5 Hz to 550 Hz for the Z axis.
The ADXL335 is available in a small, low profile, 4 mm × 4 mm × 1.45 mm, 16-lead, plastic lead frame chip scale package (LFCSP_LQ).
APPLICATIONS
- Cost sensitive, low power, motion- and tilt-sensing applications
- Mobile devices
- Gaming systems
- Disk drive protection
- Image stabilization
- Sports and health devices
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADXL335
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Application Note
-
Technical Articles
-
Evaluation Design File
-
Frequently Asked Question
-
All
-
English
-
Japanese
-
Chinese
Data Sheet
2
Application Note
7
HTML
HTML
HTML
HTML
HTML
Technical Articles
4
URL
HTML
HTML
HTML
Evaluation Design File
2
Frequently Asked Question
1
HTML
Documentation
Data Sheet 1
Application Note 3
Technical Articles 2
Evaluation Design File 1
Frequently Asked Question 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADXL335BCPZ |
16-Lead LFCSP (4mm x 4mm w/ EP)
|
|
|
| ADXL335BCPZ-RL |
16-Lead LFCSP (4mm x 4mm w/ EP)
|
|
|
| ADXL335BCPZ-RL7 |
16-Lead LFCSP (4mm x 4mm w/ EP)
|
|
- ADXL335BCPZ
- Pin/Package Drawing
-
16-Lead LFCSP (4mm x 4mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADXL335BCPZ-RL
- Pin/Package Drawing
-
16-Lead LFCSP (4mm x 4mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADXL335BCPZ-RL7
- Pin/Package Drawing
-
16-Lead LFCSP (4mm x 4mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Sep 26, 2022
- 22_0221
Qualification of Alternate Fab Site for MEMS Products
ADXL335BCPZ
ADXL335BCPZ-RL
ADXL335BCPZ-RL7
Oct 17, 2013
- 13_0021
Qualification of Second Source Supplier for Seal Glass on Capped iMEMS Devices
ADXL335BCPZ
ADXL335BCPZ-RL
ADXL335BCPZ-RL7
Apr 20, 2010
- 09_0249
Addition of Advanced Semiconductor Engineering (ASE) Korea as an alternate source and transfer to ASE for the LFCSP package
ADXL335BCPZ
ADXL335BCPZ-RL
ADXL335BCPZ-RL7
Mar 22, 2010
- 10_0037
Minor metal mask revision on XL335 ASIC
ADXL335BCPZ
ADXL335BCPZ-RL
ADXL335BCPZ-RL7
Mar 19, 2009
- 08_0150
ADXL335 and ADXL345 family of parts, Capping Process Transfer
ADXL335BCPZ
ADXL335BCPZ-RL
ADXL335BCPZ-RL7
Mar 19, 2009
- 09_0037
ADXL335 and ADXL345 Sensor Release Process Transfer
ADXL335BCPZ
ADXL335BCPZ-RL
ADXL335BCPZ-RL7
Filter by Model
Part Models
Product Lifecycle
PCN
Sep 26, 2022
- 22_0221
Qualification of Alternate Fab Site for MEMS Products
ADXL335BCPZ
ADXL335BCPZ-RL
ADXL335BCPZ-RL7
Oct 17, 2013
- 13_0021
Qualification of Second Source Supplier for Seal Glass on Capped iMEMS Devices
ADXL335BCPZ
ADXL335BCPZ-RL
ADXL335BCPZ-RL7
Apr 20, 2010
- 09_0249
Addition of Advanced Semiconductor Engineering (ASE) Korea as an alternate source and transfer to ASE for the LFCSP package
ADXL335BCPZ
ADXL335BCPZ-RL
ADXL335BCPZ-RL7
Mar 22, 2010
- 10_0037
Minor metal mask revision on XL335 ASIC
ADXL335BCPZ
ADXL335BCPZ-RL
ADXL335BCPZ-RL7
Mar 19, 2009
- 08_0150
ADXL335 and ADXL345 family of parts, Capping Process Transfer
ADXL335BCPZ
ADXL335BCPZ-RL
ADXL335BCPZ-RL7
Mar 19, 2009
- 09_0037
ADXL335 and ADXL345 Sensor Release Process Transfer
Evaluation Kits 1

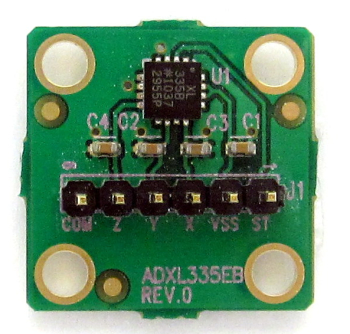

EVAL-ADXL335
ADXL335 Breakout Board
Product Detail
The EVAL-ADXL335Z is a simple breakout board that allows quick evaluation of the performance of the ADXL335 accelerometer. The ADXL335 is a 3-axis analog-output accelerometer with ±3 g measurement range. The small size (1" x 1") of the breakout board makes it easy to mount the accelerometer to an existing system without the need for additional hardware and with minimal effect on performance of the system and of the accelerometer.
This page contains all the information related to the EVAL-ADXL335Z including documentation, pricing, and ordering information.
