Small, Low Power, 3-Axis ±3 g Accelerometer

Overview

Features and Benefits

  • 3 axis sensing
  • Small, low-profile package
  • 4 × 4 × 1.45 mm LFCSP
  • Low power 180µA at 1.8V (typical)
  • Single-supply operation 1.8 to 3.6V
  • 10,000 g shock survival
  • Excellent temperature stability
  • BW adjustment with a single capacitor per axis
  • RoHS/WEEE lead-free compliant

Product Details

The ADXL330 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned voltage outputs, all on a single monolithic IC. The product measures acceleration with a minimum full-scale range of ±3g. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration.

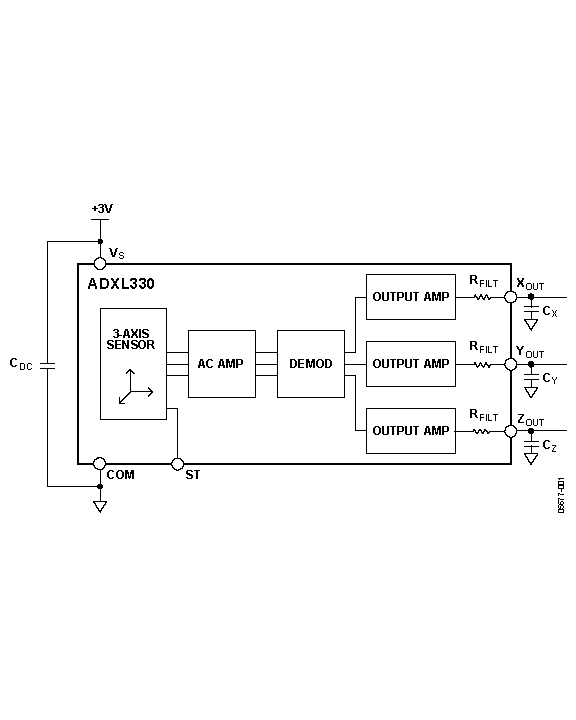

The user selects the bandwidth of the accelerometer using the Cx, CY and Cz capacitors at the XOUT, YOUT, and ZOUT pins. Bandwidths can be selected to suit the application, with a range of 0.5 Hz to 1600 Hz for X and Y axes, and a range of 0.5 Hz to 550 Hz for the Z axis.

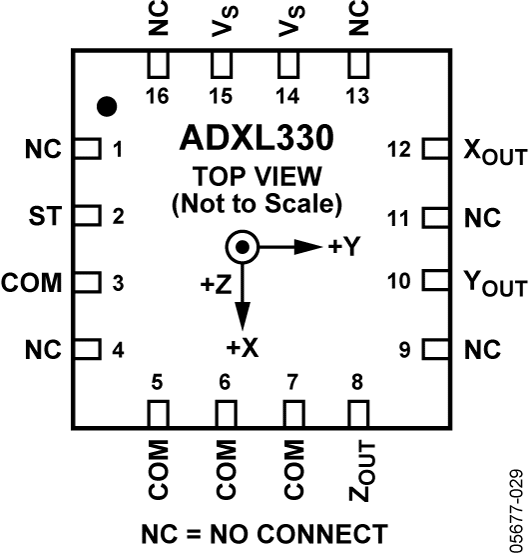

The ADXL330 is available in a small, low profile, 4 mm × 4 mm × 1.45 mm, 16-lead, plastic lead frame chip scale package (LFCSP_LQ).

APPLICATIONS

Cost-sensitive, low-power, motion- and tilt-sensing applications

  • Mobile devices
  • Gaming system
  • Disk drive protection
  • Image stabilization
  • Sports and health devices

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-not-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
