ADXL323
Small, Low Power, 2-Axis ±3g iMEMS® Accelerometer
Top
Alternative Parts
Overview
Features and Benefits
- 2-axis sensing
- Small, low-profile package 4 mm × 4 mm × 1.45 mm LFCSP_LQ
- Low power 180 µA at Vs = 1.8 V (typical)
- Single-supply operation 1.8 V to 5.25 V
- 10,000 g shock survival
- Excellent temperature stability
- BW adjustment with a single capacitor per axis
- RoHS/WEEE lead-free compliant
Product Details
The ADXL323 is a small, thin, low power, complete 2-axis accelerometer with signal-conditioned voltage outputs, all on a single, monolithic IC. The product measures acceleration with a minimum full-scale range of ±3 g. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration.

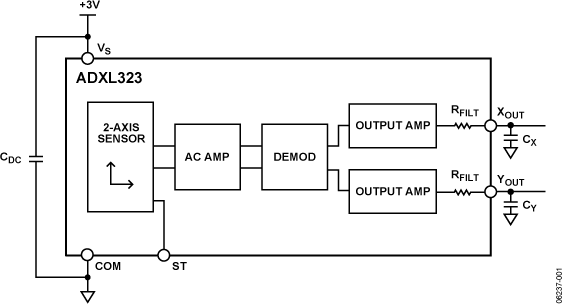

The user selects the bandwidth of the accelerometer using the CX and CY capacitors at the XOUT and YOUT pins. Bandwidths can be selected to suit the application, with a range of 0.5 Hz to 1600 Hz.
The ADXL323 is available in a small, low profile, 4 mm × 4 mm × 1.45 mm, 16-lead, plastic lead frame chip scale package (LFCSP_LQ)
APPLICATIONS
- Cost-sensitive, low power, motion- and tilt-sensing applications
- Mobile devices
- Gaming systems
- Disk drive protection
- Image stabilization
- Sports and health devices
Product Categories
Product Lifecycle
Not Recommended for New Designs
This designates products ADI does not recommend broadly for new designs.
