ADV7282
10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs and Deinterlacer
Show More
warning :
NOT RECOMMENDED FOR NEW DESIGNS
warning :
NOT RECOMMENDED FOR NEW DESIGNS
Part Details
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Part Models
4
1ku List Price
Starting From $7.06
Features
- Worldwide NTSC/PAL/SECAM color demodulation support
- One 10-bit analog-to-digital converter (ADC), 4× oversampling per channel for CVBS, Y/C, and YPrPb modes
- ADV7282: 4 analog video input channels with on-chip antialiasing filter
- ADV7282-M: 6 analog video input channels with on-chip antialiasing filter
- Video input support for CVBS (composite), Y/C (S-Video), and YPrPb (component)
- Fully differential, pseudo differential, and single-ended CVBS video input support
- NTSC/PAL/SECAM autodetection
- Up to 4 V common-mode input range solution
- Excellent common-mode noise rejection capabilities
- 5-line adaptive 2D comb filter and CTI/DNR video enhancement
- Adaptive Digital Line Length Tracking (ADLLT), signal processing, and enhanced FIFO management provide mini-time base correction (TBC) functionality
- See data sheet for additional features
Additional Details
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

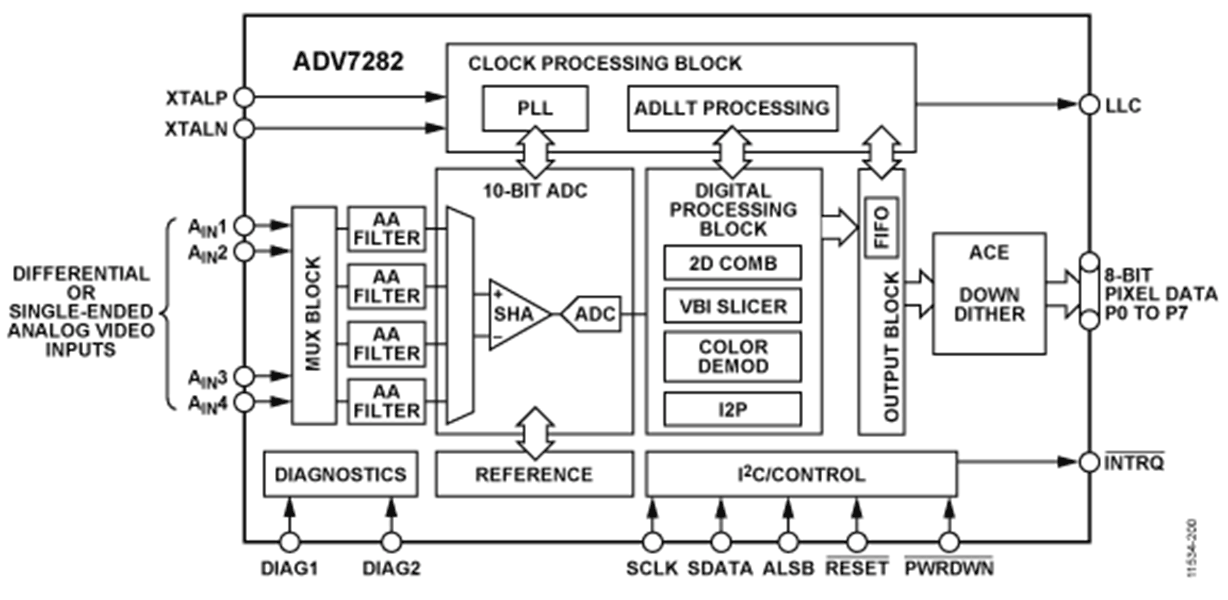

The ADV7282 / ADV7282-M are versatile one-chip, multiformat video decoders. The ADV7282 / ADV7282-M automatically detects standard analog baseband video signals compatible with worldwide NTSC, PAL, and SECAM standards in the form of composite, S-Video, and component video.
The ADV7282 converts the analog video signals into a YCrCb 4:2:2 video data stream that is compatible with the 8-bit ITU-R BT.656 interface standard.
The ADV7282-M converts the analog video signals into an 8-bit YCrCb 4:2:2 video data stream that is output over a mobile industry processor interface (MIPI®) CSI-2 interface.
The analog video inputs of the ADV7282/ADV7282-M accept single-ended, pseudo differential, and fully differential signals. The ADV7282 / ADV7282-M contain a deinterlacer (I2P converter) and short to battery detection capability with two STB diagnostic pins. The ADV7282 provides four analog inputs. The ADV7282-M provides six analog inputs and three general-purpose outputs.
The ADV7282 / ADV7282-M are programmed via a 2-wire, serial bidirectional port (I2C compatible) and is fabricated in a 1.8 V CMOS process. The LFCSP package option makes the decoder ideal for space-constrained portable applications.
Applications
- Smartphone/multimedia handsets
- Automotive infotainment
- DVRs for video security
- Media players
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Part Models
4
1ku List Price
Starting From $7.06
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADV7282
Documentation
9
Filters
1 Applied
All
-
All
-
Application Note
-
Data Sheet
-
User Guide
All
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
3
UPDATED 09/27/2013
English
ADV7282: 10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs and Deinterlacer Data Sheet (Rev.B)
Application Note
5
UPDATED 10/18/2013
English
UPDATED 10/18/2013
Chinese
AN-1260：视频解码器、 HDMI 接收器和收发器的晶振设计考虑因素
232.72 K
HTML
UPDATED 08/03/2020
English
HTML
UPDATED 08/04/2020
English
HTML
UPDATED 08/04/2020
Chinese
User Guide
1
UPDATED 05/23/2014
English
There are no results matching this criteria. Try resetting your filters or searching for a different term
Documentation
Technical Documents
5
Data Sheet 1
User Guide 1
Application Note 3
Reference Materials 1
Device Drivers 1
Design Resources 4
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADV7282WBCPZ |

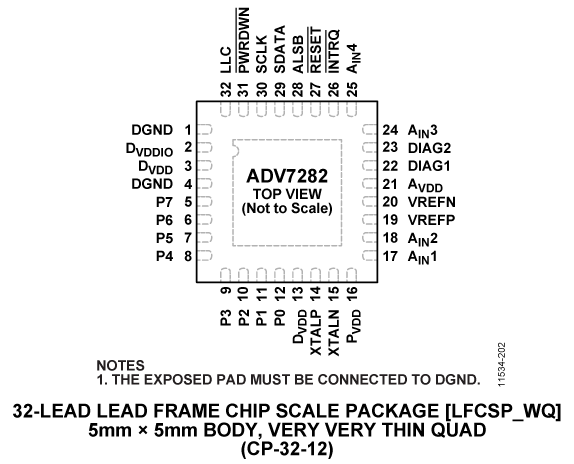

32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
|
|
|
| ADV7282WBCPZ-M |
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
|
|
|
| ADV7282WBCPZ-M-RL |
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
|
|
|
| ADV7282WBCPZ-RL |
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
|
|
- ADV7282WBCPZ
- Pin/Package Drawing
-
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADV7282WBCPZ-M
- Pin/Package Drawing
-
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADV7282WBCPZ-M-RL
- Pin/Package Drawing
-
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADV7282WBCPZ-RL
- Pin/Package Drawing
-
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
PCN/PDN Information
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 5, 2014
- 13_0303
Assembly Transfer to Amkor Philippines and Test Transfer to STATS ChipPAC China of Select 5x5 LFCSP Products
ADV7282WBCPZ
PRODUCTION
ADV7282WBCPZ-M
PRODUCTION
ADV7282WBCPZ-M-RL
PRODUCTION
ADV7282WBCPZ-RL
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 5, 2014
- 13_0303
Assembly Transfer to Amkor Philippines and Test Transfer to STATS ChipPAC China of Select 5x5 LFCSP Products
ADV7282WBCPZ
PRODUCTION
ADV7282WBCPZ-M
PRODUCTION
ADV7282WBCPZ-M-RL
PRODUCTION
ADV7282WBCPZ-RL
PRODUCTION
Software & Part Ecosystem
Software 1
Device Drivers
Looking for Evaluation Software? You can find it here
Alternative Parts 1
| Parts | Product Life Cycle | Description |
|---|---|---|
|
RECOMMENDED FOR NEW DESIGNS |
10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs |
Evaluation Kits 2
EVAL-ADV7282MEBZ
ADV7282MEBZ Evaluation Board
Product Detail

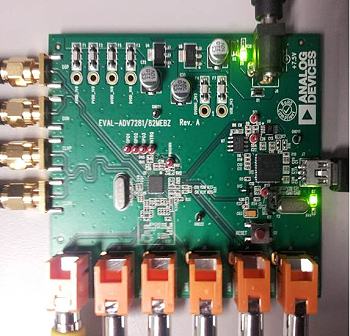

The EVAL-ADV7282MEBZ is an evaluation board for the ADV7282-M. Analog video is fed into the Video Inputs (Ain1 to Ain6). The EVAL-ADV7282MEBZ can receive analog video in a variety of formats.
EVAL-ADV7282MEBZ converts analog video into an MIPI® CSI-2 output (8-bit YCrCb 4:2:2).
he MIPI® CSI-2 output of the consists of one differential data lane (D0+ and D0-) and one differential clock lane (Clk+ and Clk-). These are output to the SMA connectors on the EVAL-ADV7282MEBZ.
EVAL-ADV7282
ADV7282EBZ Evaluation Board
Product Detail

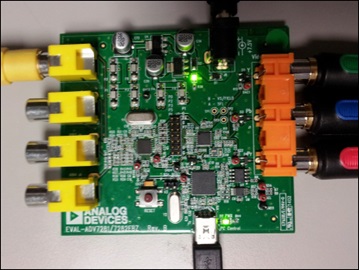

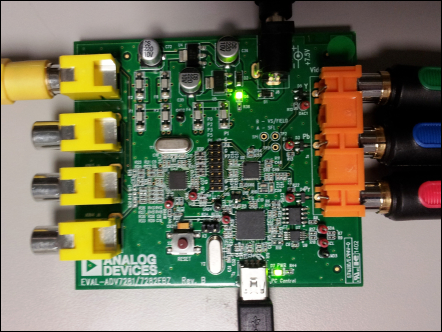

The EVAL-ADV7282EBZ is an evaluation board for the ADV7282. The EVAL-ADV7282BZ consists of an ADV7282 video decoder and an ADV7391 video encoder.
Analog video is fed into the Video Inputs (Ain1 to Ain4). The analog video from the Video Inputs is fed into the ADV7282 video decoder. The ADV7282 video decoder converts the analog video it into an 8 bit ITU656 digital stream.
The ITU656 digital output stream of the ADV7282 is fed to header J5 and into the ADV7391 video encoder. The ADV7391 video encoder converts the digital stream into an analog YPbPr output. The analog YPbPr output is fed to the Video Ouptut connectors on the EVAL-ADV7282EBZ.
