ADUM3221

Isolated 4 A Dual-Channel Gate Driver

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.D)
Documentation View All Documentation
Part Models 10
1ku List Price Starting From $1.88
Features
  • 4 A peak output current
  • Precise timing characteristics
    • 60 ns maximum isolator and driver propagation delay
    • 5 ns maximum channel-to-channel matching
  • High junction temperature operation: 125°C
  • 3.3 V to 5 V input logic
  • 7.6 V to 18 V output drive
  • Undervoltage lockout (UVLO) at 7.0 V VDD2
  • Automotive versions qualified per AEC-Q100
  • See data sheet for additional features

ADuM3221-EP supports defense and aerospace applications (AQEC standard)

  • Download ADuM3221-EP data sheet (pdf)
  • Military temperature range: −55°C to +125°C
  • Controlled manufacturing baseline
  • 1 assembly/test site
  • 1 fabrication site
  • Enhanced product change notification
  • Qualification data available on request
  • V62/16622 DSCC Drawing Number
Additional Details
show more Icon

The ADuM3220/ADuM32211 are isolated, 4 A dual-channel gate drivers based on the Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to the alternatives, such as the combination of pulse transformers and gate drivers.

The ADuM3220/ADuM3221 provide digital isolation in two independent isolation channels. They have a maximum propagation delay of 60 ns and 5 ns channel-to-channel matching. In comparison to gate drivers that employ high voltage level translation methodologies, the ADuM3220/ADuM3221 offer the benefit of true, galvanic isolation between the input and each output, enabling voltage translation across the isolation barrier. The ADuM3220 has shoot-through protection logic, which prevents both outputs from being on at the same time, whereas the ADuM3221 allows both outputs to be on at the same time. Both parts offer a default output low characteristic as required for gate drive applications.

The ADuM3220/ADuM3221 operate with an input supply voltage ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems. The outputs of the ADuM3220A/ADuM3221A can be operated at supply voltages from 4.5 V to 18 V. The outputs of the ADuM3220B/ADuM3221B can be operated at supply voltages from 7.6 V to 18 V.

The junction temperature of the ADuM3220/ADuM3221 is specified from −40°C to +125°C.

Applications

  • Isolated synchronous dc-to-dc converters
  • MOSFET/IGBT gate drivers
Show More Arrow image
file View Data Sheet (Rev.D)
Documentation View All Documentation
Part Models 10
1ku List Price Starting From $1.88
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADUM3221

Documentation

20
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Technical Articles
  • Safety and Regulatory Compliance
  • User Guide
  • Application Note
  • Informational
  • Frequently Asked Question
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

3

PDF Vector

pdf

UPDATED 01/19/2011
English

ADuM3220/ADuM3221: Isolated, 4 A Dual-Channel Gate Driver Data Sheet (Rev.D)

Open PDF File

redirect
669 kB
download

Download PDF

PDF Vector

PDF

UPDATED 07/11/2016
English

ADuM3221-EP: Enhanced Product Data Sheet (Rev.0)

Open PDF File

redirect
676.98 K
download

Download PDF

PDF Vector

PDF

UPDATED 10/04/2016
English

ADuM3221-DSCC: Military Data Sheet

Open PDF File

redirect
download

Download PDF

Technical Articles

2

PDF Vector

pdf

UPDATED 12/10/2010
English
NAppkin Note: Lowering the Power of the ADuM524x redirect icon

223 kB

download

Download PDF

PDF Vector

pdf

UPDATED 12/10/2010
English
Inside iCoupler® Technology:ADuM347x PWM Controller and Transformer Driver with Quad-Channel Isolators Design Summary redirect icon

291 kB

download

Download PDF

Safety and Regulatory Compliance

2

PDF Vector

HTML

UPDATED 01/28/2016
English
Safety and Regulatory Compliance Information redirect icon

PDF Vector

HTML

UPDATED 01/28/2016
Japanese
安全規格認証や適合の取得状況 redirect icon

User Guide

1

PDF Vector

pdf

UPDATED 02/09/2011
English

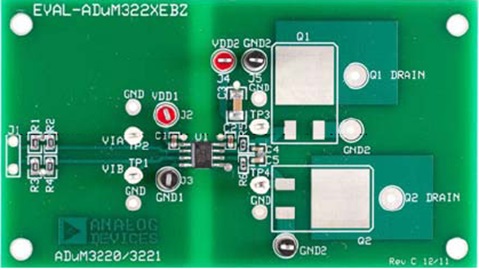

UG-217: iCoupler ADuM322XEBZ, 4 A Output-Isolated Gate Driver Evaluation Board redirect icon
