ADUM3220

4 A Dual-Channel Gate Driver

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.D)
Documentation View All Documentation
Part Models 8
1ku List Price Starting From $1.88
Features
  • 4 A peak output current
  • Precise timing characteristics
    • 60 ns maximum isolator and driver propagation delay
    • 5 ns maximum channel to channel matching
  • High junction temperature operation: 125°C
  • 3.3 V to 5 V input logic
  • 7.6 V to 18 V output drive
  • Undervoltage lockout (UVLO) at 7.0 V VDD2
  • Thermal shutdown protection at >150°C
  • Default low output
  • High frequency operation: dc to 1 MHz
  • CMOS input logic levels
  • High common-mode transient immunity: 25 kV/μs
  • Automotive versions qualified per AEC-Q100
  • See data sheet for additional features
Additional Details
show more Icon

The ADuM3220/ADuM32211 are isolated, 4 A dual-channel gate drivers based on the Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to the alternatives, such as the combination of pulse transformers and gate drivers.

The ADuM3220/ADuM3221 provide digital isolation in two independent isolation channels. They have a maximum propagation delay of 60 ns and 5 ns channel-to-channel matching. In comparison to gate drivers that employ high voltage level translation methodologies, the ADuM3220/ADuM3221 offer the benefit of true, galvanic isolation between the input and each output, enabling voltage translation across the isolation barrier. The ADuM3220 has shoot-through protection logic, which prevents both outputs from being on at the same time, whereas the ADuM3221 allows both outputs to be on at the same time. Both parts offer a default output low characteristic as required for gate drive applications.

The ADuM3220/ADuM3221 operate with an input supply voltage ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems. The outputs of the ADuM3220A/ADuM3221A can be operated at supply voltages from 4.5 V to 18 V. The outputs of the ADuM3220B/ADuM3221B can be operated at supply voltages from 7.6 V to 18 V.

The junction temperature of the ADuM3220/ADuM3221 is specified from −40°C to +125°C.

Applications

  • Isolated synchronous dc-to-dc converters
  • MOSFET/IGBT gate drivers
Show More Arrow image
file View Data Sheet (Rev.D)
Documentation View All Documentation
Part Models 8
1ku List Price Starting From $1.88
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADUM3220

Documentation

35
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Informational
  • Data Sheet
  • User Guide
  • Application Note
  • Safety and Regulatory Compliance
  • Technical Articles
  • Frequently Asked Question
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

pdf

UPDATED 01/19/2011
English

ADuM3220/ADuM3221: Isolated, 4 A Dual-Channel Gate Driver Data Sheet (Rev.D)

Open PDF File

redirect
669 kB
download

Download PDF

Informational

2

PDF Vector

URL

UPDATED 03/03/2022
English
Overcoming Limitations of Optocoupler and High Voltage Gate Driver Solutions redirect icon

PDF Vector

URL

UPDATED 02/12/2015
Japanese
iCoupler 絶縁型ゲート・ドライバでフォトカプラ・ソリューションと高電圧ゲート・ドライバ・ソリューションの制約を克服 redirect icon

User Guide

1

PDF Vector

pdf

UPDATED 02/09/2011
English
UG-217: iCoupler ADuM322XEBZ, 4 A Output-Isolated Gate Driver Evaluation Board redirect icon

148 kB

download

Download PDF

Application Note

21

PDF Vector

pdf

UPDATED 06/20/2007
English
AN-913: Isolating I2C Interfaces (Rev.0) redirect icon

280 kB

download

Download PDF

PDF Vector

pdf

UPDATED 06/20/2007
Chinese
AN-913: I²C 接口的隔离 (Rev.0) redirect icon

308 kB

download

Download PDF

PDF Vector

pdf

UPDATED 06/20/2007
Japanese
AN-913: I²Cインターフェースのアイソレーション (Rev.0) redirect icon

365 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
English
AN-770: iCoupler® Isolation in CAN Bus Applications (Rev.0) redirect icon

234 kB

download

Download PDF

PDF Vector

pdf

UPDATED 01/31/2011
Chinese
AN-770: CAN总线应用中的iCoupler®隔离 (Rev.0) redirect icon

362 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
Japanese
AN-770: iCoupler®絶縁のCANバスでの応用 (Rev.0) redirect icon

291 kB

download

Download PDF

PDF Vector

PDF

UPDATED 11/01/2006
English
AN-740: iCoupler® Isolation in RS-232 Applications (Rev.A) redirect icon

218.29 K

download

Download PDF

PDF Vector

pdf

UPDATED 08/31/2010
Chinese
AN-740: RS-232应用中的iCoupler® 隔离 (Rev.0) redirect icon

494 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/09/2010
Japanese
AN-740: RS-232アプリケーションでのiCoupler®アイソレーション (Rev.0) redirect icon

560 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
English
AN-727: iCoupler® Isolation in RS-485 Applications (Rev.0) redirect icon

282 kB

download

Download PDF

PDF Vector

pdf

UPDATED 07/26/2010
Chinese
AN-727: RS-485应用中的iCoupler®隔离 (Rev.0) redirect icon

373 kB

download

Download PDF

PDF Vector

pdf

UPDATED 02/21/2011
Japanese
AN-727: RS-485アプリケーションでのiCoupler®アイソレータ (Rev.0) redirect icon

756 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
English
AN-793: ESD/Latch-Up Considerations with iCoupler® Isolation Products (Rev.A) redirect icon

246 kB

download

Download PDF

PDF Vector

pdf

UPDATED 01/31/2011
Chinese
AN-793: iCoupler®隔离产品的ESD/闩锁考虑因素 (Rev.A) redirect icon

500 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
Japanese
AN-793: iCoupler®アイソレータ製品のESD / ラッチアップに関する考慮事項 (Rev.0) redirect icon

331 kB

download

Download PDF

PDF Vector

HTML

UPDATED 11/22/2023
English
AN-913: Isolating I2C Interfaces redirect icon

PDF Vector

HTML

UPDATED 11/22/2023
Chinese
AN-913: Isolating I2C Interfaces redirect icon

PDF Vector

HTML

UPDATED 11/22/2023
Japanese
AN-913: I2Cインターフェースのアイソレーション redirect icon

PDF Vector

HTML

UPDATED 07/03/2020
English
AN-0971: Recommendations for Control of Radiated Emissions with isoPower Devices redirect icon

PDF Vector

HTML

UPDATED 07/03/2020
Chinese
AN-0971: isoPower器件的辐射控制建议 redirect icon

PDF Vector

HTML

UPDATED 07/03/2020
Japanese
AN-0971：isoPower デバイスでの EMI 放射制御についての推奨事項 redirect icon

Safety and Regulatory Compliance

2

PDF Vector

HTML

UPDATED 01/28/2016
English
Safety and Regulatory Compliance Information redirect icon

PDF Vector

HTML

UPDATED 01/28/2016
Japanese
安全規格認証や適合の取得状況 redirect icon

Technical Articles

7

PDF Vector

pdf

UPDATED 12/16/2011
English
ADuM3220 4A Gate Driver for Synchronous DC/DC Conversion redirect icon

346 kB

download

Download PDF

PDF Vector

pdf

UPDATED 12/10/2010
English
NAppkin Note: Lowering the Power of the ADuM524x redirect icon

223 kB

download

Download PDF

PDF Vector

pdf

UPDATED 12/10/2010
English
Inside iCoupler® Technology:ADuM347x PWM Controller and Transformer Driver with Quad-Channel Isolators Design Summary redirect icon

291 kB

download

Download PDF

PDF Vector

pdf

UPDATED 03/13/2011
English
Inside iCoupler® Technology: Driving an H Bridge with ADuM3220 Isolated Gate Drivers redirect icon

140 kB

download

Download PDF

PDF Vector

pdf

UPDATED 03/13/2011
Japanese
Inside iCoupler® Technology: ADuM3220 絶縁型ゲート・ドライバによるH ブリッジの駆動 redirect icon

PDF Vector

URL

UPDATED 09/28/2006
English
Medical Devices Demand Stringent Isolation Techniques redirect icon

PDF Vector

URL

UPDATED 09/08/2010
Chinese
医疗设备要求严格的隔离技术 redirect icon

Frequently Asked Question

1

PDF Vector

HTML

UPDATED 12/07/2014
English
FAQ redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Technical Documents 17
show more Icon

Data Sheet 1

ADuM3220/ADuM3221: Isolated, 4 A Dual-Channel Gate Driver Data Sheet (Rev.D)

User Guide 1

UG-217: iCoupler ADuM322XEBZ, 4 A Output-Isolated Gate Driver Evaluation Board

Application Note 7

AN-913: Isolating I2C Interfaces (Rev.0)
AN-770: iCoupler® Isolation in CAN Bus Applications (Rev.0)
AN-740: iCoupler® Isolation in RS-232 Applications (Rev.A)
AN-727: iCoupler® Isolation in RS-485 Applications (Rev.0)
AN-793: ESD/Latch-Up Considerations with iCoupler® Isolation Products (Rev.A)
AN-913: Isolating I2C Interfaces
AN-0971: Recommendations for Control of Radiated Emissions with isoPower Devices

Technical Articles 5

ADuM3220 4A Gate Driver for Synchronous DC/DC Conversion
NAppkin Note: Lowering the Power of the ADuM524x
Inside iCoupler® Technology:ADuM347x PWM Controller and Transformer Driver with Quad-Channel Isolators Design Summary
Inside iCoupler® Technology: Driving an H Bridge with ADuM3220 Isolated Gate Drivers
Medical Devices Demand Stringent Isolation Techniques

Informational 1

Safety and Regulatory Compliance 1

Safety and Regulatory Compliance Information

Frequently Asked Question 1

FAQ

Safety and Regulatory Compliance 1

Safety and Regulatory Compliance Information

Product Selection Guide 2

Automotive Grade Digital Isolators - ADuM120xW/ADuM130xW/ADuM140xW (2008)
Digital Isolation and Interface Technology Selection Guide

Video Series 1

Fundamentals of Isolated Gate Drivers

Webcast 1

Solving Isolation Challenges in Power Conversion Applications

Video

2

Thumbnail Image

Video

2011-01-20

03:06

ADuM322x: iCoupler®, Dual Channel Gate Driver

Learn More
Thumbnail Image

Video

2020-10-28

01:00

Protect your Innovations: from High Precision to High Power

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADUM3220ARZ 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM3220ARZ-RL7 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM3220BRZ 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM3220BRZ-RL7 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM3220WARZ 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM3220WARZ-RL7 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM3220WBRZ 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM3220WBRZ-RL7 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 13, 2024

- 23_0069

Qualification Notification of Alternate Wafer Fab Site at ADI Limerick for Select Isolator Products

ADUM3220ARZ

PRODUCTION

ADUM3220ARZ-RL7

PRODUCTION

ADUM3220BRZ

PRODUCTION

ADUM3220BRZ-RL7

PRODUCTION

ADUM3220WARZ

PRODUCTION

ADUM3220WARZ-RL7

PRODUCTION

ADUM3220WBRZ

PRODUCTION

ADUM3220WBRZ-RL7

PRODUCTION

pdf

PCN23_0069_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

pdf

Qualification Results Summary

external-icon

Sep 22, 2015

- 15_0135

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM3220ARZ

PRODUCTION

ADUM3220ARZ-RL7

PRODUCTION

ADUM3220BRZ

PRODUCTION

ADUM3220BRZ-RL7

PRODUCTION

pdf

PCN15_0135_Form

external-icon

xls

Material_Report

Download

Detailed Change Description

pdf

Qualification Results Summary

external-icon

Feb 27, 2012

- 11_0066

Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.

ADUM3220ARZ

PRODUCTION

ADUM3220ARZ-RL7

PRODUCTION

ADUM3220BRZ

PRODUCTION

ADUM3220BRZ-RL7

PRODUCTION

pdf

PCN11_0066_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Plan Summary

external-icon

pdf

Flow Chart

external-icon

Dec 15, 2015

- 15_0135

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM3220WARZ

PRODUCTION

ADUM3220WARZ-RL7

PRODUCTION

ADUM3220WBRZ

PRODUCTION

ADUM3220WBRZ-RL7

PRODUCTION

pdf

PCN15_0135_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

Detailed Change Description

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 13, 2024

- 23_0069

arrow down

Qualification Notification of Alternate Wafer Fab Site at ADI Limerick for Select Isolator Products

ADUM3220ARZ

PRODUCTION

ADUM3220ARZ-RL7

PRODUCTION

ADUM3220BRZ

PRODUCTION

ADUM3220BRZ-RL7

PRODUCTION

ADUM3220WARZ

PRODUCTION

ADUM3220WARZ-RL7

PRODUCTION

ADUM3220WBRZ

PRODUCTION

ADUM3220WBRZ-RL7

PRODUCTION

pdf

PCN23_0069_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

pdf

Qualification Results Summary

external-icon
Sep 22, 2015

- 15_0135

arrow down

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM3220ARZ

PRODUCTION

ADUM3220ARZ-RL7

PRODUCTION

ADUM3220BRZ

PRODUCTION

ADUM3220BRZ-RL7

PRODUCTION

pdf

PCN15_0135_Form

external-icon

xls

Material_Report

Download
Detailed Change Description

pdf

Qualification Results Summary

external-icon
Feb 27, 2012

- 11_0066

arrow down

Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.

ADUM3220ARZ

PRODUCTION

ADUM3220ARZ-RL7

PRODUCTION

ADUM3220BRZ

PRODUCTION

ADUM3220BRZ-RL7

PRODUCTION

pdf

PCN11_0066_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Plan Summary

external-icon

pdf

Flow Chart

external-icon
Dec 15, 2015

- 15_0135

arrow down

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM3220WARZ

PRODUCTION

ADUM3220WARZ-RL7

PRODUCTION

ADUM3220WBRZ

PRODUCTION

ADUM3220WBRZ-RL7

PRODUCTION

pdf

PCN15_0135_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon
Detailed Change Description

pdf

Qualification Results Summary

external-icon
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-ADUM3220

EVAL-ADUM3221: ADuM3220/ADuM3221 Evaluation Board

zoom

EVAL-ADUM3220

EVAL-ADUM3221: ADuM3220/ADuM3221 Evaluation Board

download icon

Download

 print icon

Print
EVAL-ADUM3220
EVAL-ADUM3221: ADuM3220/ADuM3221 Evaluation Board
Buy Now View Details

Product Detail

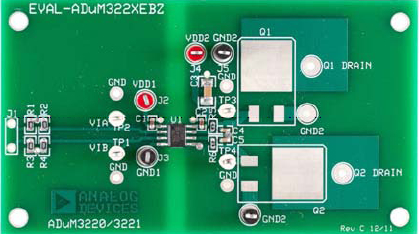

The EVAL-ADuM3221EBZ supports the ADuM3220/ ADuM3221 isolated gate drivers. It is compatible with IGBT/ MOSFETs in TO-263 or TO-252 packages. The evaluation board is ideal for evaluating the ADuM322x family with different power devices. It comes with an ADuM3221A installed.

,

The EVAL-ADuM3221EBZ supports the ADuM3220/ ADuM3221 isolated gate drivers. It is compatible with IGBT/ MOSFETs in TO-263 or TO-252 packages. The evaluation board is ideal for evaluating the ADuM322xThe EVAL-ADuM3221EBZ supports the ADuM3220/ ADuM3221 isolated gate drivers. It is compatible with IGBT/ MOSFETs in TO-263 or TO-252 packages. The evaluation board is ideal for evaluating the ADuM322xThe EVAL-ADuM3221EBZ supports the ADuM3220/ ADuM3221 isolated gate drivers. It is compatible with IGBT/ MOSFETs in TO-263 or TO-252 packages. The evaluation board is ideal for evaluating the ADuM322xThe EVAL-ADuM3221EBZ supports the ADuM3220/ ADuM3221 isolated gate drivers. It is compatible with IGBT/ MOSFETs in TO-263 or TO-252 packages. The evaluation board is ideal for evaluating the ADuM322x

Evaluation Kits1

evaluation kit item images

EVAL-ADUM3220

EVAL-ADUM3221: ADuM3220/ADuM3221 Evaluation Board

Recently Viewed

Part Details
Documentation
Evaluation Kit
Latest Discussions
