ADUC824
Precision Analog Microcontroller: 1MIPS 8052 MCU + 8kB Flash + 16/24-Bit ADC + 12-Bit DAC
Top
Overview
Features and Benefits
- 2-Channel, Differential Input, Programmable Gain, Self-Calibrating, 24-Bit Primary ADC
- 3-Channel, Single-Ended Input, Self Calibrating, 16-Bit Auxiliary ADC
- Single 12-Bit Rail-to-Rail Voltage-Output DAC
- Industry Standard 8052 Microcontroller
- 8K-Byte In-Circuit Re-Programmable Flash Program Memory
- Precision Temperature Sensor
- 640-Byte Read/Write Accessible Non-Volatile Flash Data Memory
- Programmable PLL Clock & Low
Power Operating Modes - Voltage Reference, Serial Interface Ports, Watchdog Timer, Power
Supply Monitor, etc - Embedded Download/Debug &
Emulation Features

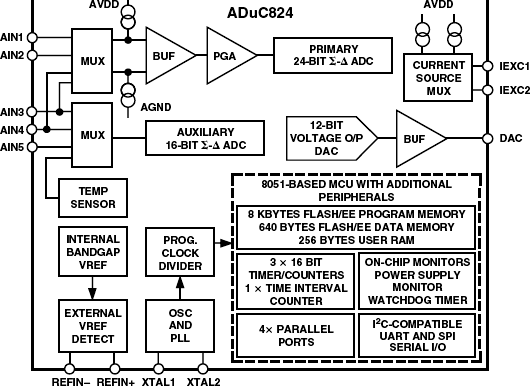

Product Details
The ADuC824 MicroConverter® is a fully integrated 24-bit data acquisition system-on-a-chip. Like all of ADI's MicroConverter products, it features precision A/D & D/A conversion and a Flash microcontroller on a single chip.
The ADuC824 is 100% backward compatible (hardware and software) with the ADuC816. It is available in 52-pin PQFP or 56-pin CSP packages and operates on a 3V or 5V power supply.
