Overview

Features and Benefits

  • 10-bit temperature-to-digital converter
  • 10-bit 8-channel ADC
    • DC input bandwidth
    • Input range: 0 V to 2.25 V and 0 V to VDD
  • Temperature range: −40°C to +120°C
  • Temperature sensor accuracy of ±0.5°C
  • Supply range: 2.7 V to 5.5 V
  • Power-down current : <10 μA
  • Internal 2.25 VREF option
  • Double-buffered input logic
  • I2C, SPI, QSPI™, MICROWIRE™, and DSP compatible
  • 4-wire serial interface
  • SMBus packet error checking (PEC) compatible

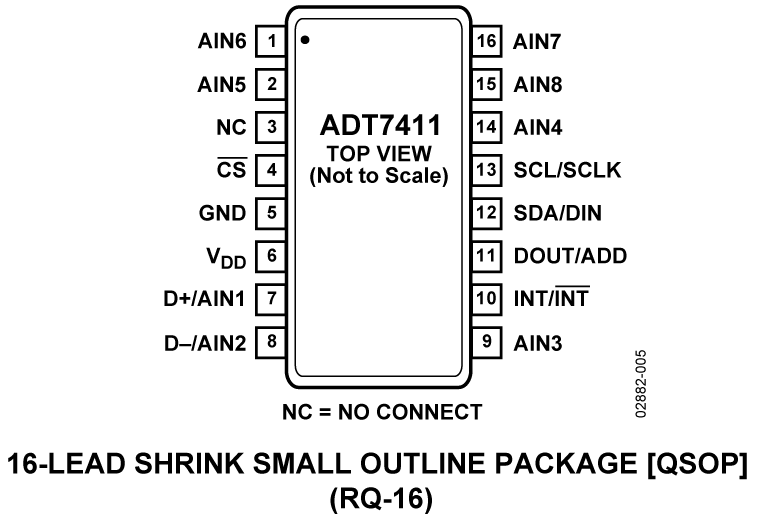

  • 16-lead QSOP

Product Details

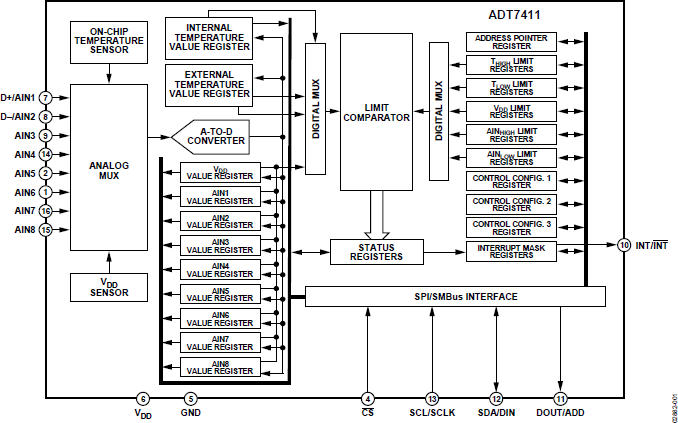

The ADT7411 combines a 10-bit temperature-to-digital converter and a 10-bit 8-channel ADC in a 16-lead QSOP. This includes a band gap temperature sensor and a 10-bit ADC to monitor and digitize the temperature reading to a resolution of 0.25°C. The ADT7411 operates from a single 2.7 V to 5.5 V supply. The input voltage on the ADC channels has a range of 0 V to 2.25 V and the input bandwidth is dc. The reference for the ADC channels is derived internally. The ADT7411 provides two serial interface options: a 4-wire serial interface compatible with SPI, QSPI, MICROWIRE, and DSP interface standards, and a 2-wire SMBus/I2C interface. It features a standby mode that is controlled via the serial interface.

The ADT7411’s wide supply voltage range, low supply current, and SPI-/I2C-compatible interface make it ideal for a variety of applications, including PCs, office equipment, and domestic appliances.

Applications

  • Portable battery-powered instruments
  • PCs
  • Smart battery chargers
  • Telecommunications systems electronic test equipment
  • Domestic appliances
  • Process controls

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
