ADSP-SC598
Up to 1 GHz Dual-SHARC+ DSP w/ Integrated Arm® Cortex®-A55
Show More
Not the part you were looking for?
3
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Dual-enhanced SHARC+ high performance floating-point cores
- Up to 1000 MHz per SHARC+ core
- 5 Mb (640 kB) L1 SRAM memory per core with parity (optional ability to configure as cache)
- 32-bit, 40-bit, and 64-bit floating-point support
- 32-bit fixed point
- Byte, short word, word, long word addressed
- Arm Cortex-A55 core
- Up to 1200 MHz/3360 DMIPS with advanced SIMD and floating-point support
- 32 kB L1 instruction cache with parity/32 kB L1 data cache with ECC
- 256 kB L2 cache with ECC
- Powerful DMA system with 8 MemDMAs
- On-chip memory protection
- Integrated safety features
- 17 mm × 17 mm, 400-ball BGA_ED (0.8 mm pitch), RoHS compliant
- Low system power across automotive temperature range
- Memory
- Large (up to 2 MB) on-chip L2 SRAM with ECC protection
- One L3 interface optimized for low system power, providing 16-bit interface to DDR3/DDR3L devices
- Additional Features
- Security and Protection
- Cryptographic hardware accelerators
- Fast secure boot with IP protection
- Supports Arm TrustZone and cryptographic extension
- Accelerators
- FIR, IIR offload engines
- AEC-Q100 qualified for automotive applications
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
Reaching speeds of up to 1 GHz, the ADSP-SC598/SC596/SC595 processors are members of the ADSP-SC59x SHARC® family of products. Containing the same dual-SHARC+® DSP core architecture as the ADSP-SC594/SC592/SC591, these processors upgrade the integrated Arm core to a Cortex-A55 running at up to 1.2 GHz. The A55 processor, with FPU and Neon® DSP extensions, handles additional real-time processing tasks and manages peripherals used to interface to time-critical data in audio applications. These interfaces include Gigabit Ethernet, USB High-Speed, CAN FD, and a rich variety of other connectivity options for a flexible and simplified system design.
The ADSP-SC59x SHARC processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices, Inc., Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). New additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.
By integrating a rich set of industry-leading system peripherals and memory (see Table 1 in the data sheet), the SHARC+ processor is the platform of choice for applications that require programmability similar to reduced instruction set computing (RISC), multimedia support, and leading edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.
Applications
- Automotive:
- audio amplifier, head unit, ANC/RNC, rear seat entertainment, digital cockpit, ADAS
- Consumer & Professional Audio:
- speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays, headphones
3
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADSP-SC598
Documentation
Filters
1 Applied
-
All
-
Application Note
-
Processor Manual
-
Informational
-
Data Sheet
-
Integrated Circuit Anomaly
-
All
-
English
Data Sheet
1
Application Note
14
Processor Manual
2
Informational
1
HTML
Integrated Circuit Anomaly
1
Documentation
Data Sheet 1
Application Note 14
EE-441: ADSP-SC596/SC598 Board Design Guidelines for Dynamic Memory Controller (Rev.1)
EE-433: Estimating Power for ADSP-2159x/SC59x SHARC+ Processors
EE-434: ADSP-2159x/SC59x Board Design Guidelines for Dynamic Memory Controller
EE-443: ADSP-SC595/SC596/SC598 Programming Guidelines for Dynamic Memory Controller
EE-436: Using ADSP-SC59x/2159x High Performance FIR/IIR Accelerators (Rev.2)
EE-437: OSPI PHY Configuration and Training (Rev.1)
EE-430: Migrating from ADSP-2156x to ADSP-SC59x Processors
EE-451: ADSP-SC596/SC598 Processor Thermal Guidelines (Rev.1)
EE-432: Boot Time Estimation for ADSP-SC59x/ADSP-2159x SHARC+ Processors
EE-448: Safe Power-down Mechanisms for Digital Processors
EE-440: Estimating Power for SC596/SC598 SHARC+ Processors
EE-438: Boot Time Estimation for ADSP-SC598 SHARC+ Processors
EE-445: ADSP-SC59x SHARC+ Processor System Optimization Techniques
EE-444: Guidelines For Optimal Use Of eMSI on ADSP-SC598 SHARC+ Processor Family
Processor Manual 2
Integrated Circuit Anomaly 1
Informational 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADSP-SC598BBPZ10 |
400-Ball BGA_ED (17mm x 17mm x 1.649mm)
|
|
|
| ADSP-SC598BBPZ8 |
400-Ball BGA_ED (17mm x 17mm x 1.649mm)
|
|
|
| ADSP-SC598KBPZ10 |
400-Ball BGA_ED (17mm x 17mm x 1.649mm)
|
|
|
| ADSP-SC598KBPZ8 |
400-Ball BGA_ED (17mm x 17mm x 1.649mm)
|
|
- ADSP-SC598BBPZ10
- Pin/Package Drawing
-
400-Ball BGA_ED (17mm x 17mm x 1.649mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADSP-SC598BBPZ8
- Pin/Package Drawing
-
400-Ball BGA_ED (17mm x 17mm x 1.649mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADSP-SC598KBPZ10
- Pin/Package Drawing
-
400-Ball BGA_ED (17mm x 17mm x 1.649mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADSP-SC598KBPZ8
- Pin/Package Drawing
-
400-Ball BGA_ED (17mm x 17mm x 1.649mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
Middleware
Software Development Tools
CrossCore® Utilities
CrossCore Utilities provides several utilities for use with Cortex-M processors. These utilities have previously been distributed within various Board Support Packages for the IAR and Keil toolchains, and are collected together in this product for convenient maintenance.
CrossCore® Embedded Studio
CCES is a world-class integrated development environment (IDE) for the ADI Blackfin®, SHARC® and Arm® processor families.
SigmaStudio®+
Looking for Evaluation Software? You can find it here
Evaluation Kits 1
EV-SC598-SOM
System-on-Module (SOM) Board to Evaluate the ADSP-SC596/8 SHARC+® Audio Processors
Features and Benefits
- ADSP-SC598 Dual-SHARC+ Audio Processor w/Integrated Arm® Cortex®-A55
- 4Gb DDR3 (933 MHz)
- 512 Mb Quad SPI Flash Memory
- 8 GB eMMC
- Power Solution Based on LT Components
- FTDI USB-to-UART
- USB 3.0 Power Delivery
- Debug Interface (JTAG, Requires In-Circuit Emulator and Full CCES License)
- SOM Interface Connector
- CCES Kit License (When Used with Supported Carrier Board)
Product Detail

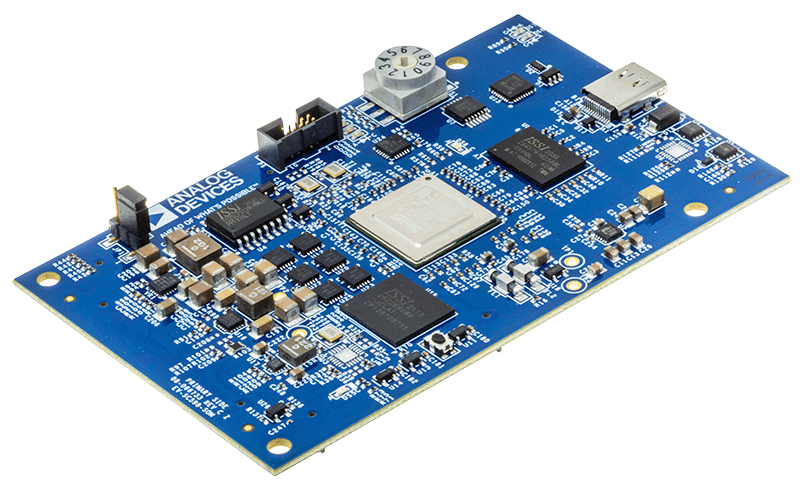

The EV-SC598-SOM enables evaluation and rapid prototyping of designs featuring the ADSP-SC59x Family (ADSP-SC596/ADSP-SC598) of SHARC audio processors. It provides an easy-to-use plug-n-play reference design with expansion capabilities to interface to custom hardware ahead of the release of the processor itself. When the EV-SC598-SOM board is plugged into the EV-SOMCRR-EZKIT or EV-SOMCRR-EZLITE carrier board, the resulting EZ-KIT® evaluation system can be used for fast and easy evaluation of the processor core and system peripherals/interfaces.
The EV-SC598-SOM enables rapid prototyping for a wide range of applications, including immersive 3D sound and personal audio zones (PAZ), automotive active and road noise cancellation (ANC/RNC), voice-based user-interfaces and in-car communications (ICC), engine sound synthesis (ESS) and electric vehicle warning sound systems (EVWSS/AVAS). Additional applications include professional audio and soundbars / home AVRs (with 3D Object and Multi-Channel Audio) and enhanced conferencing systems. ADI offers several software modules (e.g., AEC/NR, microphone beamforming, pitch shifting, harmonic generators, wave players etc.), as well as complete software solutions that can be licensed, where users can develop/evaluate their audio and voice processing applications. ADI also offers 3rd party surround sound solutions that can be licensed on ADI’s SHARC processor families. Please visit ADI’s Software Solutions page for more information.
The EV-SC598-SOM module utilizes the CrossCore® Embedded Studio (CCES) development tools to enable developers to achieve faster time to market. The development environment aids advanced application code development and debug, such as:
- Create, compile, assemble, and link application programs written in C++, C, and assembly
- Load, run, step, halt, and set breakpoints in application programs
- Read and write data and program memory
- Read and write core and peripheral registers
Resources
Tools & Simulations 3
Thermal Models 1
Thermal Models
BSDL Model File 1
IBIS Model 1
