ADSP-2184

NOT RECOMMENDED FOR NEW DESIGNS

ADSP-2184

16-bit, 40 MIPS, 5v, 2 serial ports, host port, 20KB RAM

NOT RECOMMENDED FOR NEW DESIGNS

Part Details

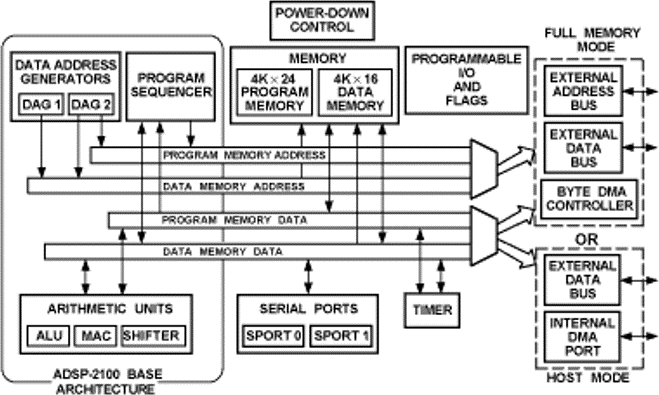

ADSP-2184 Functional Block Diagram slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Features

25 ns instruction cycle time (40 MIPS)
4K words of on-chip program RAM
4K words of on-chip data memory RAM
16-bit internal DMA port for high speed access to on-chip memory
8-bit DMA port to byte memory for transparent program and data memory transfers

Byte memory interface for storage of data tables and program overlays
Programmable memory strobe and separate I/O memory space permits "glueless" system
ADSP-2100 Family code and function compatible
100-lead LQFP
1.4 mA/MIPS

Additional Details

The ADSP-2184 is a member of the ADSP-218x family. The ADSP-2184 is the lowest cost pin compatible device in the ADSP-218x family. It can be designed into systems the same way as all other ADSP-2100 devices. All previous ADSP-2100 code is code compatible to the ADSP-2184.

The ADSP-2184 combines the ADSP-2100 family base architecture (three computational units, data address generators and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, and extensive interrupt capabilities.

BENEFITS

Algebraic assembly language supports C language-style constructs for easy programming
100-lead LQFP package provides for space and power savings (16mm x 16mm)
On-chip RAM and 4 DMA ports make reprogramming easy
16-bit DMA port makes bus interfacing easier
5 sleep and power-down modes maximize battery life

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Documentation

Technical Documents 76

ADSP-2184: DSP Microcomputer Data Sheet (Rev.0) 02/07/2008

Documentation Errata

EE-133: Converting From Legacy Architecture Files To Linker Description Files for the ADSP-218x 09/11/2002

AN-334: Digital Signal Processing Techniques 03/08/2008

EE-156: Support for the H.100 protocol on the ADSP-2191 (Rev.0.1) 09/06/2002

EE-168: Using Third Overtone Crystals with the ADSP-218x DSP 10/14/2002

EE-2: Using ADSP-218x I/O Space 09/06/2002

EE-152: Using Software Overlays with the ADSP-219x and VisualDSP 2.0++ 09/11/2002

EE-152 Software Code

EE-261: Understanding Jitter Requirements of PLL-Based Processors (Rev.1) 02/15/2005

EE-188: Using C To Implement Interrupt-Driven Systems On ADSP-219x DSPs 05/02/2003

EE-90: Using the 21xx C-FFT Library 09/10/2002

EE-35: Troubleshooting your ADSP-218x EZ-ICE 10/26/2007

EE-82: Using an ADSP-2181 DSP's IO Space to IDMA Boot Another ADSP-2181 09/10/2002

EE-145: SPI Booting of the ADSP-2191 using the Atmel AD25020N on an EZ-KIT Lite Evaluation Board 09/12/2002

Associated Reference Code for EE-145

EE-103: Performing Level Conversion Between 5v and 3.3v IC's 11/04/1999

EE-64: Setting Mode Pins on Reset 09/10/2002

EE-60: Simulating an RS-232 UART Using the Synchronous Serial Ports on the ADSP-21xx Family DSPs 09/09/2002

EE-121: Porting Code from ADSP-21xx to ADSP-219x 09/11/2002

EE-33: Programming The ADSP-21xx Timer In C 09/09/2002

EE-33 Software Code

EE-104: Setting Up Streams with the VisualDSP Debugger 11/05/1999

EE-104 Software Code

AN-227: Digital Control System Design with the ADSP-2100 Family 01/01/2000

EE-123: An Overview of the ADSP-219x Pipeline 09/11/2002

EE-11: ADSP-2181 Priority Chain & IDMA Holdoffs 09/06/2002

EE-153: ADSP-2191 Programmable PLL 09/06/2002

EE-122: Coding for Performance on the ADSP-219x 09/11/2002

EE-06: ADSP-21xx Serial Port Startup Issues 09/06/2002

EE-124: Booting up the ADSP-2192 09/11/2002

EE-74: Analog Devices Serial Port Development and Troubleshooting Guide 11/04/1999

EE-68: Analog Devices JTAG Emulation Technical Reference (Rev.10) 12/20/2002

EE-227: CAN Configuration Procedure for ADSP-21992 DSPs (Rev.1) 01/26/2004

AN-524: ADV601/ADV611 Bin Width Calculation in ADSP-21xx DSP 12/27/2002

EE-100: ADSP-218x External Overlay Memory 09/11/2002

EE-100 Addendum: PM/DM Overlay and I/O Memory Expansion Board For The ADSP-2181 EZ-Kit Lite

EE-164: Advanced EPROM Boot and No-boot Scenarios with ADSP-219x DSPs 05/02/2003

EE-164 Software Code

EE-36: ADSP-21xx Interface to the IOM-2 bus 09/09/2002

EE-129: ADSP-2192 Interprocessor Communication 09/11/2002

EE-158: ADSP-2181 EZ-Kit Lite IDMA to PC Printer Port Interface 09/06/2002

EE-115: ADSP-2189 IDMA Interface to Motorola MC68300 Family of Microprocessors 09/11/2002

EE-38: ADSP-2181 IDMA Port - Cycle Steal Timing 09/09/2002

EE-131: Booting the ADSP-2191/95/96 DSPs 09/11/2002

EE-154: ADSP-2191 Host Port Interface 10/14/2002

EE-18: Choosing and Using FFTs for ADSP-21xx 09/09/2002

EE-78: BDMA Usage on 100 pin ADSP-218x DSPs Configured for IDMA Use 09/10/2002

EE-5: ADSP-218x Full Memory Mode vs. Host Memory Mode 09/06/2002

EE-125: ADSP-218x Embedded System Software Management and In-System-Programming (ISP) 09/11/2002

Associated DSP source code and schematics

EE-226: ADSP-2191 DSP Host Port Booting (Rev.1) 01/26/2004

EE-226 Software Code

EE-142: Autobuffering, C and FFTs on the ADSP-218x 09/12/2002

Associated Reference Code for EE-142

EE-17: ADSP-2187L Memory Organization 09/09/2002

EE-130: Making Fast Transition from ADSP-21xx to ADSP-219x 09/11/2002

EE-249: Implementing Software Overlays on ADSP-218x DSPs with VisualDSP++® (Rev.1) 10/12/2004

EE-249 Software Code

EE-12: Interrupts and Programmable Flags on the ADSP-2185/2186 09/09/2002

EE-102: Mode D and ADSP-218x Pin Compatibility - the FAQs 09/11/2002

EE-32: Language Extensions: Memory Storage Types, ASM & Inline Constructs 03/08/2008

EE-89: Implementing A Software UART on the ADSP-2181 EZ-Kit-Lite 01/01/2000

EE-146: Implementing a Boot Manager for ADSP-218x Family DSPs 10/14/2002

EE-71: Minimum Rise Time Specs for Critical Interrupt and Clock Signals on the ADSP-21x1/21x5 09/10/2002

EE-139: Interfacing the ADSP-2191 to an AD7476 via the SPI Port 09/12/2002

Associated reference code for EE-139

EE-37: How to Interface an LCD to the 21xx and 2106x Family DSP's 09/21/1997

EE-96: Interfacing Two AD73311 Codecs to the ADSP-218x 09/11/2002

EE-39: Interfacing 5V Flash Memory to an ADSP-218x (Byte Programming Algorithm) 09/09/2002

EE-110: A Quick Primer on ELF and DWARF File Formats 05/17/2000

EE-128: DSP in C++: Calling Assembly Class Member Functions From C++ 09/18/2002

EE-48: Converting Legacy 21xx Systems To A 218x System Design 09/09/2002

AN-227: Digital Control System Design with the ADSP-2100 Family 04/04/2008

EE-79: EPROM Booting In Host Mode with 100 Pin 218x Processors 09/10/2002

EE-144: Creating a Master-Slave SPI Interface Between Two ADSP-2191 DSPs 09/12/2002

Associated reference code for EE-144

ADSP 21xx Processors: Manuals 02/14/2015

ADSP-218x DSP Instruction Set Reference (Rev.2.0) 03/08/2008

Documentation Errata

ADSP-218x DSP Hardware Reference (Rev.1.0) 03/10/2008

Documentation Errata

Using the ADSP-2100 Family Volume 2 (Rev.1.0) 03/08/2008

VisualDSP++ 3.5 C/C++ Compiler and Library Manual for ADSP-219x Processors (Rev.4.1) 09/07/2006

VisualDSP++ 3.5 Loader Manual for 16-Bit Processors (Rev.1.0) 09/08/2006

VisualDSP++ 3.5 C Compiler and Library Manual for ADSP-218x DSPs (Rev.4.1) 05/13/2011

VisualDSP++ 3.5 Assembler and Preprocessor Manual for ADSP-218x and ADSP-219x DSPs (Rev.1.2) 09/08/2006

VisualDSP++ 3.5 Linker and Utilities Manual for 16-Bit Processors (Rev.1.0) 09/08/2006

ADSP-218X Family EZ-ICE Hardware Installation Guide (Rev.1.0, 2000) 06/25/2004

ADSP-2184 Anomaly List for Revision 2.0 09/10/2002

ADSP-218X Family EZ-ICE Hardware Installation Guide (Rev.1.0) 03/08/2008

Reference Materials 2

ADI Complementary Parts Guide - Supervisory Devices and DSP Processors 01/01/0001

One Size Fits All - Power Your Applications with an Integrated Power IC 10/25/2023

Software & Part Ecosystem

Software 2

ADSP-218x/219x Code Examples

Software and Tools Anomalies Search

View Evaluation Software

Evaluation Kit

218X-EMULATOR

EZ-ICE® Serial Emulator for ADSP-218x Processor Family

218X-EMULATOR

EZ-ICE® Serial Emulator for ADSP-218x Processor Family

Features and Benefits

Supports ADI's ADSP-218x family of processors
High speed RS-232 serial port
Shielded enclosure with reset switch accessibility
I/O voltage setting confirmation LEDs
Support for 2.5, 3.3, and 5.0 volt DSPs
CE certified

Buy Now View Details

Product Detail

The EZ-ICE^® serial emulator system provides state-of-the-art emulation for the ADSP-218x family of processors by providing a controlled environment for observing, debugging, and testing activities in a target system. The EZ-ICE connects directly to the target processor through the emulation interface port. Its ease of use, full speed emulation and shielded board will ensure your design process runs smooth.

The debugger available for ADSP-218x EZ-ICE is Analog Devices' VisualDSP++ development environment. All software is sold separately.

Part Number
ADDS-218X-ICE-2.5V

Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support

For additional information, contact your local Analog Devices Sales Office or Distributor.

EVAL-2189-EZKIT

EZ-KIT Lite Evaluation Kit for ADSP-218x Processor

EVAL-2189-EZKIT

EZ-KIT Lite Evaluation Kit for ADSP-218x Processor

Features and Benefits

ADSP-2189M DSP
Supports ADSP-218x DSP family
RS-232 interface port
2Mbit or greater boot protected flash PROM
Expansion capabilities
Evaluation suite of VisualDSP++
Support for 2.5 and 3.3 I/O selectable
AD 73322 codec
CE certified

Buy Now View Details

Product Detail

The ADSP-2189M EZ-KIT Lite provides developers with a cost-effective method for initial evaluation of the powerful ADSP-218x DSP family architecture. The ADSP-2189M EZ-KIT Lite includes a stand-alone ADSP-2189M DSP board and fundamental code generation debug software. With this EZ-KIT Lite, users can learn about DSP hardware and software development and evaluate potential applications of the ADSP-218X M family of DSPs. The ADSP-2189M EZ-KIT Lite provides an evaluation suite of the VisualDSP++ development environment with the C compiler, assembler, and linker. All software tools are limited to use with the EZ-KIT Lite product.

Demonstration programs shipped with this EZ-KIT Lite system include common signal processing algorithms such as convolution and Fibonacci calculations. Programs that demonstrate the use of the hardware features of the ADSP-2189M are provided including interrupts, overlays, timers and the on-board codec.

Part Number
ADZS-2189M-EZLITE

Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support
