ADSP-21062

SHARC, 40 MHz, 120 MFLOPS, 5v, Floating Point

Production

Top

Overview

Features and Benefits
Product Details

Features and Benefits

40MHz (25ns instruction rate) SISD SHARC Core
120MFLOPs peak performance
Code compatible with all SHARC processors
Supports IEEE-compatible 32-bit floating-point, 40-bit floating point, and 32-bit fixed point math
2Mbits of on-chip dual-ported SRAM

Glueless connection for scalable DSP multiprocessing
Six Link Ports for point to point connectivity and array multiprocessing
Two synchronous serial ports with independent transmit and receive functions
10 Channel DMA controller
Host Processor Interface

Product Details

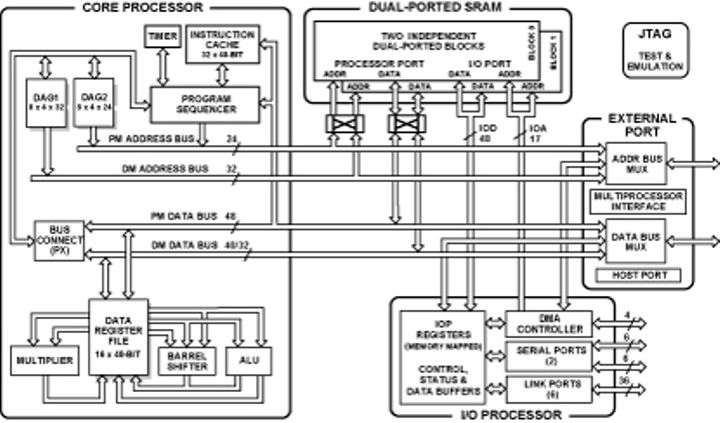

The ADSP-21062 and ADSP-21060 SHARC DSPs are signal processing microcomputers that offer new capabilities and levels of performance. The ADSP-2106x SHARCs are 32-bit processors optimized for high performance DSP applications. The ADSP-2106x builds on the ADSP-21000 DSP core to form a complete system-on-a-chip, adding a dual-ported on-chip SRAM and integrated I/O peripherals supported by a dedicated I/O bus.

Fabricated in a high speed, low power CMOS process, the ADSP-2106x has a 25 ns instruction cycle time and operates at 40 MIPS. With its on-chip instruction cache, the processor can execute every instruction in a single cycle.

The ADSP-2106x SHARC DSP represents a new standard of integration for signal computers, combining a high performance floating-point DSP core with integrated, on-chip system features including a 4 Mbit SRAM memory (2 Mbit on the ADSP-21062, 1 Mbit on the ADSP-21061), host processor interface, DMA controller, serial ports, and link port and parallel bus connectivity for glueless DSP multiprocessing.

Product Categories

Processors & Microcontrollers
- SHARC Audio Processors/SoCs

Audio & Video Products
- SHARC Audio Processors/SoCs

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
