ADRF6573

100 MHz to 4000 MHz, Digitally Controlled RF Dual VGA

Show More showmore-icon

alert : Obsolete tooltip
alert : Obsolete tooltip
Part Details
Part Models 1
1ku List Price
price unavailable
Features
  • Operating frequency range: 100 MHz to 4000 MHz
  • Dual independent, digitally controlled VGA
  • Single serial interface control for both channels
  • 6-bit, 0.5 dB digital step attenuator
  • 30.8 dB gain control range with ±0.15 dB gain accuracy at 2140 MHz
  • 17.8 dB gain at minimum attenuation at 2140 MHz
  • P1dB of 19.2 dBm at 2140 MHz
  • OIP3 of 40.0 dBm at 2140 MHz
  • RF input and RF output internally matched to 50 Ω
  • Channel to channel isolation of 50 dB at 2140 MHz
  • Single-supply operation from 4.75 V to 5.25 V
  • Thermally efficient, 7 mm × 7 mm × 1.0 mm, 32-terminal LGA
  • The companion ADL5240 integrates a gain block with a DSA
Additional Details
show more Icon
The ADRF6573 is a high performance, digitally controlled, dual variable gain amplifier (VGA) operating from 100 MHz to 4000 MHz. Each channel includes a 6-bit digital step attenuator (DSA) with a 31.5 dB gain control range, 0.5 dB steps, and ±0.25 dB gain accuracy. The attenuation of the DSA is controlled using a serial peripheral interface (SPI). The SPI is a serial in, parallel out shift register buffered by a transparent latch. It is controlled by three CMOS-compatible signals: data, clock, and latch enable. The amplifier in each channel is a broadband linear amplifier that operates up to 4000 MHz.

The device is internally matched to 50 Ω at the input and output. Only input/output ac coupling capacitors and power supply decoupling capacitors are required for operation.

The ADRF6573 consumes 85 mA per channel and operates from a single supply ranging from 4.75 V to 5.25 V. It is fully specified for operation from −40°C to +85°C.

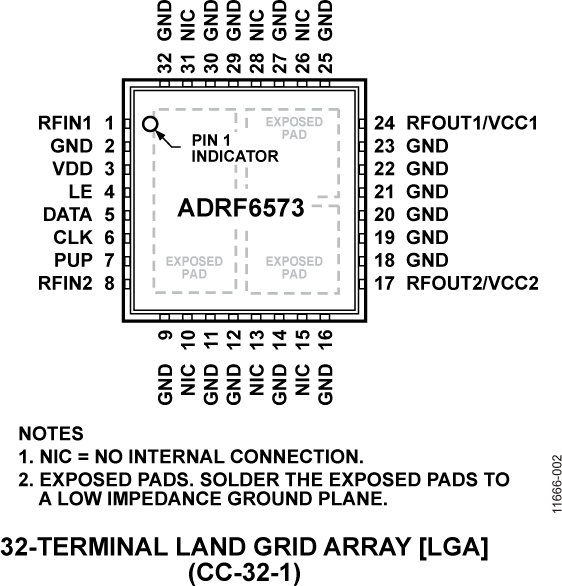

The ADRF6573 is packaged in a 32-terminal, 7 mm × 7 mm × 1.0 mm, land grid array (LGA) package.

Applications

  • Wireless infrastructure
  • Automated test equipment
  • RF/IF gain controls
Part Models 1
1ku List Price
price unavailable

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADRF6573ACCZ-R7
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

EVAL-ADRF6573

ADRF6573 Evaluation Board

zoom

EVAL-ADRF6573

ADRF6573 Evaluation Board

ADRF6573 Evaluation Board

Product Detail

ADRF6573-EVALZ is a fully populated, 4-layer, Rogers 3003-based evaluation board. For normal operation, it requires a 5 V/300 mA power supply. The ADRF6573 in the evaluation board can be programmed through a USB adaptor board from the USB port of a PC running Windows XP , Vista, and Window 7 with Microsoft .NET Framework 3.5 installed. The required control software can be downloaded from www.analog.com. The DSA and the amplifiers in ADRF6573 can be individually biased to the clip leads labeled VDD, VCC1, VCC2 and GND as well as connected to the VDD power plane using R1, R5 and R6.
