Features and Benefits
- Reflective, 50 Ω design
- Low insertion loss: 0.7 dB typical to 2.0 GHz
- High power handling at TCASE = 105°C
- Long term (>10 years) average
- CW power: 43 dBm
- Peak power: 49 dBm
- LTE average power (8 dB PAR): 41 dBm
- Single event (<10 sec) average
- LTE average power (8 dB PAR): 44 dBm
- Long term (>10 years) average
- High linearity
- P0.1dB: 47 dBm typical
- IP3: 70 dBm typical
- ESD ratings
- HBM: 4 kV, (Class 3A)
- CDM: 1.25 kV
- Single positive supply: 5 V
- Positive control, CMOS/TTL compatible
- 32-lead, 5 mm × 5 mm LFCSP package
The ADRF5160 is a silicon-based, high power, 0.7 GHz to 4.0 GHz, silicon, single-pole, double-throw (SPDT) reflective switch in a leadless, surface-mount package. The switch is ideal for high power and cellular infrastructure applications, such as long-term evolution (LTE) base stations. The ADRF5160 has high power handling of 41 dBm (8 dB PAR LTE, long-term (>10 years) average typical), a low insertion loss of 0.7 dB typical to 2.0 GHz, an input third-order intercept (IP3) of 70 dBm (typical), and a 0.1 dB compression point (P0.1dB) of 47 dBm. On-chip circuitry operates at a single positive supply voltage of 5 V at a typical supply current of 1.1 mA, making the ADRF5160 an ideal alternative to pin diode-based switches.
The ADRF5160 comes in a RoHS compliant, compact 32-lead, 5 mm × 5 mm LFCSP.
- Wireless infrastructure
- Military and high reliability applications
- Test equipment
- Pin diode replacement
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

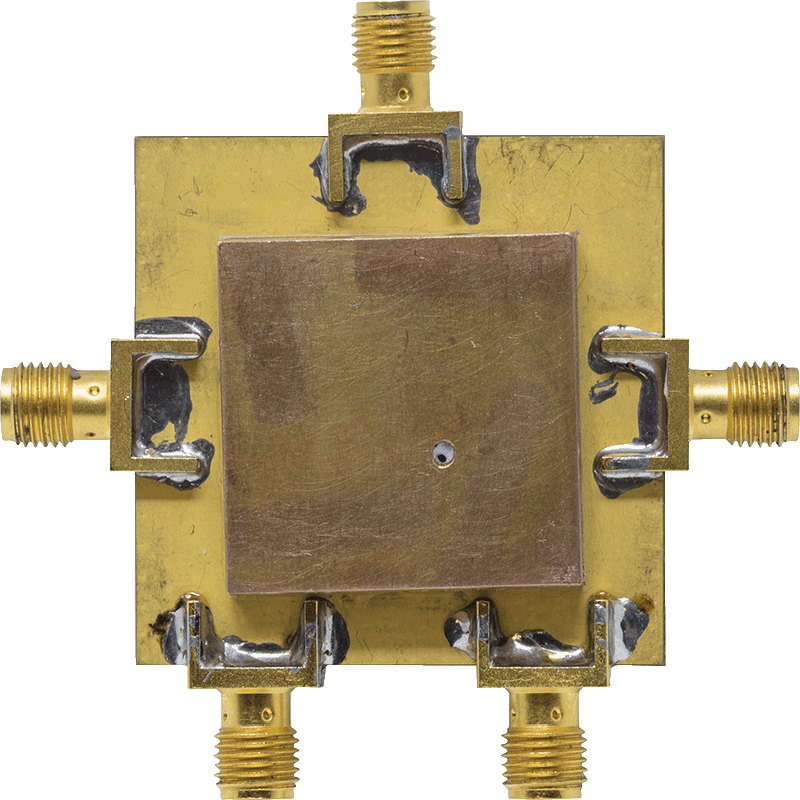

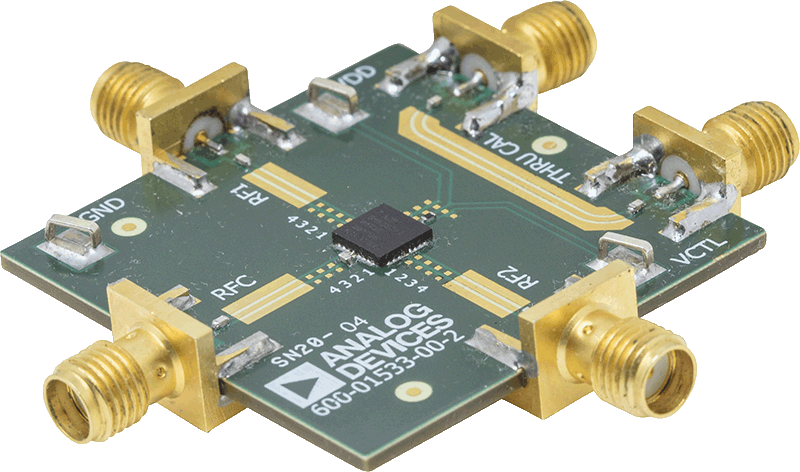

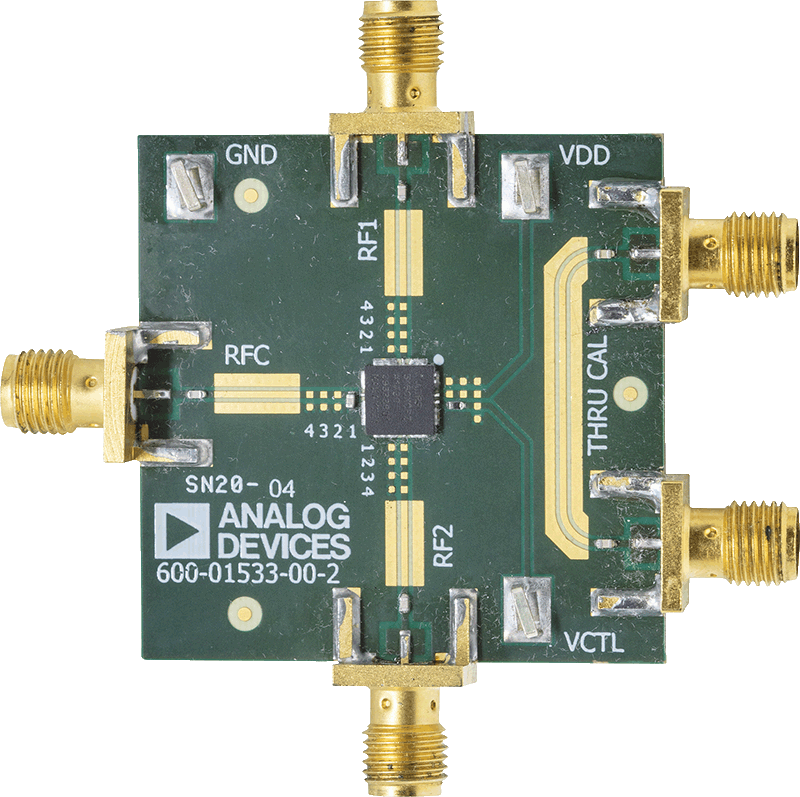

Evaluation Kits (1)
Generate the evaluation PCB with proper RF circuit design techniques. Signal lines at the RF port must have a 50 Ω impedance, and the package ground leads and backside ground slug must connect directly to the ground plane. The evaluation board available from Analog Devices, Inc. upon request.
Tools & Simulations
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
