ADRF5080

RECOMMENDED FOR NEW DESIGNS

Reflective, Silicon SP8T Switch, 100 MHz to 20 GHz

Data Sheet (Rev. 0) Product Selection Table
Viewing:

Overview

  • Ultrawideband frequency range: 100 MHz to 20 GHz
  • Low insertion loss
    • 1.3 dB up to 6 GHz
    • 1.6 dB up to 12 GHz
    • 2.0 dB up to 20 GHz
  • High isolation
    • 46 dB up to 6 GHz
    • 45 dB up to 12 GHz
    • 40 dB up to 20 GHz
  • High input linearity
    • P0.1dB: 33 dBm typical
    • IP3: 55 dBm typical
  • High RF power handling
    • Insertion loss path: 33 dBm
    • Hot switching: 30 dBm
  • Fast switching on and off time: 55 ns
  • 0.1 dB settling time (50% VCTRL to 0.1 dB final RFOUT): 100 ns
  • Single-supply operation capability
  • All off state control
  • Logic select control
  • No low frequency spurs
  • 36-terminal, 5.50 mm x 5.50 mm LGA package

The ADRF5080 is a reflective, SP8T switch manufactured in the silicon process. The ADRF5080 operates from 100 MHz to 20 GHz with an insertion loss of lower than 2.0 dB and an isolation higher than 40 dB. The device has an RF input power handling capability of 30 dBm continuous wave power for the insertion loss path.

The ADRF5080 operates with a dual-supply voltage, +3.3 V and −3.3 V. The device can also operate with a single-supply voltage (VDD) applied while the negative supply pin (VSS) is tied to ground. The single-supply operation condition requires a lower operating power while the excellent small signal performance is maintained See Table 2 in the data sheet for details.

The ADRF5080 employs complementary metal-oxide semiconductor (CMOS)-/low voltage transistor to transistor logic (LVTTL)-compatible controls.

The ADRF5080 comes in a 36-terminal, 5.50 mm × 5.50 mm, RoHS compliant, land grid array (LGA) package and can operate from −40°C to +105°C.

Applications

  • Test and instrumentation
  • Military radios, radars, and electronic counter measures (ECMs)
  • Microwave radios and very small aperture terminals (VSATs)

    •
    ADRF5080
    Reflective, Silicon SP8T Switch, 100 MHz to 20 GHz
    ADRF5080 - Functional Block Diagram ADRF5080 - Pin Configuration
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project
    Ask a Question

    Documentation

    Data Sheet 1

    User Guide 1

    Application Note 1

    Evaluation Design File 1

    Learn More
    Add to myAnalog

    Add media to the Resources section of myAnalog, to an existing project or to a new project.

    Create New Project

    Software Resources

    Can't find the software or driver you need?

    Request a Driver/Software

    Tools & Simulations

    S-Parameter 1

    Evaluation Kits

    eval board
    schematic 1
    schematic 2
    schematic 3
    EVAL-ADRF5080

    Evaluating the ADRF5080 Reflective, Silicon SP8T Switch, 100 MHz to 20 GHz

    Buy Now View Details

    Features and Benefits

  • Full-featured evaluation board for the ADRF5080
  • Easy connection to test equipment
  • Additional through line for calibration

    • Product Details

    The ADRF5080 is a reflective, SP8T switch manufactured in the silicon on insulator (SOI) process.

    The user guide describes the ADRF5080-EVALZ evaluation board, which is designed to simply evaluate the features and performance of the ADRF5080. A photograph of the evaluation board is shown in Figure 1 of the user guide.

    Full specifications for the ADRF5080 are available in the ADRF5080 data sheet, which must be consulted when using the ADRF5080-EVALZ.
    EVAL-ADRF5080
    Evaluating the ADRF5080 Reflective, Silicon SP8T Switch, 100 MHz to 20 GHz

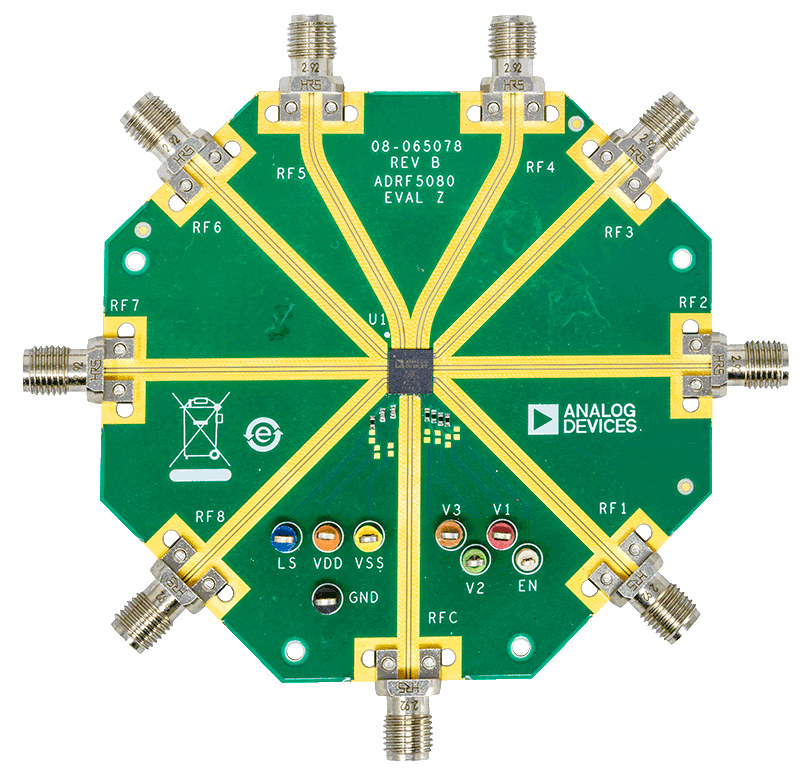

    ADRF5080 - Evaluation Board - Angle ADRF5080 - Evaluation Board - Top ADRF5080 - Evaluation Board - Bottom
