ADRF5022

Silicon SPDT Switch, Nonreflective, 100 MHz to 45 GHz

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $75.11
Features
  • Ultra-wideband frequency range: 100 MHz to 45 GHz
  • Nonreflective design
  • Low insertion loss
    • 1.2 dB typical to 18 GHz
    • 1.9 dB typical to 40 GHz
    • 2.3 dB typical to 45 GHz
  • High Isolation: 43 dB typical to 45 GHz
  • High input linearity
    • 0.1 dB power compression (P0.1dB): 31 dBm
    • Third-order intercept (IP3): 55 dBm
  • High power handling at TCASE = 85°C
    • 30 dBm through path
    • 24 dBm terminated path
    • 30 dBm hot switching (RFC port)
  • RF settling time (0.1 dB final RF output): 30 ns
  • No low-frequency spurious signals
  • All off-state control
  • Positive control interface: CMOS-/LVTTL-compatible

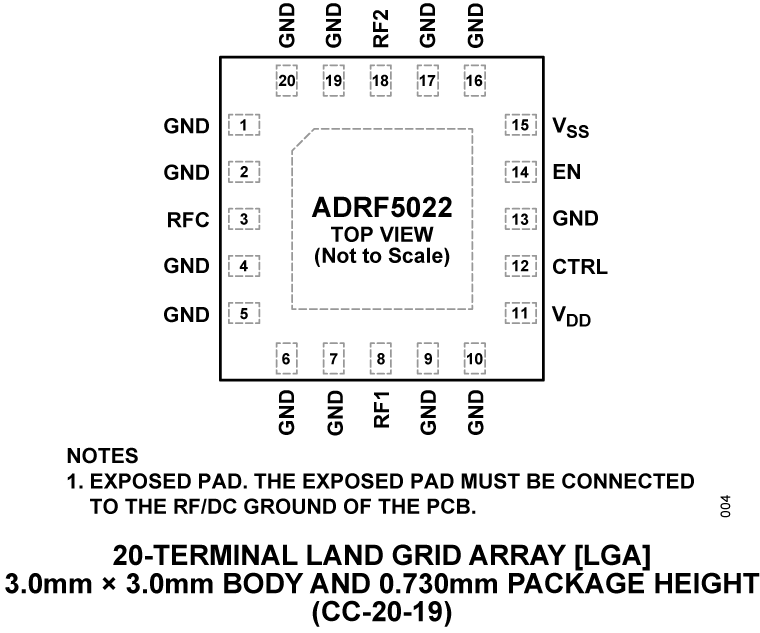

  • 20-terminal, 3.0 mm × 3.0 mm LGA package
  • Pin-compatible with ADRF5023, low-frequency cutoff version
Additional Details
show more Icon

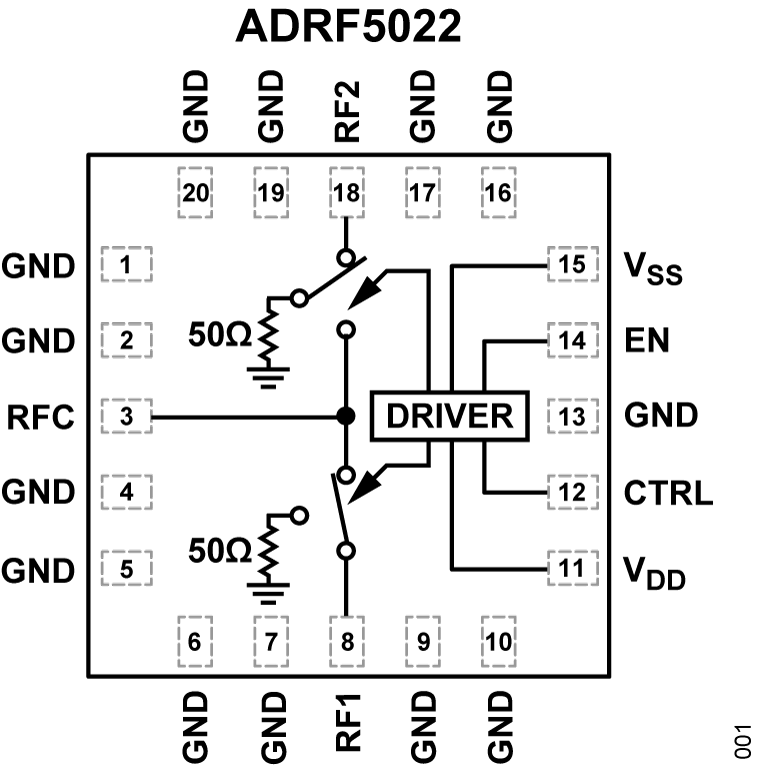

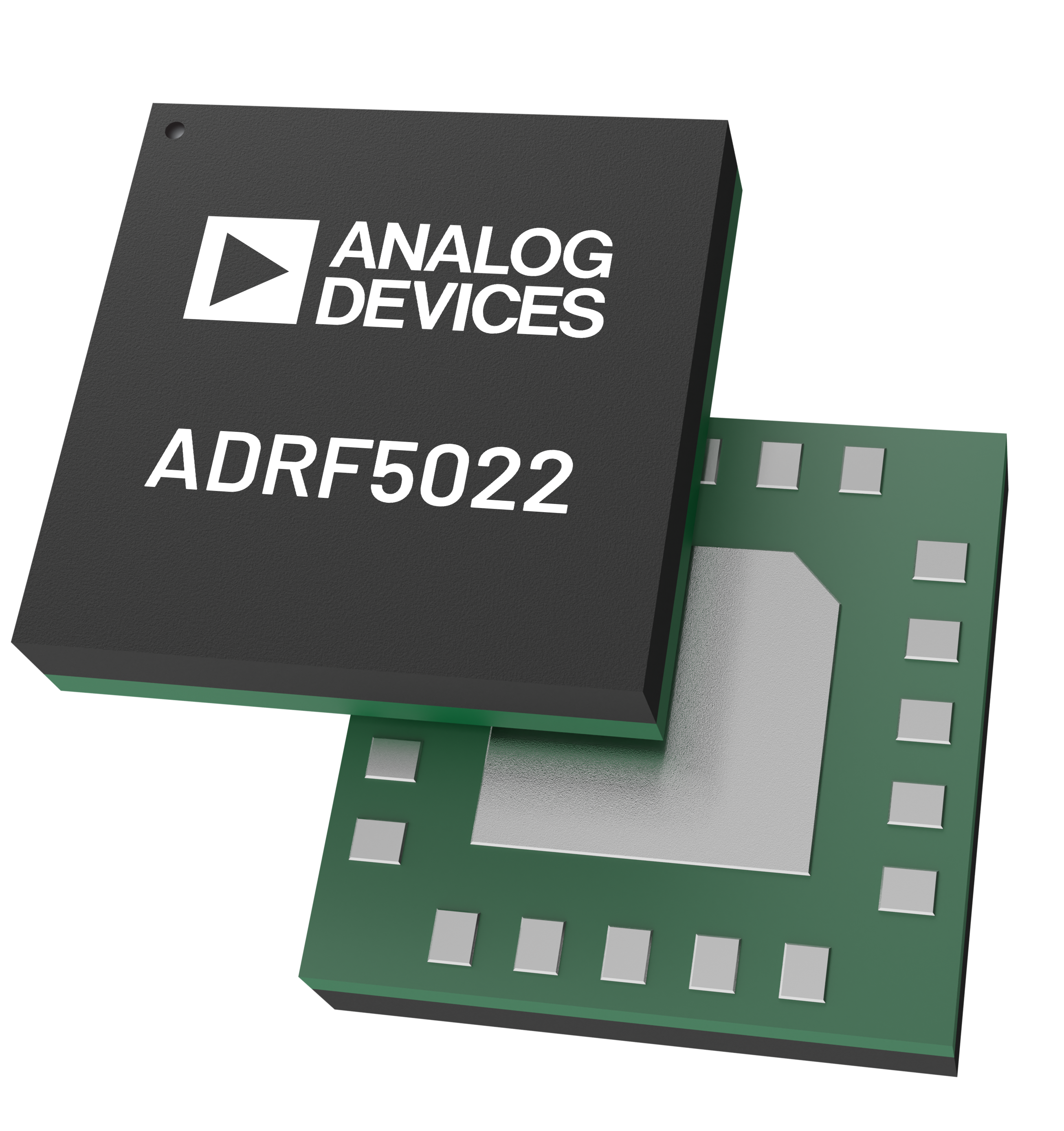

The ADRF5022 is a nonreflective, single-pole double-throw (SPDT) switch manufactured in the silicon process.

The ADRF5022 operates from 100 MHz to 45 GHz with a typical insertion loss of 2.3 dB and isolation of 43 dB. The device has an RF input-power handling capability of 30 dBm for the through path, 24 dBm for the terminated path, and 30 dBm for the hot switching at the RF common port.

The ADRF5022 requires a positive supply of +3.3 V and a negative supply of −3.3 V. The device employs complementary metal-oxide semiconductor (CMOS)-/low-voltage transistor to transistor logic (LVTTL)-compatible controls.

The ADRF5022 can also operate with a single positive supply voltage (VDD) applied while the negative supply voltage (VSS) is connected to ground. In this operating condition, the small signal performance is maintained while the switching characteristics, linearity, and power handling performance is derated. For more details, see Table 2 in the data sheet.

TheADRF5022 is pin-compatible with the ADRF5023, low-frequency cutoff version, which operates from 9 kHz to 45 GHz.

The ADRF5022 comes in a 20-terminal, 3.0 mm × 3.0 mm, RoHScompliant, land grid array (LGA) package and can operate from −40°C to +105°C.

APPLICATIONS

  • Test and instrumentation
  • Cellular infrastructure: 5G millimeter wave
  • Military radios, radars, and electronic countermeasures (ECMs)
  • Microwave radios and very small aperture terminals (VSATs)
  • Industrial scanners
  • Part Models 2
    1ku List Price Starting From $75.11

    close icon
    Documentation

    Documentation

    Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
    ADRF5022BCCZN
    • HTML
    • HTML
    ADRF5022BCCZN-R7
    • HTML
    • HTML
    Software and Part Ecosystem

    Software and Part Ecosystem

    Evaluation Kit

    Evaluation Kits 1

    reference details image

    EVAL-ADRF5022

    Evaluating the ADRF5022 Silicon SPDT Switch, Nonreflective, 100 MHz to 45 GHz

    zoom

    EVAL-ADRF5022

    Evaluating the ADRF5022 Silicon SPDT Switch, Nonreflective, 100 MHz to 45 GHz

    Evaluating the ADRF5022 Silicon SPDT Switch, Nonreflective, 100 MHz to 45 GHz

    Features and Benefits

    • Full-featured evaluation board for the ADRF5022
    • Easy connection to the test equipment
    • Thru line for calibration

    Product Detail

    The ADRF5022 is a single-pole, double-throw (SPDT) switch manufactured in the silicon process.

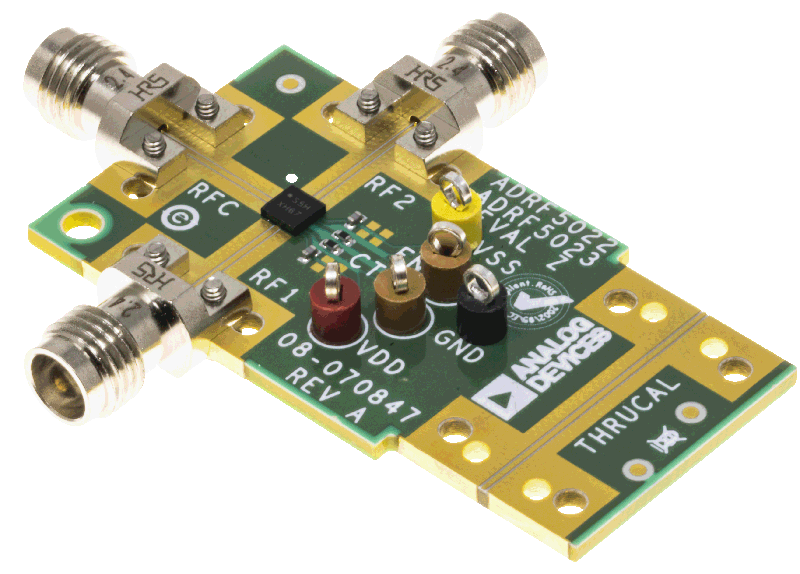

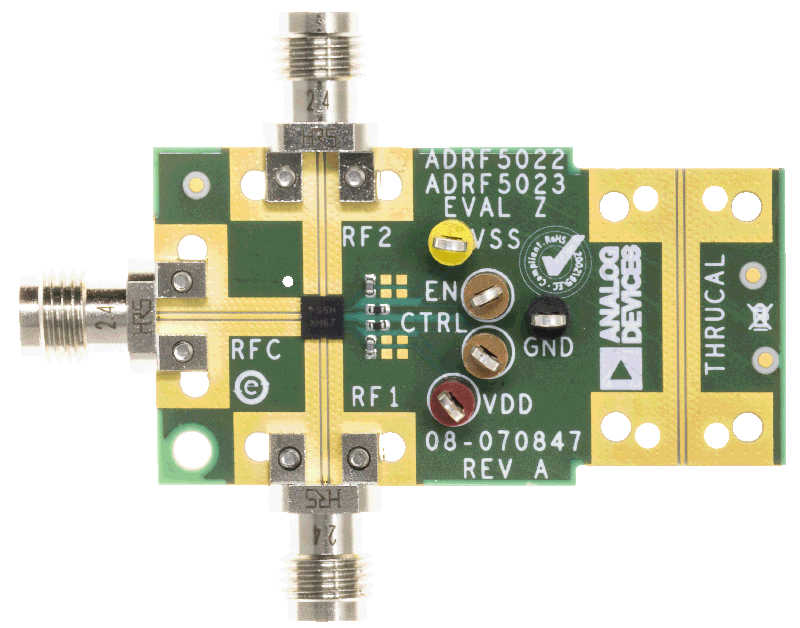

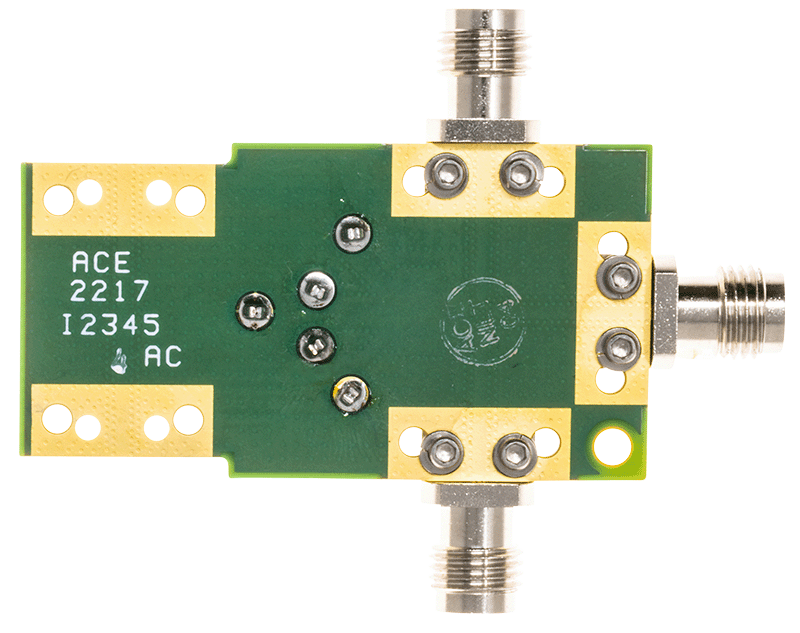

    The user guide describes the ADRF5022-EVALZ evaluation board, designed to evaluate the features and performance of the ADRF5022. Figure 1 in the user guide shows a photograph of the evaluation board.

    Full specifications on the ADRF5022 are available in the ADRF5022 data sheet available from Analog Devices, Inc., and must be consulted with the user guide when using the ADRF5022-EVALZ evaluation board.
