ADRF5010

RECOMMENDED FOR NEW DESIGNS

Silicon SPST Switch, NonReflective, 100 MHz to 55 GHz

Data Sheet (Rev. 0) Product Selection Table
Viewing:

Overview

  • Ultrawideband Frequency range: 0.1 GHz to 55 GHz
  • Nonreflective ports, High power terminated path
  • Symmetrical ports
  • Low insertion loss
    • 1.0 dB typical to 20 GHz
    • 1.5 dB typical to 40 GHz
    • 2.0 dB typical to 55 GHz
  • Isolation
    • 30 dB typical to 50 GHz
    • 28 dB typical to 55 GHz
  • High input linearity
    • P0.1dB: >33 dBm typical
    • Input IP3 >60 dBm typical
  • High power handling Tcase= 85 °C
    • Through path
      • Peak: 36 dBm
      • Pulse: 33 dBm
      • CW: 30 dBm
      • Terminated path
        • Peak: 33 dBm
        • Pulse 33 dBm
        • CW: 30 dBm
      • Hot switching
        • Peak: 33 dBm
        • Pulse: 33 dBm
        • CW: 30 dBm
    • CMOS/LVTTL compatible
    • RF switching time: 30 ns
    • RF settling time (0.1 dB final RF output): 50 ns
    • Dual supply operation: ±3.3 V
    • 14-lead, 2.25 mm x 2.25 mm, LGA package

The ADRF5010 is a non-reflective, single-pole single-throw (SPST) switch manufactured in the silicon process.

The ADRF5010 operates from 0.1 GHz to 55 GHz with insertion loss of lower than 2 dB and isolation of higher than 28 dB. The device has a RF input power handling capability of 30 dBm for through path and 30 dBm for hot switching.

The ADRF5010 requires dual supply voltages of ±3.3 V. The device employs CMOS and LVTTL compatible control.

The ADRF5010 can also operate with a single positive supply voltage (VDD) applied while the negative supply voltage (VSS) is tied to ground. In this operating condition, the small signal performance is maintained while the switching characteristics, linearity, and power handling performance is derated.

The ADRF5010 comes in a 14-lead, 2.25 mm x 2.25 mm, land grid array [LGA] package and can operate from -40°C to +105°C.

APPLICATIONS

  • Test and instrumentation
  • Cellular infrastructure: 5G mmWave
  • Military radios, radars, electronic counter measures
  • Microwave radios and very small aperture terminals
  • Industrial scanners
ADRF5010
Silicon SPST Switch, NonReflective, 100 MHz to 55 GHz

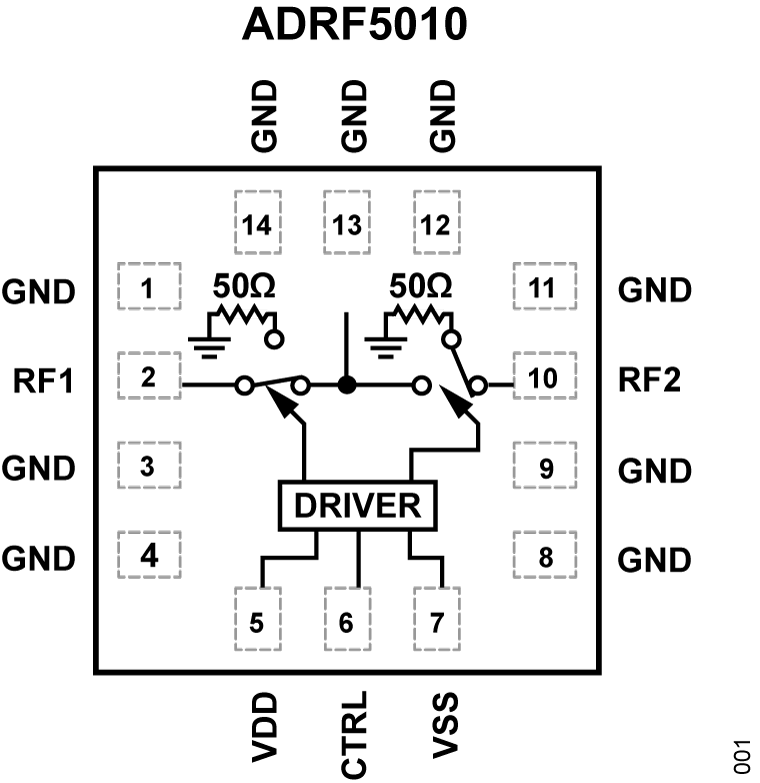

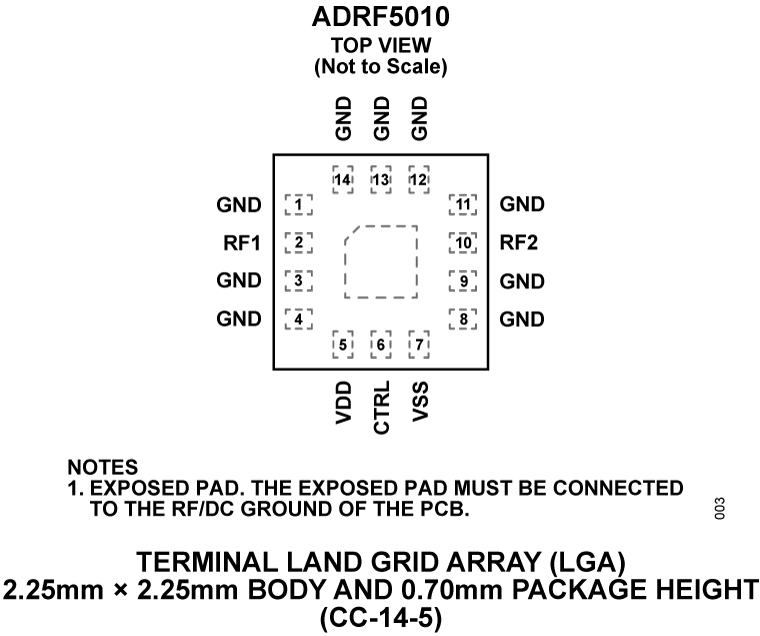

ADRF5010 Functional Block Diagram ADRF5010 Pin Configuration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

S-Parameter 2

Evaluation Kits

eval board
schematic 1

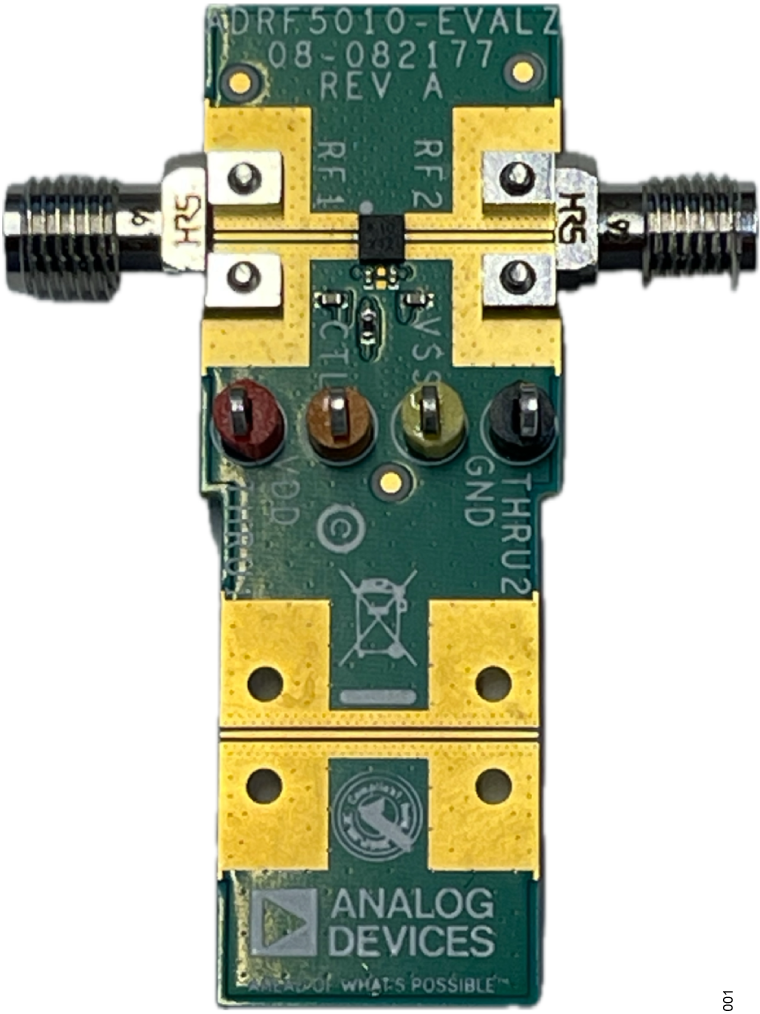

EVAL-ADRF5010

Evaluation Board for the ADRF5010 Silicon SPST Switch, Nonreflective, 100 MHz to 55 GHz

Buy Now View Details

Features and Benefits

  • Full-featured evaluation board for the ADRF5010
  • Easy connection to the test equipment
  • Through line for calibration

Product Details

The ADRF5010 is a single-pole, single-throw (SPST) switch manufactured in the silicon process.

Thw user guide describes the ADRF5010-EVALZ evaluation board, designed to evaluate the features and performance of the ADRF5010.

Full specifications on the ADRF5010 are available in the ADRF5010 data sheet available from Analog Devices, Inc., and must be consulted with this user guide when using the ADRF5010- EVALZ evaluation board.
EVAL-ADRF5010
Evaluation Board for the ADRF5010 Silicon SPST Switch, Nonreflective, 100 MHz to 55 GHz
EVAL-ADRF5010
