ADPL74101

Name: ADPL74101
Brand: Analog Devices
Price: 1.75 USD
Availability: InStock

RECOMMENDED FOR NEW DESIGNS

100V Synchronous Step-Down Controller with Internal Bootstrap Switch

Data Sheet (Rev. 0) Product Selection Table

Part Models: 1
1ku List Price: Starting From $1.75

Viewing:

Overview

Wide V_IN Range: 4V to 100V
Wide output voltage range: 0.8V ≤ V_OUT ≤ 60V
Internal Bootstrap Switch for the High-Side Gate Driver Stage
Accurate Adjustable Driver Voltage with UVLO Protection
Selectable Continuous, Pulse-Skipping, or Burst Mode Operation at Light Loads

Programmable Output Voltage with VPRG Pin (5V or 12V)
Current Limit Foldback during Short Fault
Low Operating I_Q: 5μA (48V_IN to 5V_OUT)
Programmable Frequency (100kHz to 1MHz)
Spread Spectrum Frequency Modulation

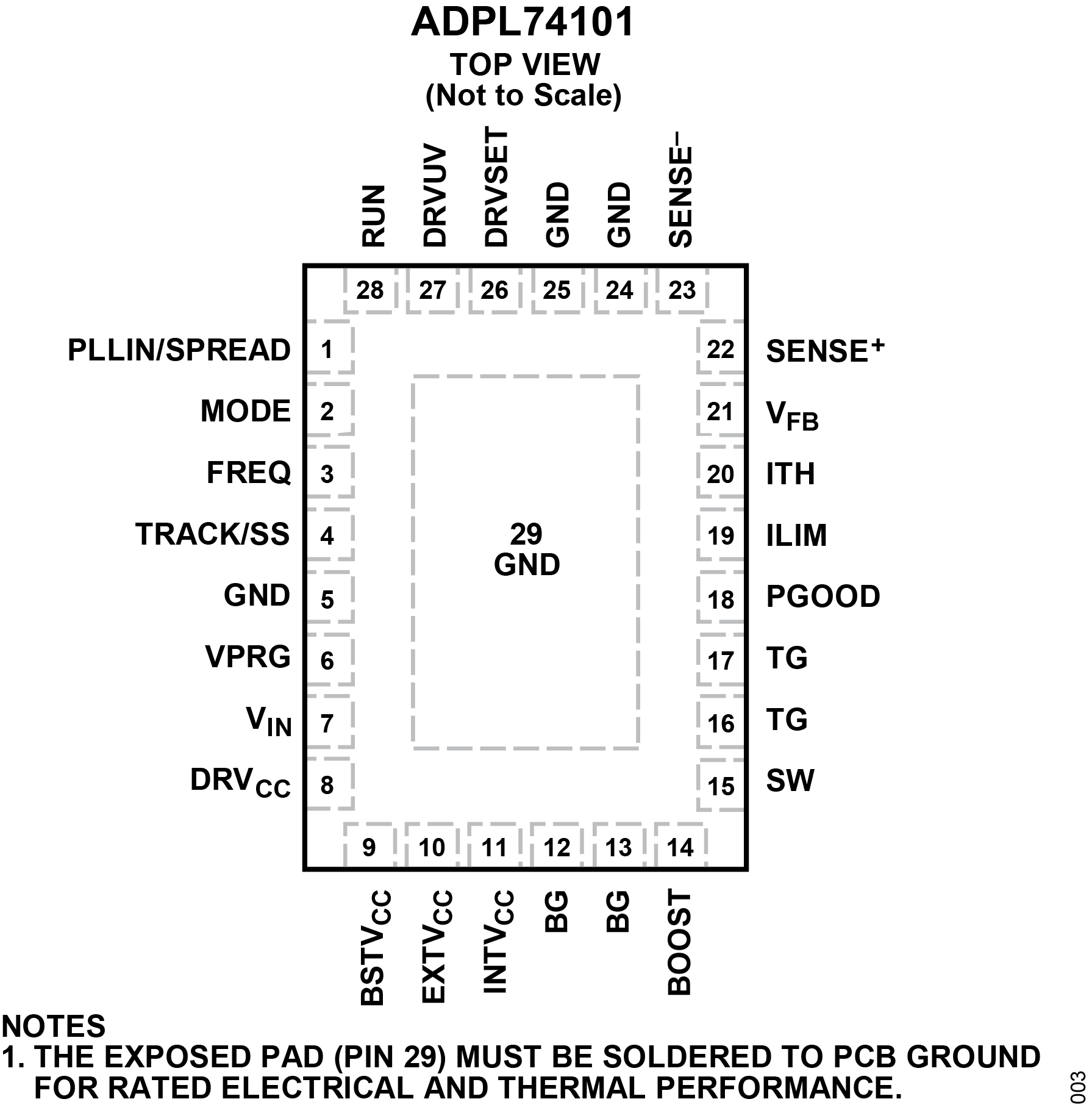

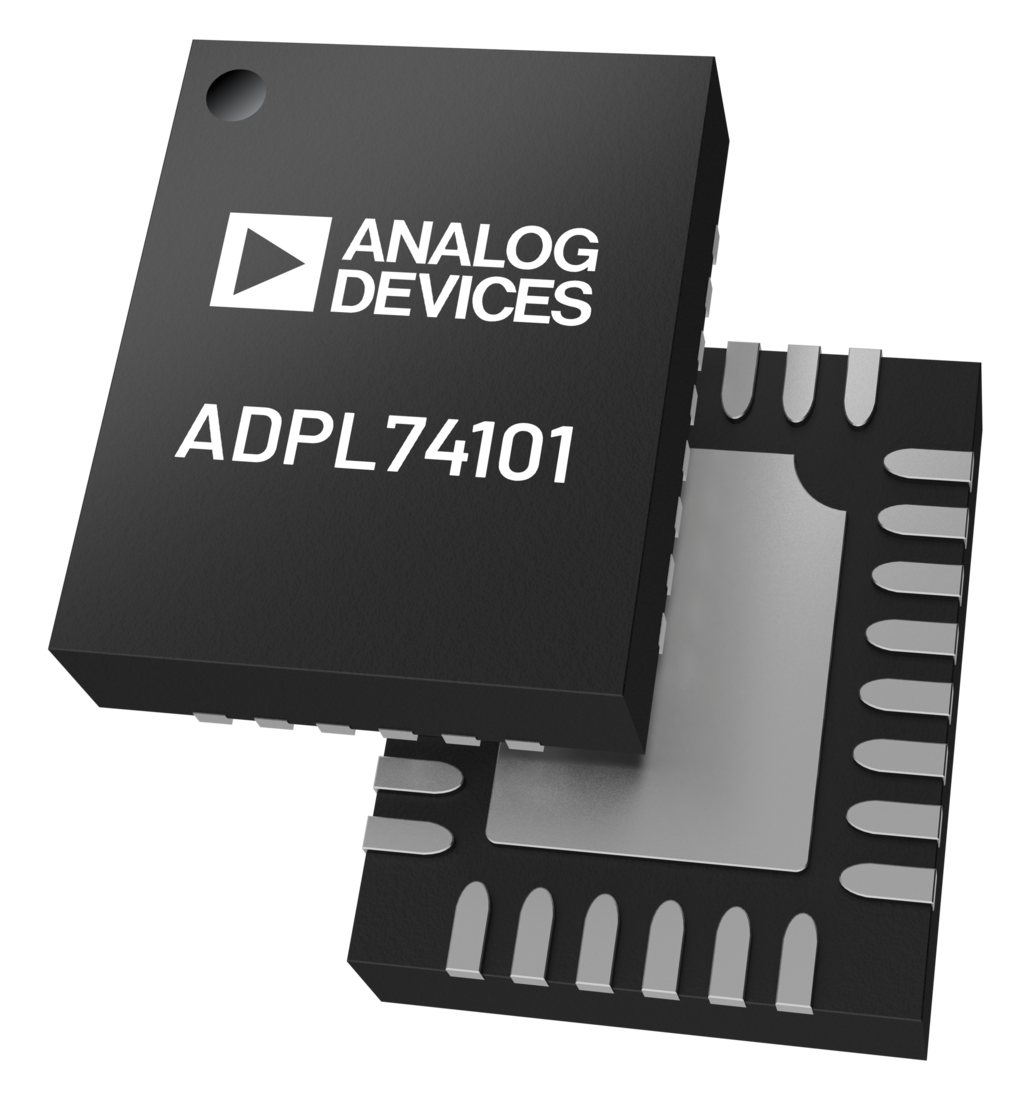

28-Lead (4mm × 5mm), QFN Package

Part Models: 1
1ku List Price: Starting From $1.75

Documentation

Data Sheet 1

ADPL74101: 100V Synchronous Step-Down Controller with Internal Bootstrap Switch Data Sheet (Rev.0) 01/12/2026

User Guide 1

EVAL-ADPL74101-AZ User Guide: High Voltage Step-Down Controller (Rev.0) 01/12/2026

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADPL74101ACPZ-RL	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

ADPL74101

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

High Voltage Step-Down Controller

Buy Now View Details

Product Details

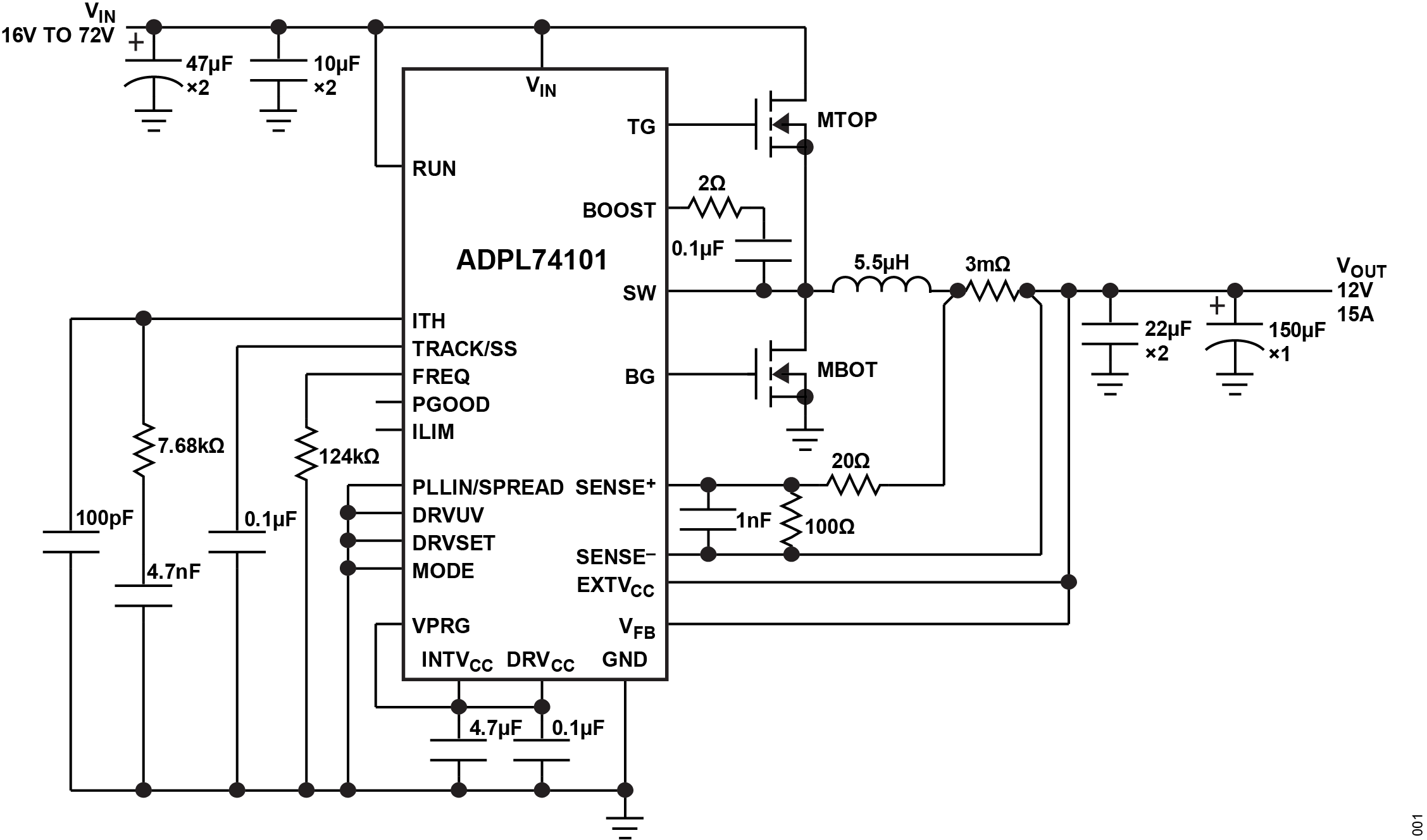

Evaluation circuit EVAL-ADPL74101-AZ, features the ADPL74101, a 100V step-down synchronous controller. The ADPL74101 features low IQ, up to 1MHz programmable/synchronizable switching frequency, spread spectrum, and a small 28-lead (4mm x 5mm) QFN package. These features allow for a wide variety of applications, including industrial, military, medical, and telecommunications systems.

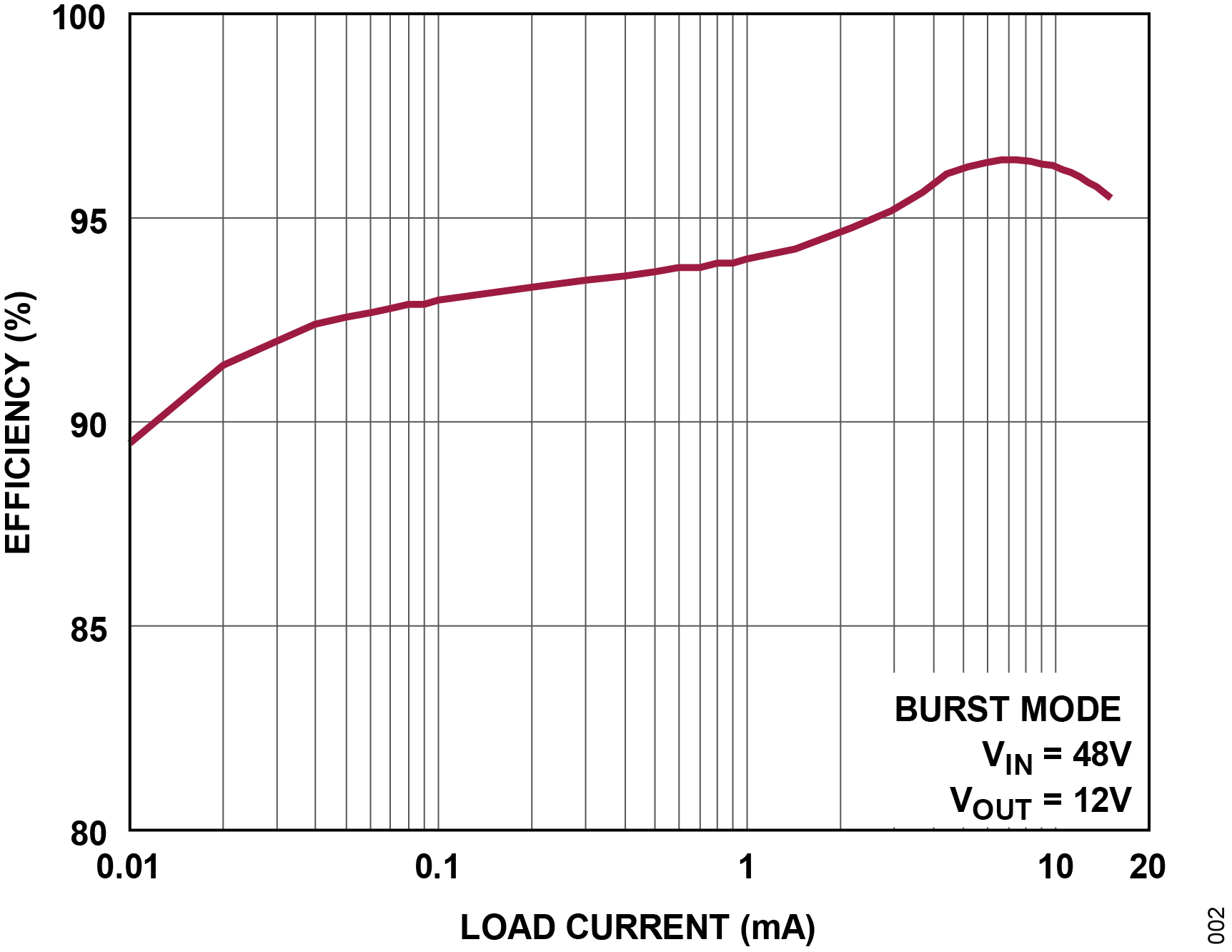

The EVAL-ADPL74101-AZ operates from a 16V to 72V input voltage range and generates a 12V, 15A output. The ADPL74101 has a precision voltage reference that can generate an output voltage with less than 2% tolerance over the full operating conditions. The EVAL-ADPL74101-AZ is set to a 300kHz switching frequency, which results in a small and efficient circuit. The converter achieves over 94% efficiency with a 15A load at full operating V_IN, with a peak efficiency of over 96%.

This board can be easily modified to regulate output voltages from 0.8V to 60V. The evaluation circuit has been specifically designed with 100V field-effect transistors (FETs); various FETs with similar footprints can be replaced to fit a wide array of applications.

The EVAL-ADPL74101-AZ provides a high-performance, cost-effective solution for generating a 12V output. The ADPL74101 data sheet provides a complete description of this device, including its operation and application information. The data sheet must be read in conjunction with this user guide for EVAL-ADPL74101-AZ.

Design files for this circuit board are available at www.analog.com.
