PRE-RELEASE

–20V, −200mA, Low-Noise Linear Regulator

Data Sheet (Rev. 1) Product Selection Table

Part Models: 6
1ku List Price: price unavailable

Viewing:

Overview

Low Noise: 25μV_RMS
Power Supply Rejection Ratio (PSRR): 55dB at 10kHz at V_OUT = −3V
Positive or Negative Enable Logic
Stable with small 2.2μF Ceramic Output Capacitor
Input Voltage Range: −2.7V to −20V
Maximum Output Current: −200mA
Low Dropout Voltage: −200mV at −200mA load
Initial accuracy: ±1%

Accuracy over line, load, and temperature

+2% Maximum/−3% Minimum

Low Quiescent Current, I_GND = −900μA with −200mA load
Low Shutdown Current: −2μA

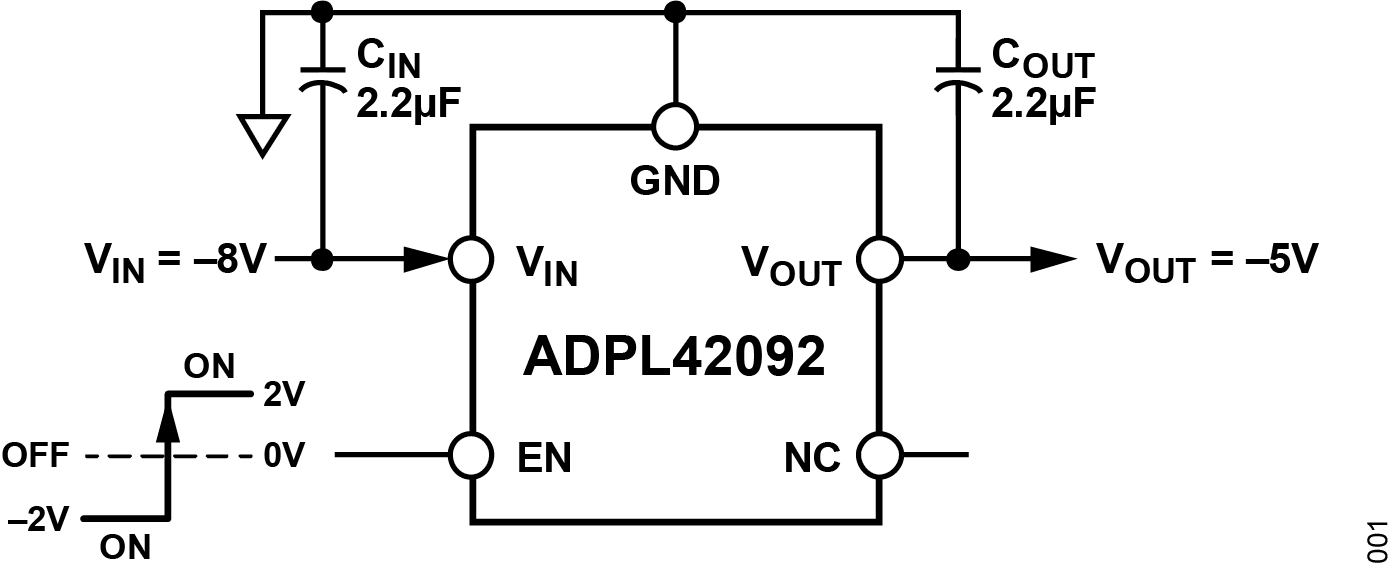

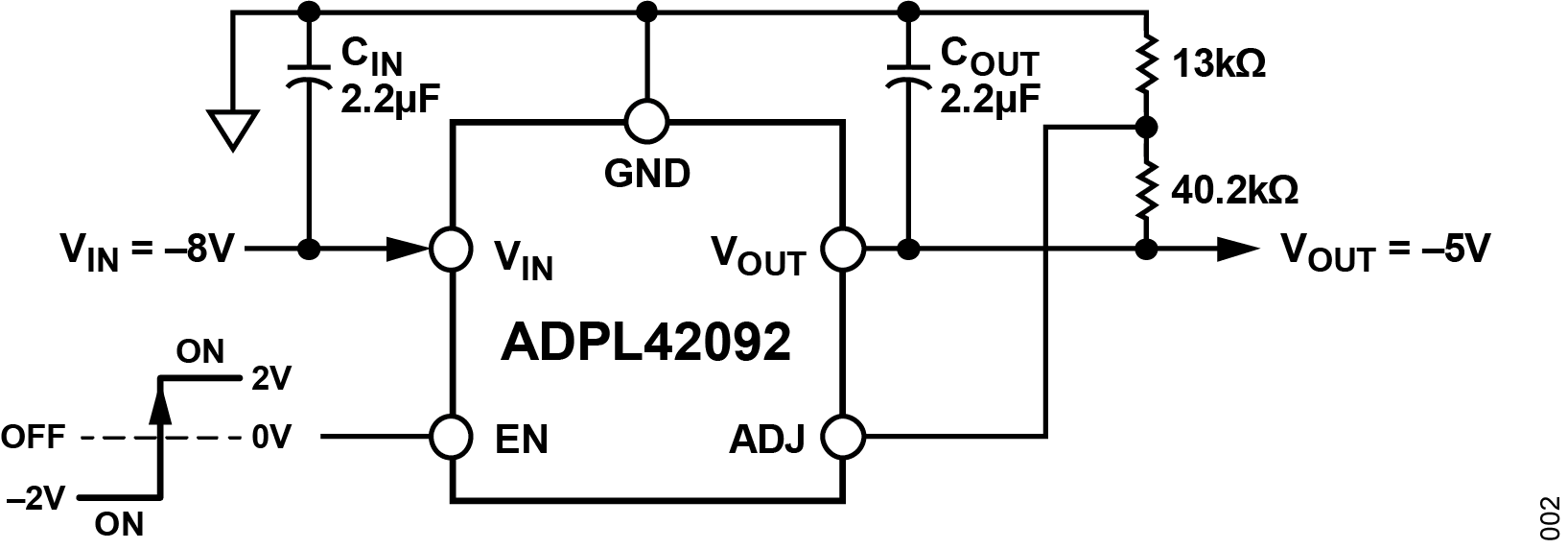

Adjustable Output from −1.22V to −V_IN + V_DO
Current-Limit and Thermal Overload Protection

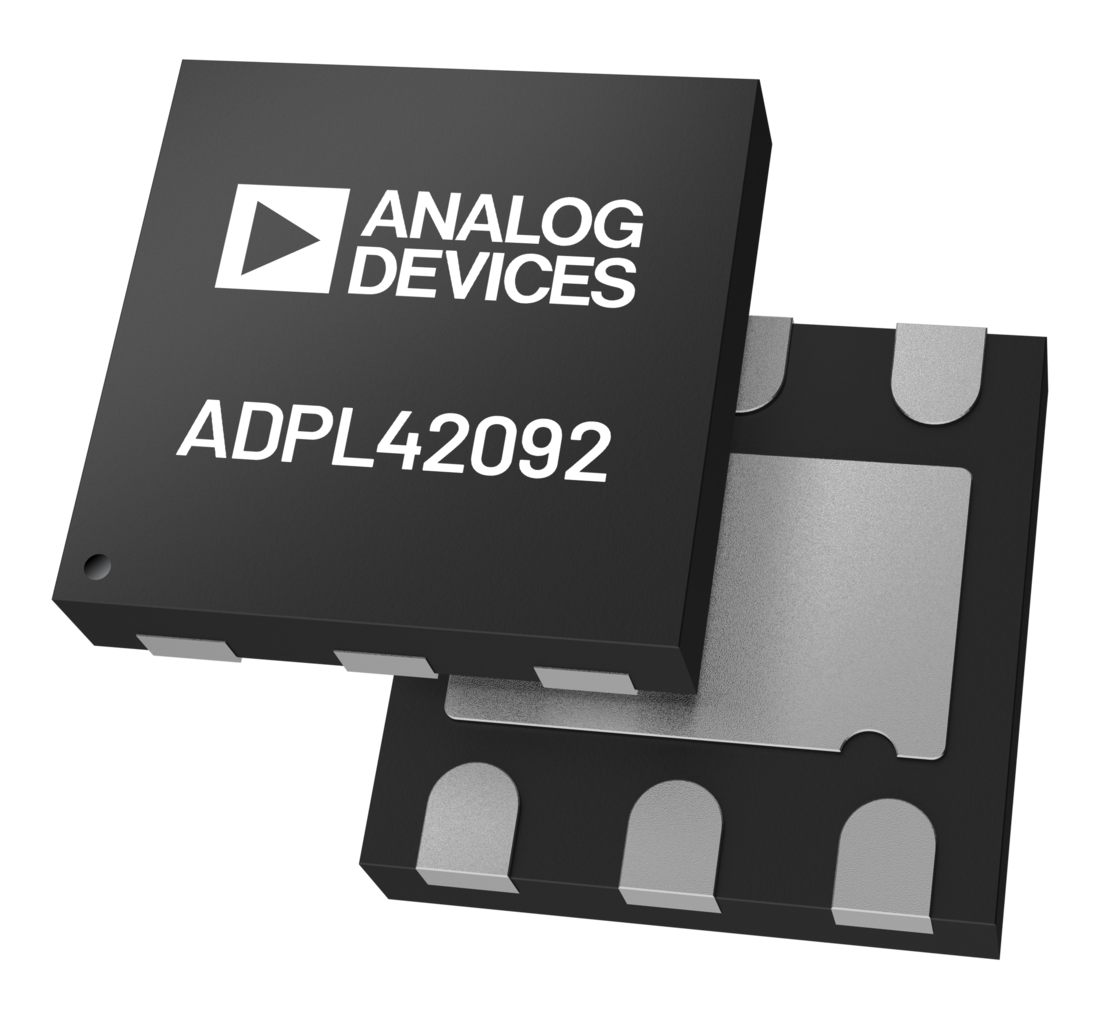

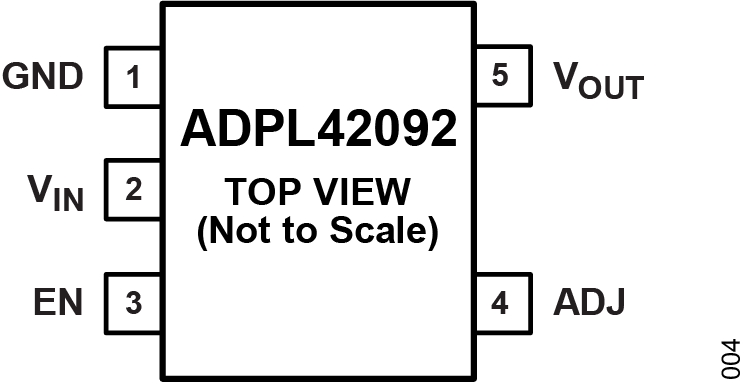

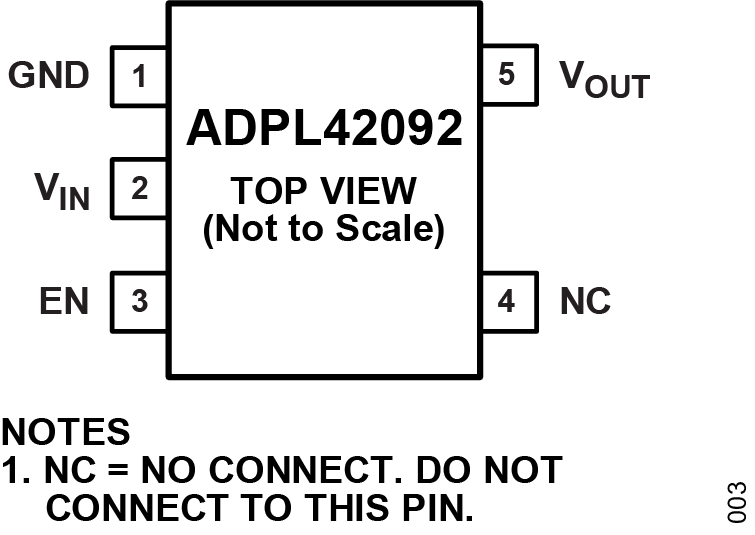

6-Lead Lead Frame Chip Scale Package (LFCSP) and 5-Lead Thin Small Outline Transistor (TSOT)

Part Models: 6
1ku List Price: price unavailable

Documentation

Data Sheet 1

ADPL42092: –20V, −200mA, Low-Noise Linear Regulator Data Sheet (Rev.1) 08/17/2026

User Guide 1

ADPL42092-EVAL User Guide: Evaluating the ADPL42092: -20V, -200mA, Low-Noise Linear Regulator (Rev.1) 08/17/2026

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADPL42092ACPZN-5.0-R7	5-Lead TSOT	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL42092ACPZN-R7	LFCSP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL42092AUJZ-1.8-R7	5-Lead TSOT	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL42092AUJZ-2.5-R7	5-Lead TSOT	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL42092AUJZ-5.0-R7	5-Lead TSOT	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL42092AUJZ-R7	5-Lead TSOT	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

ADPL42092

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluating the ADPL42092: -20V, -200mA, Low-Noise Linear Regulator

Buy Now View Details

Features and Benefits

Input Voltage Range: -2.7V to -20V
Resistor Programmed -15V Output Voltage
Maximum Output Current: -200mA
The configuration jumper selects between connecting the EN pin to the V_IN pin to turn the regulator ON, or using an external EN signal to turn the regulator ON
Jumper connects the SENSE/ADJ Pin to the Output through a resistor divider or directly
V_IN, V_OUT, and GND test points for Regulation and Dropout Voltage Monitoring
6-Lead (2mm x 2mm) LFCSP Package or 5-Lead TSOT Package

Product Details

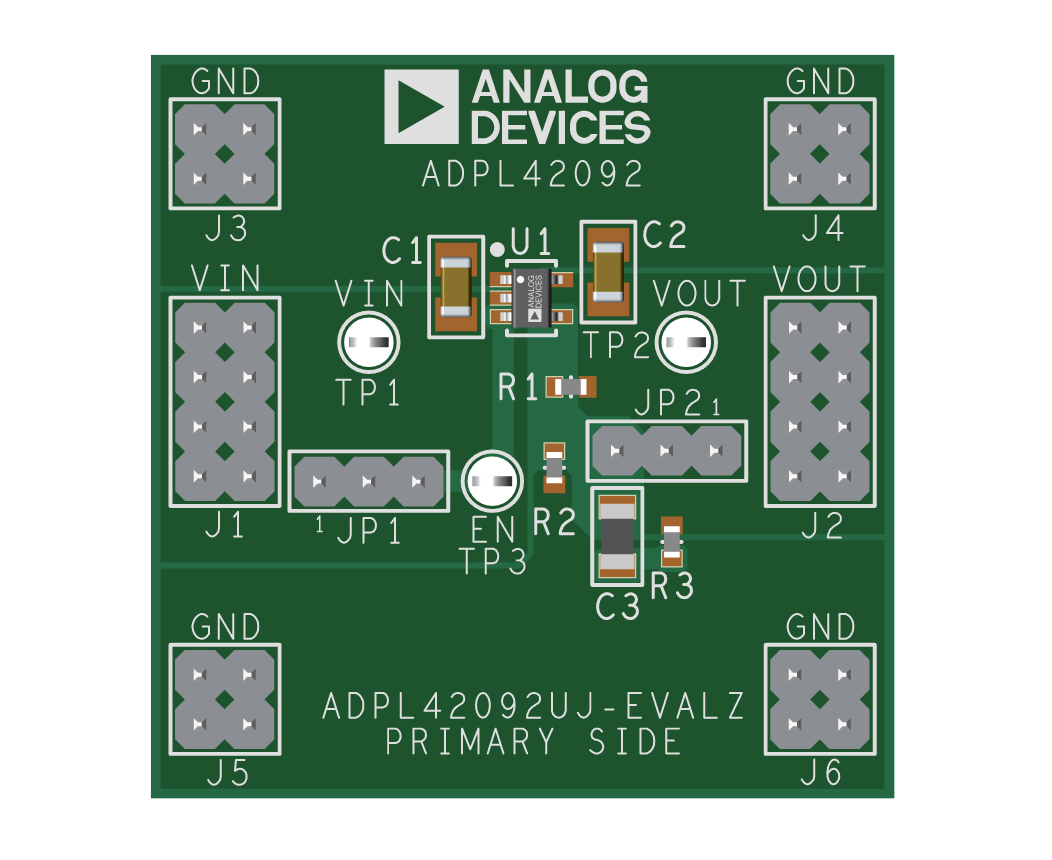

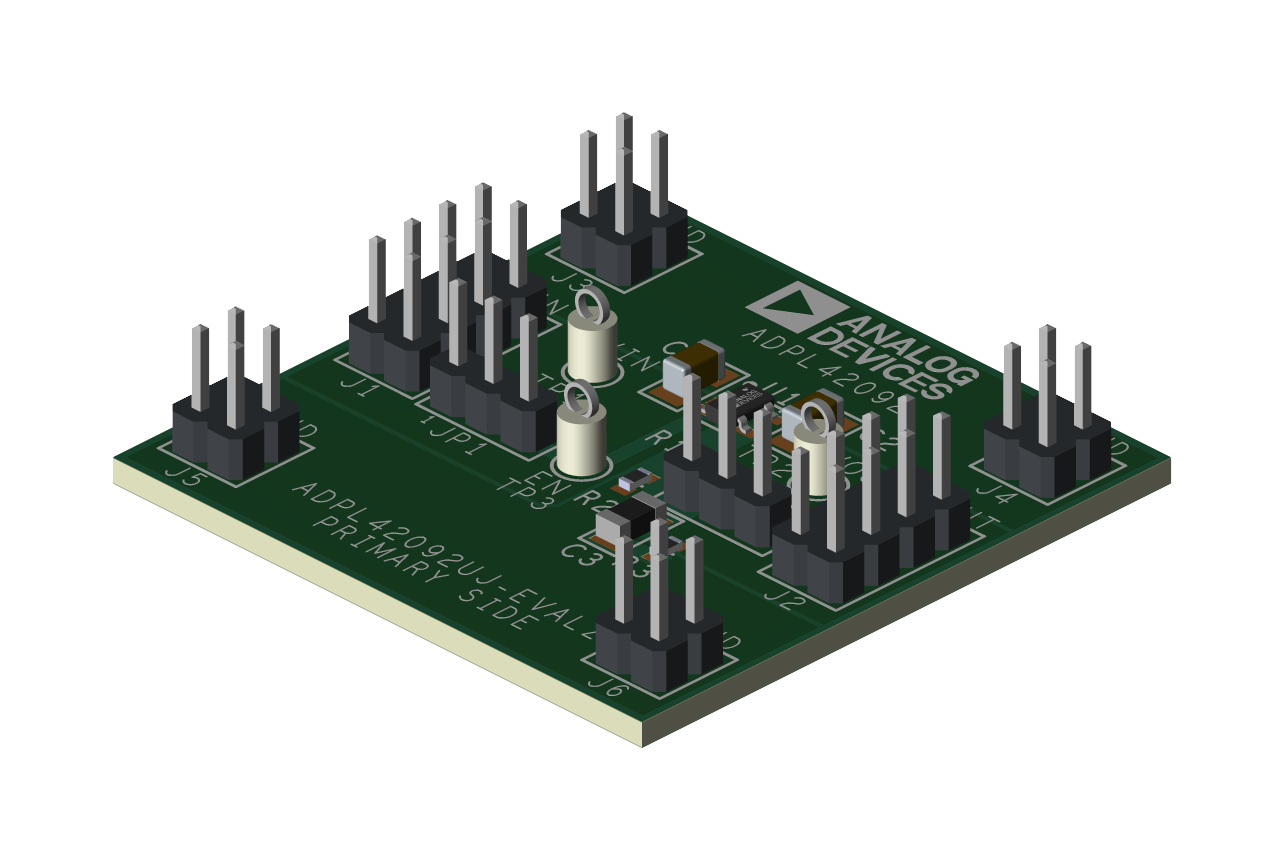

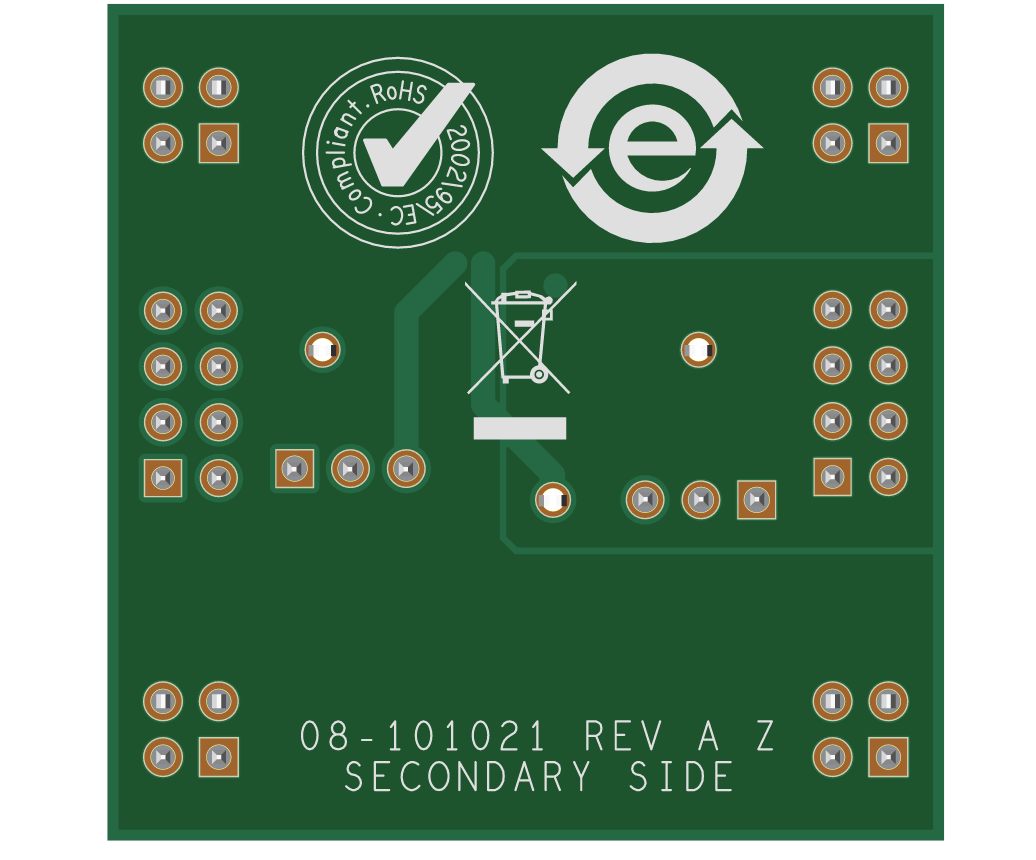

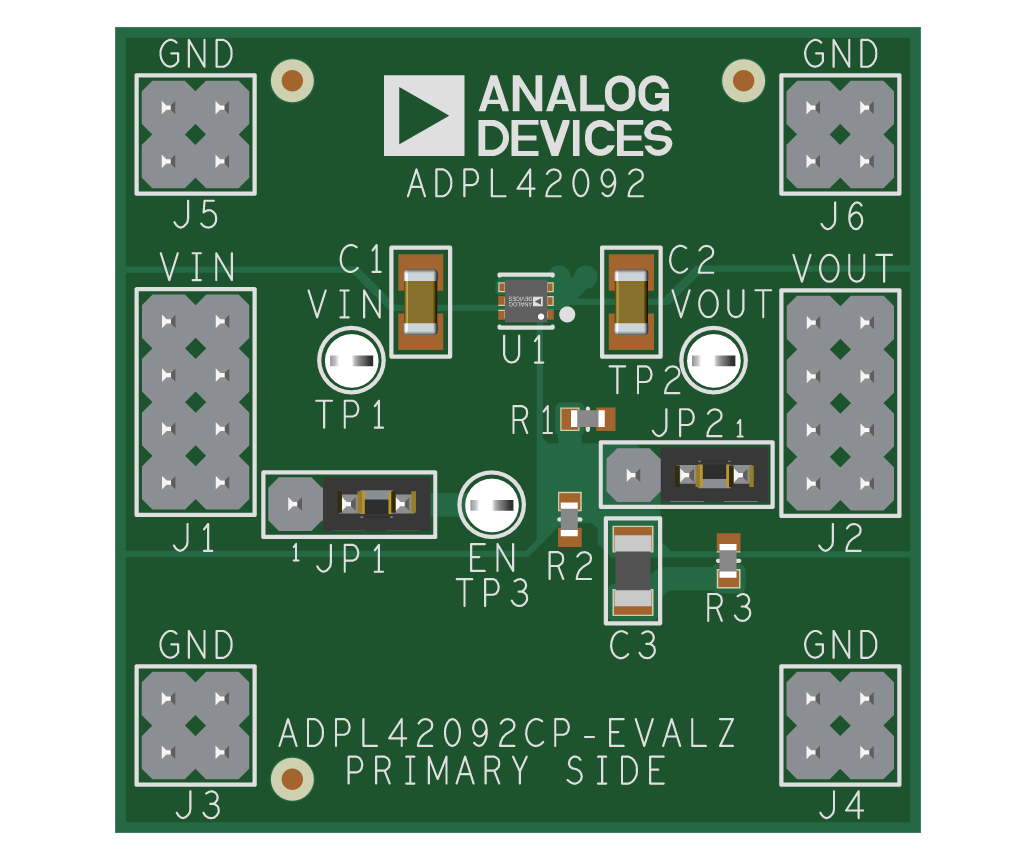

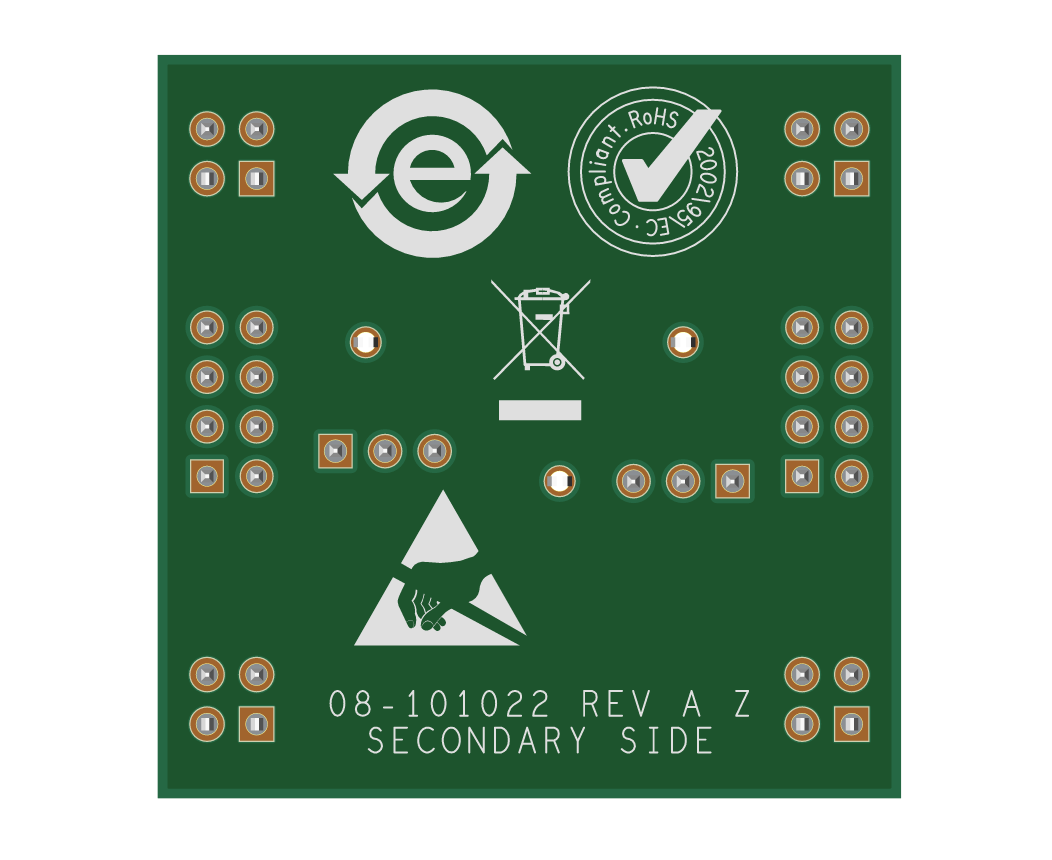

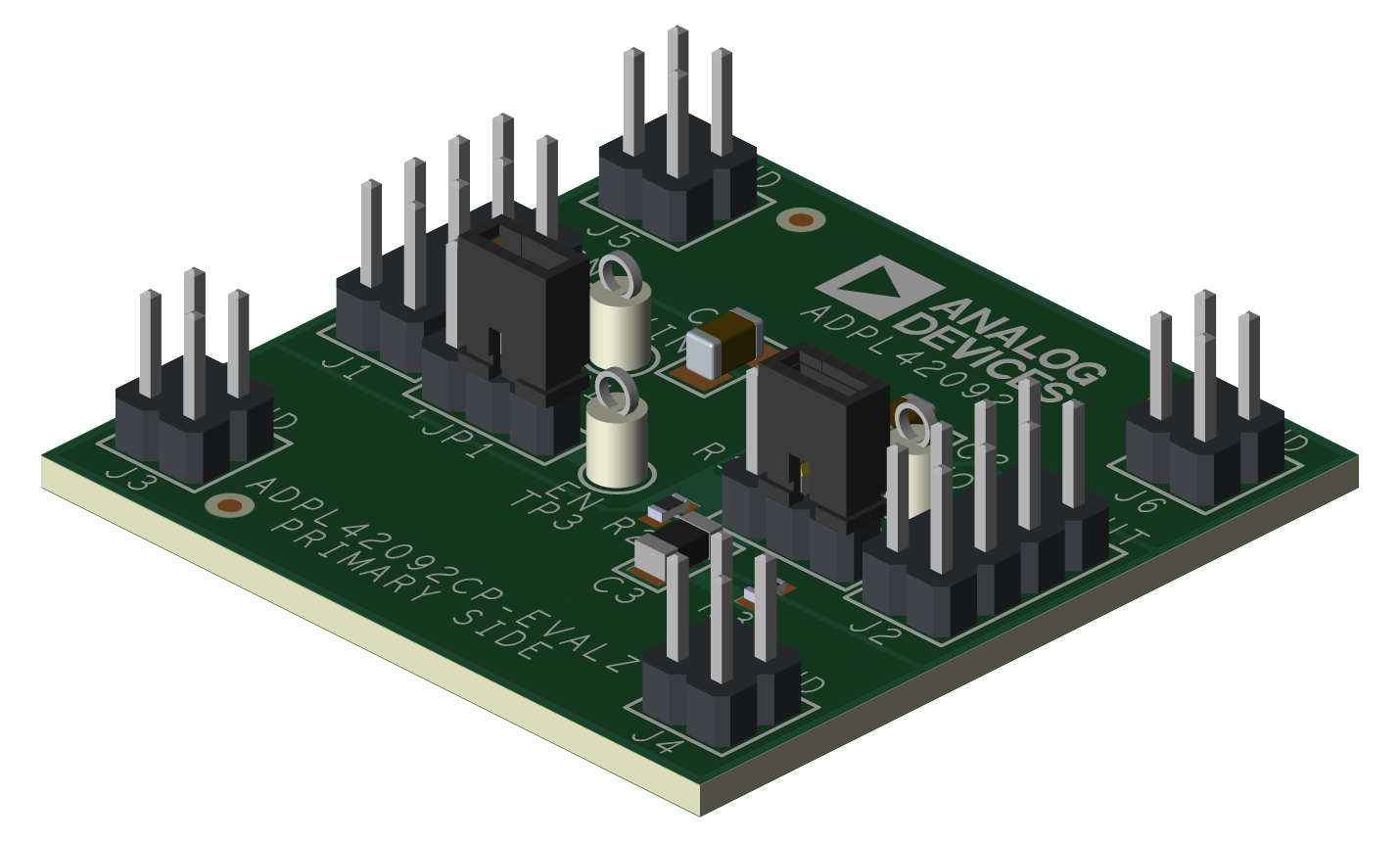

The ADPL42092 evaluation boards evaluate the ADPL42092, a -20V, -200mA, low-noise, low-dropout linear regulator, in two packages: 6-Lead Lead Frame Chip Scale Package (LFCSP) and 5-Lead Thin Small Outline Transistor (TSOT). The circuits designed with the ADPL42092 are used primarily in noise-sensitive applications, communications and infrastructure, medical and healthcare, and industrial and instrumentation.
