Features and Benefits
- Integrates all typical PWM controller functions
7 PWM control signals
Digital control loop
Integrated programmable loop filters
Programmable voltage line feedforward
Dedicated soft start filter
- Remote and local voltage sense
Primary and secondary side current sense
Synchronous rectifier control
- I2C interface
- Extensive fault detection and protection
- Extensive programming and telemetry
- Fast digital calibration
- User accessible EEPROM
- Qualified for automotive applications
- Download ADP1046AW Automotive Data Sheet (pdf)
The ADP1046A is a flexible, digital secondary side controller designed for ac-to-dc and isolated dc-to-dc secondary side applications. The ADP1046A is pin-compatible with the ADP1043A and offers several enhancements and new features, including voltage feedforward and improved loop response to maximize efficiency.
The ADP1046A is optimized for minimal component count, maximum flexibility, and minimum design time. Features include local and remote voltage sense, primary and secondary side current sense, digital pulse-width modulation (PWM) generation, current sharing, and redundant OrFET control. The control loop digital filter and compensation terms are integrated and can be programmed over the I2C interface. Programmable protection features include overcurrent protection (OCP), over- voltage protection (OVP), undervoltage lockout (UVLO), and overtemperature protection (OTP).
The built-in EEPROM provides extensive programming of the integrated loop filter, PWM signal timing, inrush current, and soft start timing and sequencing. Reliability is improved through a built-in checksum and programmable protection circuits.

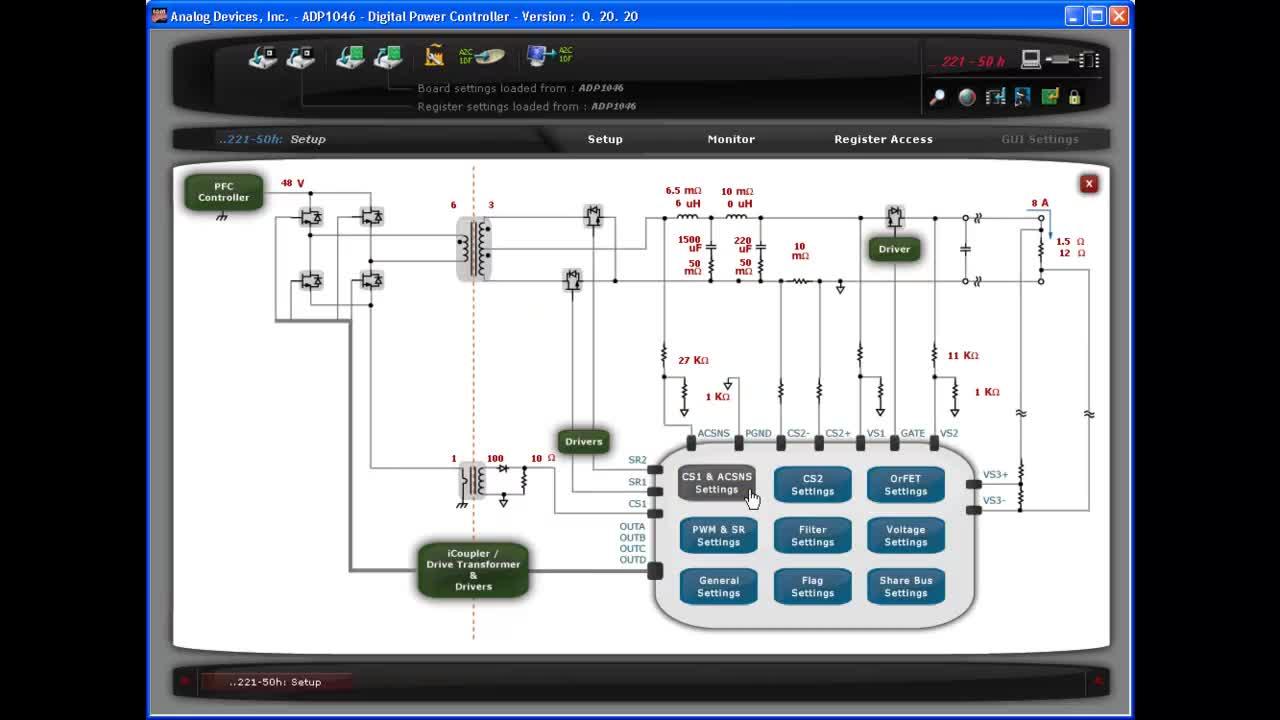

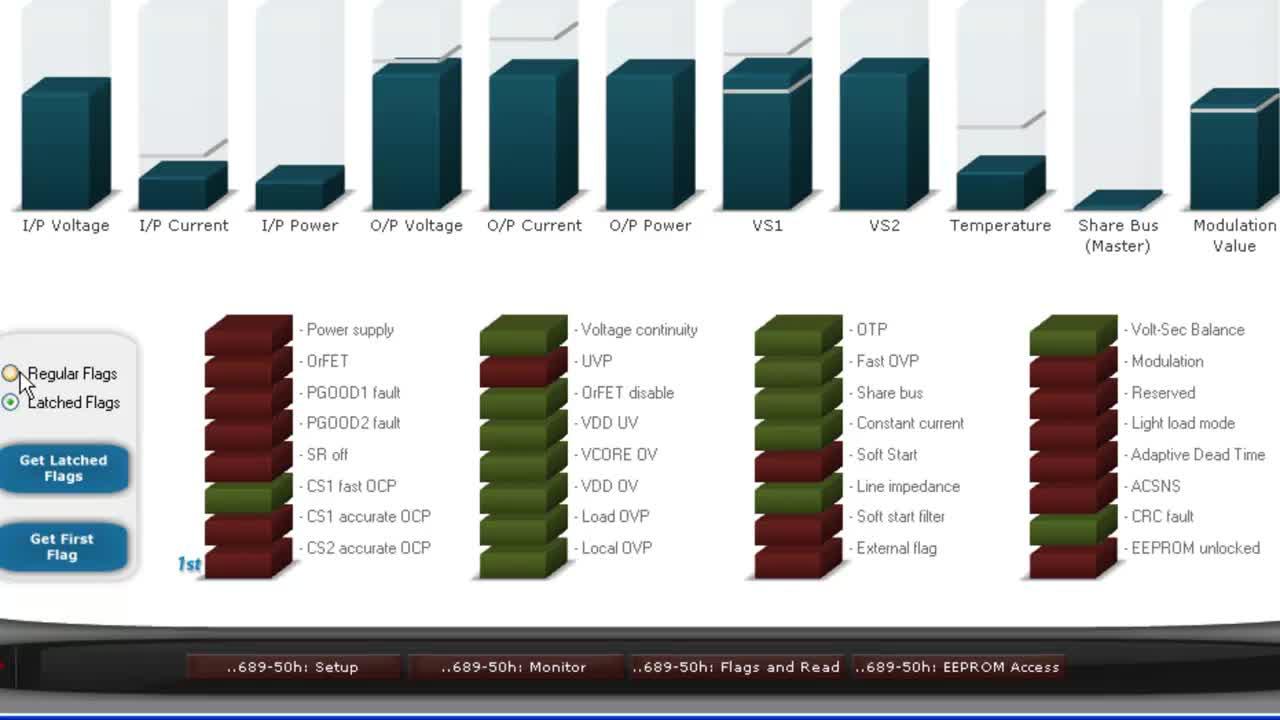

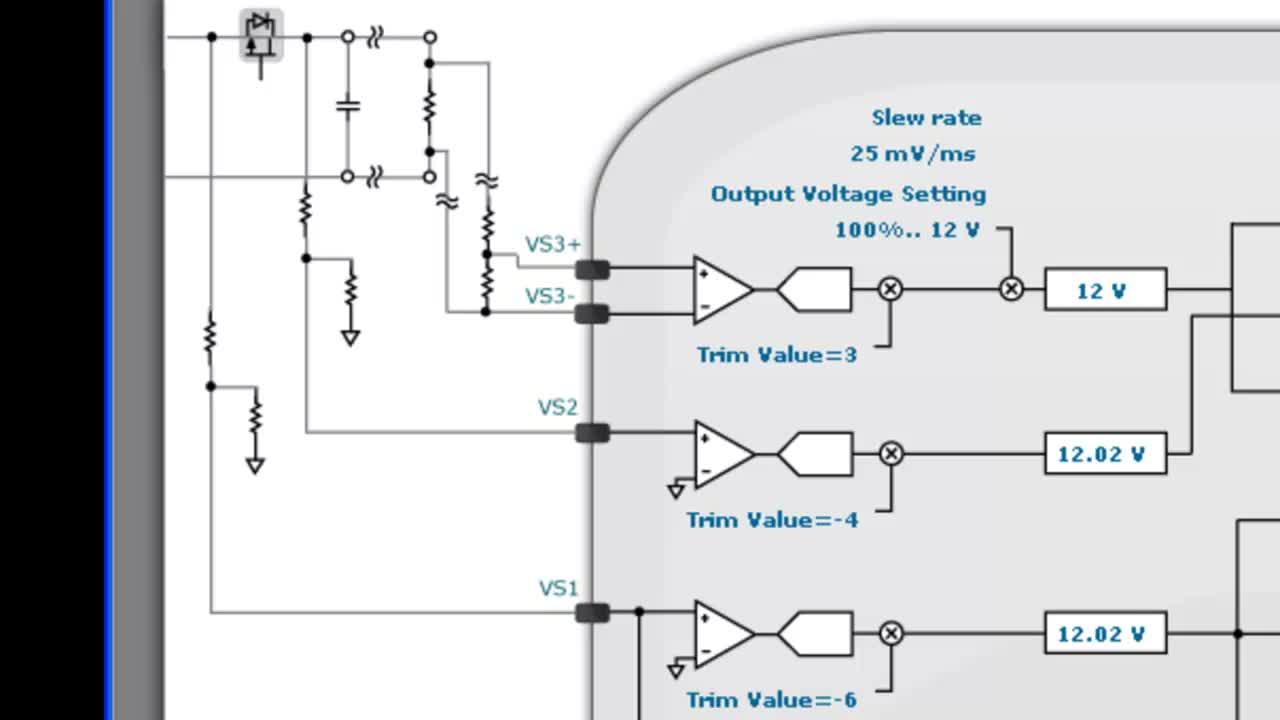

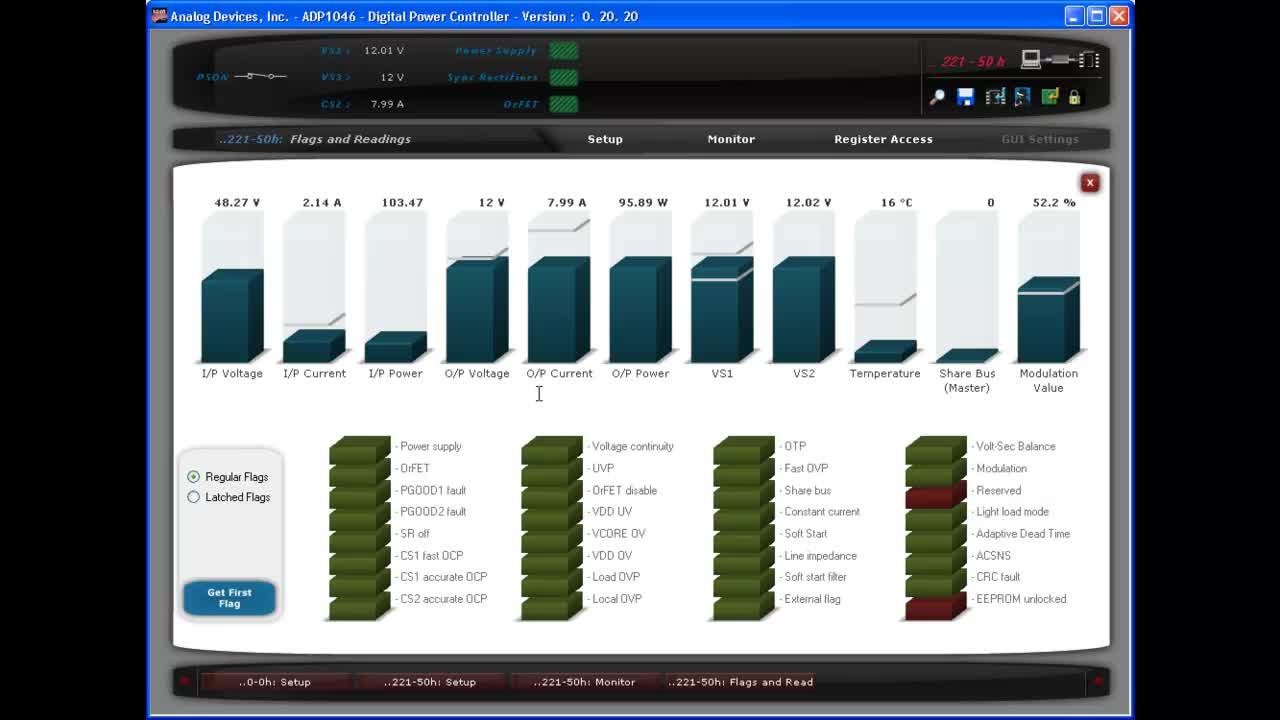

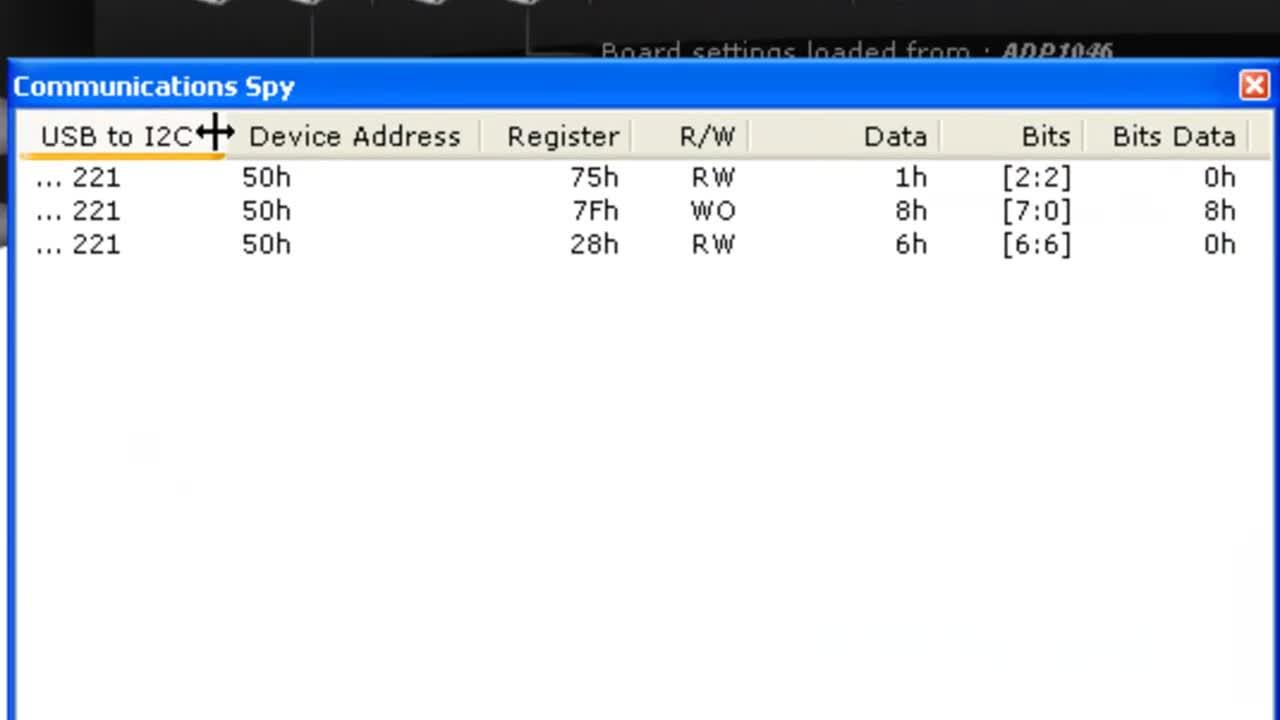

A comprehensive GUI is provided for easy design of loop filter characteristics and programming of the safety features. The industry-standard I2C bus provides access to the many monitoring and system test functions.
The ADP1046A is available in a 32-lead LFCSP and operates from a single 3.3 V supply.
- AC-to-DC power supplies
- Isolated dc-to-dc power supplies
- Redundant power supply systems
- Server, storage, network, and communications infrastructure
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

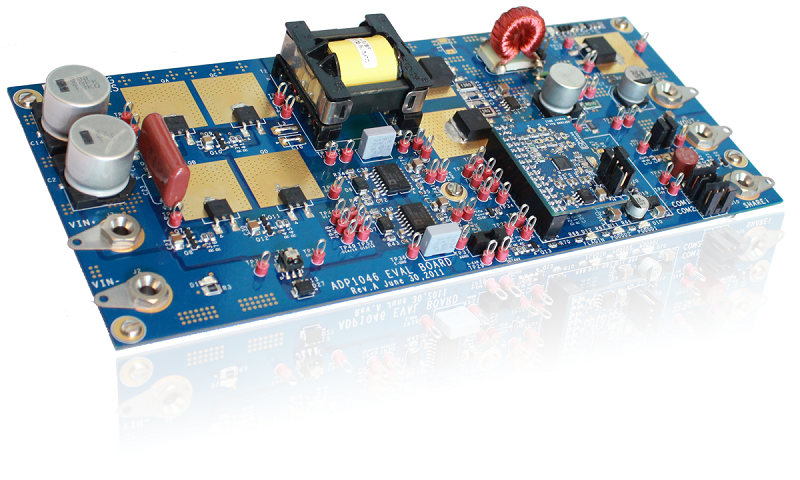

The evaluation board features an isolated full bridge topology operating at 100KHz switching frequency. Its output is rated at deliver 12V, 9A with an input ranging from 36-60VDC. The board features the ADP1046A digital controller as the main controller for providing various functions such as current PWMs and OrFET control. It also provides protection features like OCP and OVP.
Documentation & Resources
AN-1383: ADP1046A EEPROM Programming (Rev. A)2/22/2016525 K
AN-1253: Layout Considerations for Digital Power Management (ADP1046A) (Rev. 0)2/14/2015685 kB
ADP1046A LLC Resonant Converter with Synchronous Rectification3/14/20141524 kB
ADP1046A Wide Input Range, Full Bridge Phase Shifted Topology5/28/20139523 kB
ADP1046A 100 Watt Evaluation Kit8/27/20125868 kB
ADP1046A 300W Quarter Brick Module8/27/20124766 kB
Digital Power Platforms for Next-gen Isolated power Delivery4/17/2019
Troubleshooting the ADP1046A Digital Power Controller11/28/2018
General Settings of the ADP1046A Digital Power Controller11/28/2018
Protection Features of the ADP1046A Digital Power Controller11/28/2018
Behind the Scenes of the ADP1046A Digital Power Controller11/28/2018
PWM Settings of the ADP1046A Digital Power Controller11/28/2018
Powering up the ADP1046A, 100W Demo Board11/28/2018
Complete Isolated DC-to-DC Converter Development Platform11/28/2018
Simple Circuit Allows Backward Compatibility for Digital Power Controllers5/1/2014 Analog Dialogue
