Overview
Features and Benefits
ADMV8420ACPZ Features
- Amplitude settling time: 200 ns
- Wideband rejection: ≥20 dB
- Single-chip implementation
- 24-lead, 4 mm × 4 mm, RoHS-compliant LFCSP
ADMV8420CHIPS Features
- Amplitude settling time: 200 ns
- Wideband rejection: ≥30 dB
- Single chip implementation
- 7-pad, 2.550 mm × 1.370 mm × 0.1016 mm, RoHS-compliant CHIP (see the Outline Dimensions section)
Product Details
ADMV8420ACPZ
The ADMV8420 is a monolithic microwave integrated circuit (MMIC), tunable band-pass filter that features a user-selectable pass band frequency. The 3 dB filter bandwidth is approximately 20%, and the 20 dB filter bandwidth is approximately 40%. Additionally, the center frequency (fCENTER) varies between 11.1 GHz to 19.6 GHz by applying a center frequency control voltage between 0 V to 15 V. The usable pass band corner frequencies (fCORNER) span from 10 GHz to 21.7 GHz. This tunable filter is a smaller alternative to switched filter banks and cavity tuned filters. The ADMV8420 has minimal microphonics due to the monolithic design and provides a dynamically adjustable solution in advanced communications applications.
ADMV8420CHIPS
The ADMV8420 is a monolithic microwave IC (MMIC), tunable band-pass filter (BPF) that features a user‑selectable pass band frequency. The 3 dB filter bandwidth is approximately 20%, and the 20 dB filter bandwidth is approximately 40%. Additionally, the center frequency (fCENTER) varies between 10.5 GHz to 21 GHz by applying a center frequency control voltage (VFCTL) between 0 V to 15 V. The usable pass band 3 dB corner frequency (f3dB) spans from 10 GHz to 22.8 GHz. This tunable filter is a smaller alternative to switched filter banks and cavity tuned filters. The ADMV8420 has minimal microphonics due to the monolithic design and provides a dynamically adjustable solution in advanced communications applications.
Applications
- Test and measurement equipment
- Military radar and electronic warfare systems
- Very small aperture terminal (VSAT) communications
- Airport scanners
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

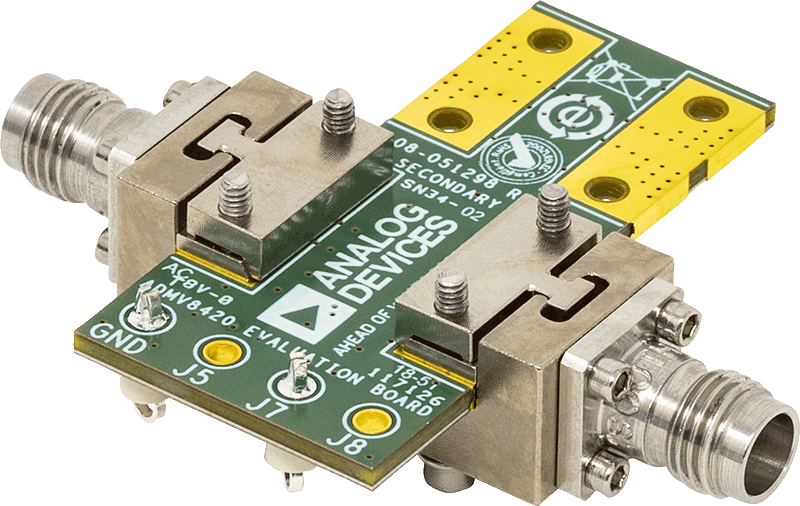

Evaluation Kits (1)
Documentation & Resources
Tools & Simulations
S-Parameters
S-Parameter Files (S2P)
S-Parameters for RF and Microwave Tunable Filters
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| ADMV8420ACPZ | Material Declaration | Reliability Data | 24-Lead LFCSP (4mm x 4mm w/ EP) | |
| ADMV8420ACPZ-R5 | Material Declaration | Reliability Data | 24-Lead LFCSP (4mm x 4mm w/ EP) | |
| ADMV8420CHIPS | Material Declaration | Reliability Data | CHIPS OR DIE | |
| ADMV8420CHIPS-SX | Material Declaration | Reliability Data | CHIPS OR DIE | |
| Wafer Fabrication Data |
