ADMV4630

RECOMMENDED FOR NEW DESIGNS

Ku Band Upconverter with Integrated Fractional-N PLL and VCO

Data Sheet (Rev. B) Product Selection Table

Part Models: 2
1ku List Price: Starting From $25.63

Viewing:

Overview

IF to Ku band upconverter with integrated PLL
RF output frequency range: 14.0 GHz to 14.5 GHz
Internal LO frequency range: 8.7 GHz to 10.7 GHz
Noise floor density: <−140 dBm/Hz
Matched 50 Ω single-ended RF output and IF input
On-chip power detector

On-chip ADC
Provides transmitter synthesizer lock detect
Programmable at 20 MHz via 4-wire SPI interface
Transmitter mute function
40-lead, 6 mm × 6 mm LFCSP package

The ADMV4630 is a Ku band upconverter optimized for various satellite communication (SATCOM) user terminals that operate in the 14.0 GHz to 14.5 GHz frequency range.

The ADMV4630 local oscillator (LO) signal is generated internally via the on-chip Integer N (INT) synthesizer. The internal synthesizer enables LO frequency coverage from 8.7 GHz to 10.7 GHz. The input intermediate frequency (IF) signals from 3 GHz to 5 GHz are upconverted to an RF of 14.0 GHz to 14.5 GHz. The chip includes filtering to attenuate both the LO feedthrough and unwanted lower sideband. The chip also includes a digital step attenuator at the IF input to provide up to 31 dB of gain control range with 1 dB steps to adjust for preceding cable losses. The transmitter output is automatically muted if the synthesizer becomes unlocked.

The digital serial peripheral interface (SPI) allows fast frequency and gain programming. In addition to the digital SPI control, an analog control pin (TX_MUTE) quickly powers down all circuits and places the receiver in standby mode for power saving. Another analog general-purpose input/output (AGPIO) pin can be used either as an input to be read by the on-chip analog-to-digital converter (ADC), or as an analog output for proportional to absolute temperature (PTAT) voltages. There are also three digital GPIO pins that output logic levels to control external devices using the SPI.

The ADMV4630 upconverter comes in a compact, thermally enhanced, 6 mm × 6 mm, 40-lead lead frame chip scale package (LFCSP). The ADMV4630 operates over the −40°C to +85°C case temperature range.

Applications

SATCOM user terminals

Part Models: 2
1ku List Price: Starting From $25.63

Documentation

Data Sheet 1

ADMV4630: 14.0 GHz to 14.5 GHz, SATCOM, Ku Band Upconverter Data Sheet (Rev.B) 08/08/2022

User Guide 1

UG-1642: Evaluating the ADMV4630 14.0 GHz to 14.5 GHz, SATCOM, Ku-Band Upconverter (Rev.A) 08/08/2022

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADMV4630BCPZN	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADMV4630BCPZN-RL7	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

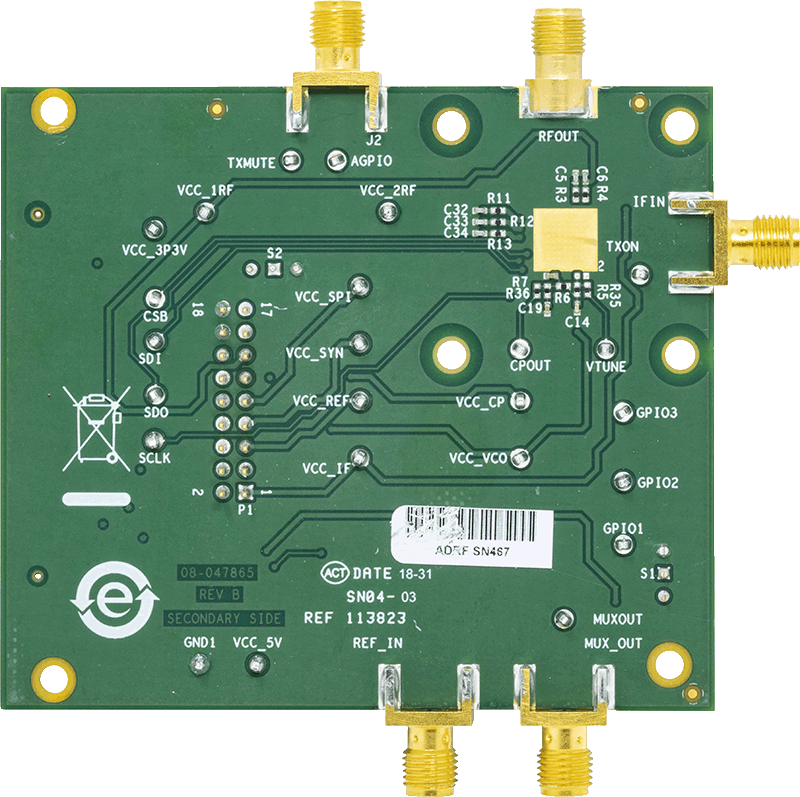

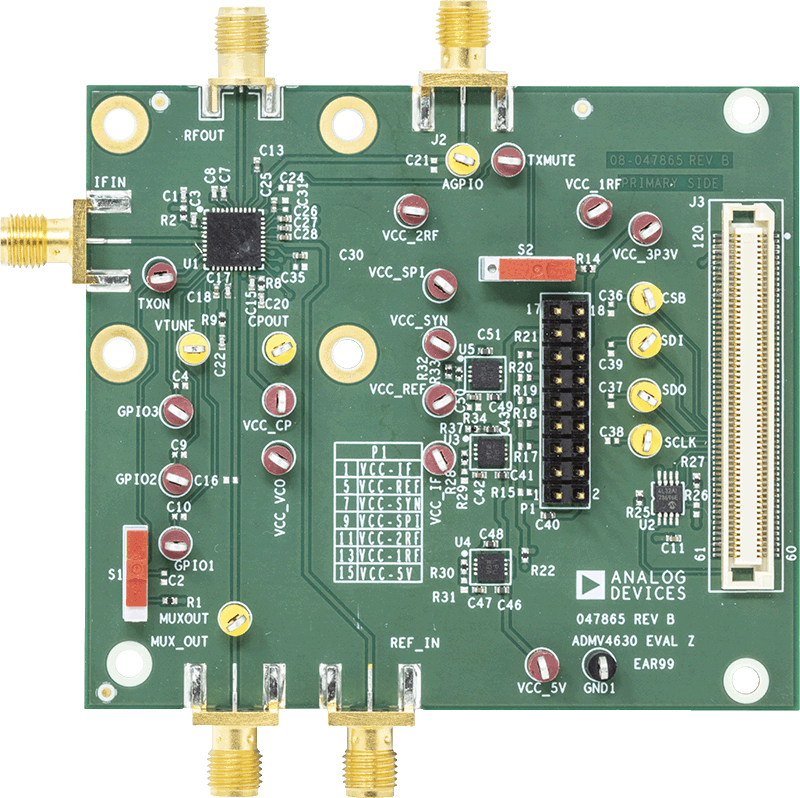

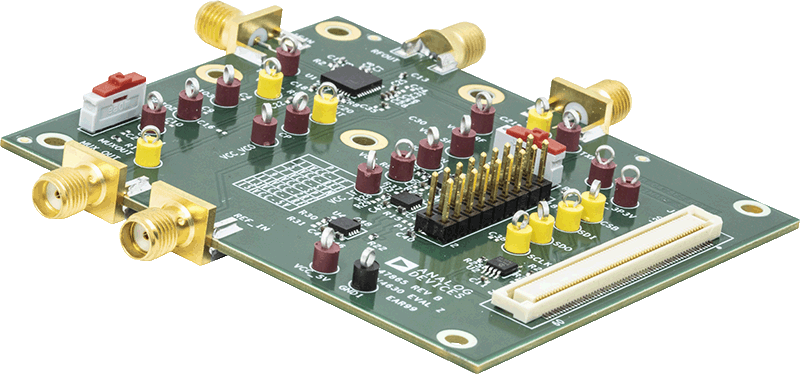

Evaluating the ADMV4630 14.0 GHz to 14.5 GHz, SATCOM, Ku-Band Upconverter

Buy Now View Details

Features and Benefits

Fully featured evaluation board for the ADMV4630
On-board SDP-S connector for SPI control
Simplified power-up with on-board LDO regulators
5 V operation
ACE software interface for SPI control

Product Details

The evaluation board incorporates the ADMV4630, low dropout (LDO) regulators, and the EVAL-SDP-CS1Z (SDP-S) controller board to allow simplified, efficient evaluation of the ADMV4630. The SDP-S controller board allows the configuration of the ADMV4630 register map through the Analysis, Control, Evaluation (ACE) software. The LDO regulators allow the EVAL-ADMV4630Z to be powered by a 5 V single supply.

The ADMV4630 is a Ku-band upconverter optimized for various satellite communication (SATCOM) user terminals operating in the 14.0 GHz to 14.5 GHz frequency range. The ADMV4630 upconverter comes in a compact, thermally enhanced, 6 mm × 6 mm, 40-lead frame chip scale package (LFCSP). The ADMV4630 operates over the −40°C to +85°C case temperature range.

For full details on the ADMV4630, see the ADMV4630 data sheet, which must be consulted in conjunction with this user guide when using the EVAL-ADMV4630Z.
