Features and Benefits
- Fixed gain of 15 dB
- Operation from 50 MHz to 4.0 GHz
- Highest dynamic range gain block
- Input/output internally matched to
- Integrated bias control circuit
- OIP3 of 43.0 dBm at 900 MHz
- P1dB of 19.0 dBm at 900 MHz
- Noise figure of 3.7 dB at 900 MHz
- Single 5 V power supply
- Low quiescent current of 83 mA

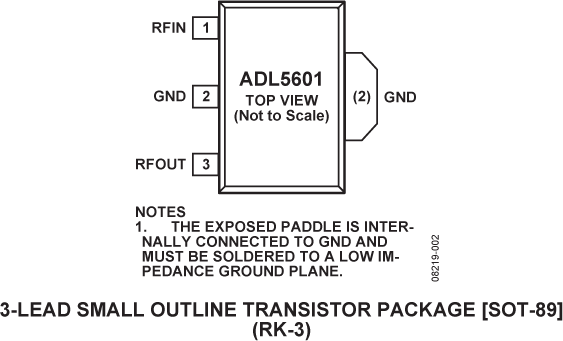

- Thermally efficient SOT-89 package
- ESD rating of ±1.5 kV (Class 1C)
Product DetailsThe ADL5601 is a broadband, 15 dB linear amplifier that operates at frequencies up to 4.0 GHz. The device can be used in a wide variety of cellular, cable television (CATV), military, and instru-mentation equipment.
The ADL5601 provides the highest dynamic range available from an internally matched gain block. This is accomplished by providing extremely low noise figures and very high OIP3 speci-fications simultaneously, across the entire 4.0 GHz frequency range.
The ADL5601 provides a gain of 15 dB, which is stable over frequency, temperature, and supply voltage, as well as from device to device. The device is internally matched to 50 Ω at the input and output, making the ADL5601 very easy to implement in a wide variety of applications. Only input/output ac coupling capacitors, power supply decoupling capacitors, and an external inductor are required for operation.
The ADL5601 is fabricated on an InGaP heterojunction bipolar transistor (HBT) process and has an ESD rating of ±1.5 kV (Class 1C). The device is available in a thermally efficient SOT-89 package.
The ADL5601 consumes 83 mA on a single 5 V supply and is fully specified for operation from −40°C to +85°C.
A fully populated RoHS-compliant evaluation board is available.
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
ADL5601-EVALZ is a fully populated, 4-layer, FR4-based evaluation board. For normal operation it requires a single 5 V/200 mA power supply. The 5 V power supply should be connected to the test loops labeled VCC and GND. The RF input is applied to the SMA connector labeled RFIN. The RF output is available at the SMA connector labeled RFOUT.
