Features and Benefits
- RF output frequency range:
0.6 GHz to 3 GHz
- Output IP3: 37 dBm at 2.2 GHz
- Output P1dB: 28 dBm at
- Noise figure of input amplifier:
1 dB at 2.2 GHz
- Maximum gain: 31.5 dB at
- Voltage variable attenuation range: 45 dB
- 0 V to 3.3 V attenuation control range
- Integrated bypass switch for low noise VGA
- Matched 50 Ω input stage
- 3.3 V to 5 V single supply

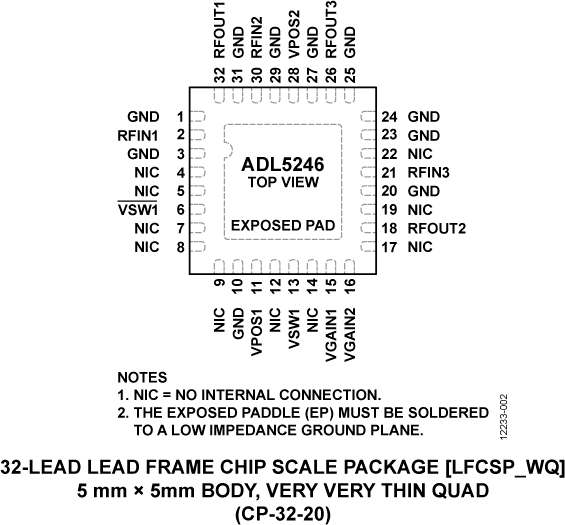

- 32-lead, 5 mm × 5 mm LFCSP package

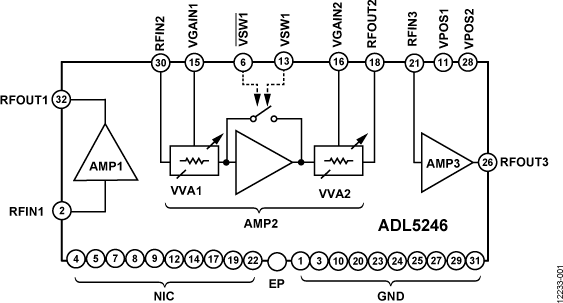

Product DetailsThe ADL5246 is a high performance, low noise variable gain amplifier (VGA) optimized for multistandard base station receivers and point to point receive (Rx) and transmit (Tx) applications. The low noise figure and excellent linearity performance allow the device to be used in a variety of applications.
The ADL5246 is fabricated on an advanced GaAs process. The device is available in a 32-lead, RoHS-compliant, 5 mm × 5 mm LFCSP and thermally rated to operate over the −40°C to +105°C temperature range.
- Multistandard radio receivers
- Point to point Rx and Tx
- Military and aerospace
Product Lifecycle Last Time Buy
All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
Evaluation Kits (1)
ADL5246-EVALZ is a fully populated, 4-layer, FR408-based evaluation board. For operation, it requires a 5 V/500 mA power supply and two 3 V/100 mA power supplies. The variable gain amplifier (AMP2) is analog controlled and the 0 V to 3.3 V gain control pins maybe operated independently or in tandem. The internal bypass switch operates with a 3.3 V complementary logic. The LNA (AMP1), VGA (AMP2), and DRIVER (AMP3) can be individually biased using the test loops labeled VCC1, VPOS1, VPOS2, VCC3 and GND. VCC1 provides bias to the LNA (AMP1). VPOS1 and VPOS2 provide the bias for the VGA (AMP2). VPOS1 provides bias for the VGA amp circuit and VPOS2 provides bias to the internal VVAs and to the bias circuit of the DRIVER (AMP3). VPOS2 and VCC3 must be connected when operating the DRIVER. VPOS1 and VPOS2 are connected to an internal power plane via R6 and R7. Removing R6 and R7 allows VPOS1 and VPOS2 to be powered separately. A fully cascaded signal chain, an LNA driving the VGA, followed by the DRIVER, can be configured using the available resistor and capacitor pads.
Tools & Simulations
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
