ADIS16266

Obsolete

Top

Suggested Replacement Parts :

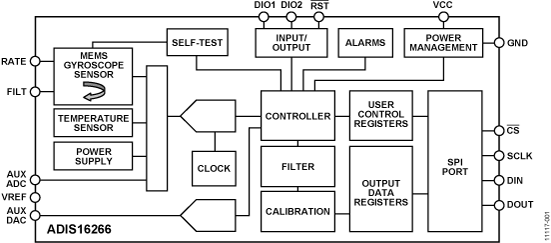

Overview

Product Categories

Sensors and MEMS
- Gyroscopes

Product Lifecycle Obsolete

The models in this product family are no longer available.

Replacement Parts

To find replacement products for this part:

Availability

This model is Obsolete and all models in the family are Obsolete

Compatibility

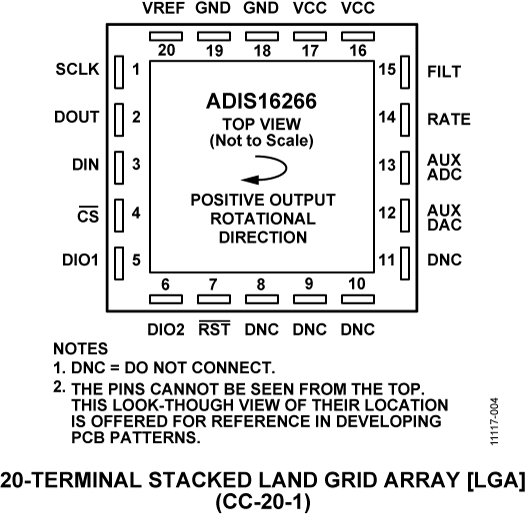

Pinout identical, but electrical specifications, package and temperature range may vary

Rochester Electronics and Arrow Supply Assurance have partnered with Analog Devices to source products that have been previously discontinued or have become obsolete.

Comparable Parts Click to see all in Parametric Search

Evaluation Kits (2)

ADIS16266/PCB

View Detailed Evaluation Kit Information

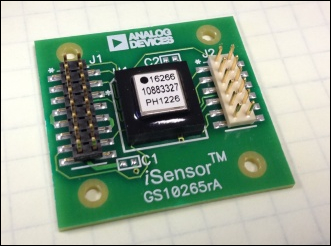

The ADIS16266/PCBZ is a breakout board that provides (1) ADIS16266BCCZ and (1) interface PCB to simplify the process of prototyping during the early stages of system design and evaluation. The ADIS16266BCCZis a fully-calibrated, digital MEMS gyroscope, which provides a serial peripheral interface (SPI) for all digital communications. It is in a 20-lead, LGA package that minimizes board space but does not support typical prototype soldering processes. The interface PCB provides access to the ADIS16266BCCZ, using a dual-row, 16-pin connector, which supports standard ribbon cable systems and hand-soldering connection techniques. This interface is also compatible with the EVAL-ADIS evaluation system.

Resources

ADIS16266/PCB Data Sheet (Rev. A)

PDF

463.52 K

EVAL-ADIS

View Detailed Evaluation Kit Information

The EVAL-ADIS system provides a simple, PC-based tool, for evaluating iSensor products, for those who are not ready to integrate them into embedded processor systems. This system supports application software that enable basic demonstration, individual register access and high-speed data capture for each supported device. Each application software package comes with an installation wizard, which facilitates simple installation and also includes a simple USB-driver package that is easy to use. All software packages associated with the EVAL-ADIS are compatible with Windows XP, Vista and 7 and provides both 32-bit and 64-bit USB drivers. The EVAL-ADIS circuit board is 0.125” thick, which enables pre-drilled, pre-tapped mounting holes for each iSensor device. The mounting holes accommodate M2x0.4mm machine screws. This kit also includes 5 sets of M2x0.4 machines screws, which provide for the various package thickness and eliminate the need to procure additional hardware. The integrated power system eliminates the need for external power supplies in most cases, but does provide for an external power supply input, for supply-sensitivity testing. The power system uses the USB’s +5V and provides a linear regulator option for +3.3V devices.

Features & Benefits

PC/USB-Compatible Evaluation for Gyroscopes & IMU

Windows XP, Vista, & 7
32- and 64-bit USB drivers
No external supply required

IMU Evaluation Software

Full-rate, synchronous data acquisition (Data Capture)
Register configuration & review (Register Access)
Real-time waveform recorder (Main Screen)

Kit includes:

ADIS16xxx to USB Interface Board
6-ft Mini-USB Cable
M2x0.4 machine screw kit (20pcs)

Resources

Software

Documentation

View All (1)
Obsolete Data Sheets (1)

Obsolete Data Sheets (1)

PDF

895.16 K

ADIS16266: ±14,000°/sec Digital Gyroscope Sensor Obsolete Data Sheet (Rev. B)

Software & Systems Requirements

Evaluation Software

ZIP

671.63 K

IMU Evaluation Software for the EVAL-ADISx Platforms (Rev. V.1.18.22)

IMU Evaluation Software: Problems, Solutions and Updates

ZIP

16.15 M

USB Driver File for EVAL-ADISx Platforms (v2.1.960.2, 12/12/2017)

Reference Materials

View All (1)
Technical Articles (1)

Technical Articles (1)

A Simple Calibration for MEMS Gyroscopes
