ADIS16203

Programmable 360° Inclinometer

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 1
1ku List Price Starting From $37.30
Features
  • 0° to 360° Inclinometer
    • ±180 output format option
  • 14-bit digital inclination outputs
    • Linear output, 0.025° resolution
  • 12-bit digital temperature sensor output
  • Digitally controlled bias calibration
  • Digitally controlled sample rate
  • Digitally controlled filtering
  • Digitally controlled direction/orientation
  • Dual alarm settings with rate/threshold limits
  • Auxiliary digital I/O
  • Digitally activated self test
  • Digitally activated low power mode
  • SPI®-compatible serial interface
  • Auxiliary 12-bit ADC input and DAC output
  • Single-supply operation:3.0V to 3.6V
  • 3500 g powered shock survivability
Additional Details
show more Icon

The ADIS16203 is a complete incline-angle measurement system in a single compact package enabled by the Analog Devices, Inc., iSensor integration. By enhancing the Analog Devices iMEMS® sensor technology with an embedded signal processing solution, the ADIS16203 provides factory-calibrated, sensor-to-digital incline-angle data in a convenient format that can be accessed using a serial peripheral interface (SPI). The SPI interface provides access to multiple measurements: 360° linear inclination angles, ±180° linear incline angles, temperature, power supply, and one auxiliary analog input. Easy access to calibrated digital sensor data provides developers with a system-ready device, reducing development time, cost, and program risk.

Unique characteristics of the end system are accommodated easily through several built-in features, such as a single-command offset calibration, along with convenient sample rate and band-width control.

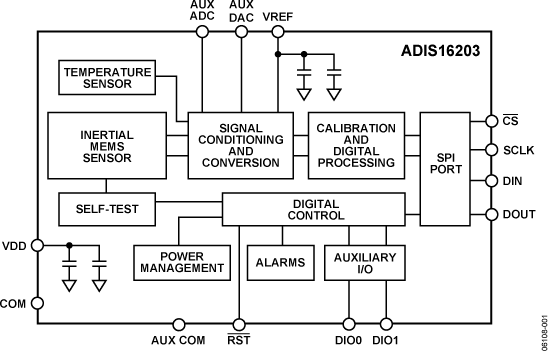

The ADIS16203 offers the following embedded features that eliminate the need for external circuitry and provide a simplified system interface:

  • Configurable alarm function
  • Auxiliary 12-bit analog-to-digital converter (ADC)
  • Auxiliary 12-bit digital-to-analog converter (DAC)
  • Configurable digital I/O port
  • Digital self-test function

The ADIS16203 offers two power management features for managing system-level power dissipation: low power mode and a configurable shutdown feature.

The ADIS16203 is available in a 9.2 mm × 9.2 mm × 3.9 mm laminate-based land grid array (LGA) package with a temperature range of −40°C to +125°C.

APPLICATIONS

  • Tilt sensing, inclinometers
  • Platform control, stabilization, and leveling
  • Motion/position measurement
  • Monitor/alarm devices (security, medical, safety)
  • Robotics
Part Models 1
1ku List Price Starting From $37.30

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADIS16203CCCZ
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 1, 2020

- 17_0204

Addition of Analog Devices, Inc. General Trias (ADGT) as Qualified Test Site for ADIS16201, ADIS16203 and ADIS16209

May 22, 2017

- 17_0061

iSensor Land Grid Array (LGA) Laminate Change to Halogen Free

Jan 3, 2017

- 16_0167

iSensor Product Enhancement to the ADIS16201, ADIS16203 and ADIS16209

Feb 10, 2016

- 16_0019

Addition of IMI Philippines as Qualified Test Site for iSensor Land Grid Array (LGA) Products

Apr 9, 2014

- 13_0070

CANCELLED: LGA Product Family PCB Plating Change

May 11, 2012

- 10_0181

ADiS (Integrated Sensor) Land Grid Array (LGA) Assembly Site Transfer

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 1, 2020

- 17_0204

arrow down

Addition of Analog Devices, Inc. General Trias (ADGT) as Qualified Test Site for ADIS16201, ADIS16203 and ADIS16209

May 22, 2017

- 17_0061

arrow down

iSensor Land Grid Array (LGA) Laminate Change to Halogen Free

Jan 3, 2017

- 16_0167

arrow down

iSensor Product Enhancement to the ADIS16201, ADIS16203 and ADIS16209

Feb 10, 2016

- 16_0019

arrow down

Addition of IMI Philippines as Qualified Test Site for iSensor Land Grid Array (LGA) Products

Apr 9, 2014

- 13_0070

arrow down

CANCELLED: LGA Product Family PCB Plating Change

May 11, 2012

- 10_0181

arrow down
Evaluation Kit

Evaluation Kits 3

reference details image

ADIS16203/PCB

ADIS16203 Daughter Board

zoom

ADIS16203/PCB

ADIS16203 Daughter Board

ADIS16203 Daughter Board

Product Detail

The ADIS16203/PCBZ is a breakout board that provides (1) ADIS16203CCCZ and (1) interface PCB to simplify the process of "prototyping" during the early stages of system design and evaluation. The ADIS16203CCCZ is a fully-calibrated, digital MEMS inclinometer, which provides a serial peripheral interface (SPI) for all digital communications. It is in a 16-lead, LGA package that minimizes board space but does not support typical prototype soldering processes. The interface PCB provides access to the ADIS16203CCCZ, using dual-row, 12-pin connectors, which supports standard ribbon cable systems and hand-soldering connection techniques.

reference details image

EV-STRUCTURAL-ARDZ

Structural Health and Smart Building/Bridge Activity Sensor

zoom

EV-STRUCTURAL-ARDZ

Structural Health and Smart Building/Bridge Activity Sensor

Structural Health and Smart Building/Bridge Activity Sensor

Features and Benefits

  • Temperature Sensor
    • High Accuracy and Precision
      • ±0.1°C accuracy from +20°C to +50°C
      • ±0.15°C accuracy from -20°C to +85°C
    • Safety and Compliance
      • High and low temperature alarms
  • Accelerometer
    • Built-in motion detection features make tap, double-tap, activity, inactivity, and free-fall detection trivial
    • Multipurpose accelerometer with 10- to 13-bit resolution for use in a wide variety of applications
  • Inclinometer
    • Digital self-test function
    • Configurable alarm function
    • ±180 output format option

Product Detail

The EV-STRUCTURAL-ARDZ is a vibration sensor that uses the ADXL343 digital output MEMS accelerometer chip and the ADIS16203 programmable 360° inclinometer. Aside from providing vibration data, this sensor node also features the MAX30210 digital temperature sensor which gives the option to shut down sensitive machines and equipment for smart motor sensing applications.

The on-board inclinometer can be used to detect if the horizontal position of the sensor changes, which points towards a collapse of the structure where the sensor was deployed.

APPLICATIONS

  • Structural health sensor
  • Tilt sensing, inclinometers
  • Platform control, stabilization, and leveling
  • Motion/position measurement
  • Monitor/alarm devices (security, medical, safety)
reference details image

EVAL-ADIS-FX3

ADI FX3 iSensor® Evaluation System

zoom

EVAL-ADIS-FX3

ADI FX3 iSensor® Evaluation System

ADI FX3 iSensor® Evaluation System

Features and Benefits

  • Real-time sampling of IMU at full sample rate with no loss of data guaranteed.
  • No external power needed. (Can be powered from USB port.)
  • Completely open source API, Firmware, and Evaluation GUI.
  • Schematics available
  • API includes a wrapper library for interfacing to MATLAB, Python, LabView.

Product Detail

The EVAL-ADIS-FX3 is the latest addition to the iSensor evaluation portfolio and was designed from the ground up to provide users with an easy-to-use solution for capturing reliable inertial data in lab and characterization environments. The EVAL-ADIS-FX3 incorporates the ability to capture inertial sensor data at maximum throughput while interfacing with external test equipment and reacting to external triggers.

In addition to launching a redesigned hardware platform, we’ve also developed a robust API that allows users to quickly build custom applications that capture reliable sensor data. We’ve included many useful features into the API that enable designers to characterize sensor performance in any .NET compatible environment.

APPLICATIONS

  • Inertial sensing
  • Robotics
  • Autonomous driving
  • Platform stabilization
