ADH584S

NOT RECOMMENDED FOR NEW DESIGNS

Aerospace, GaAs, InGaP, HBT, MMIC, VCO with Divide-by-4 Frequency Output, 12.5 GHz to 13.9 GHz

Viewing:

Overview

Dual Output:
- Fo = 12.5 GHz – 13.9 GHz
- Fo/4 = 3.125 GHz – 3.475 GHz
Pout: + 10 dBm Typical
Phase Noise: -110 dBc/Hz @ 100 kHz Typ

No External Resonator Needed
18-Lead Hermetic SMT Package
Screened in accordance with MIL-PRF-38535, Class Level S

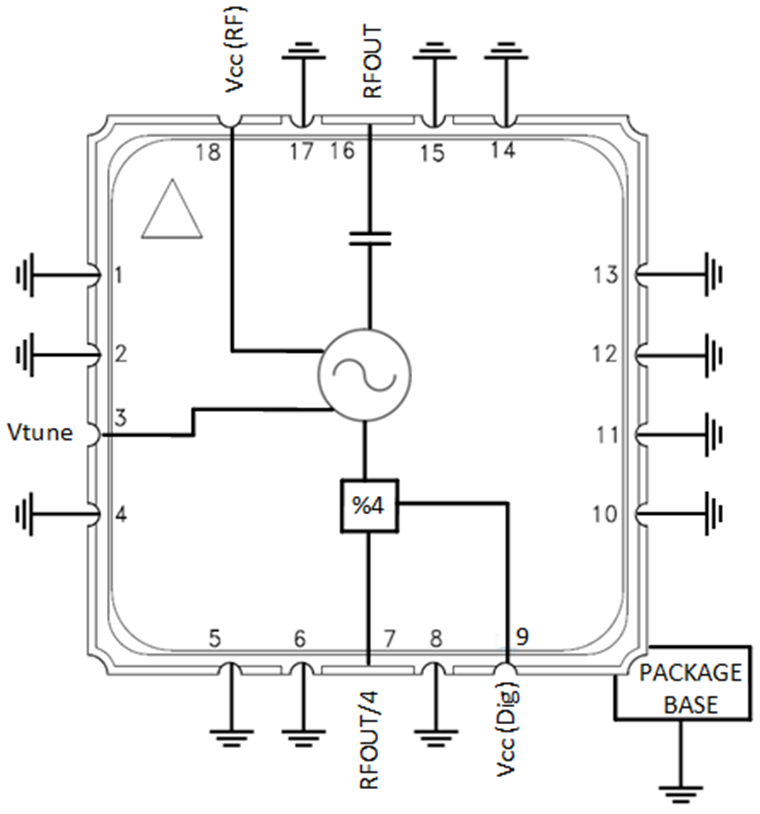

The ADH584S is a GaAs, InGaP, Heterojunction Bipolar Transistor (HBT), MMIC, VCO. The ADH584S integrates resonators, negative resistance devices, varactor diodes and feature divide-by-4 frequency output. The VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +10 dBm typical from a +5V supply voltage. The prescaler and Fo/2 functions are being disabled to conserve current. The voltage-controlled oscillator requires no external matching components.
