ADH514S

RECOMMENDED FOR NEW DESIGNS

Aerospace, GaAs, InGaP, HBT, MMIC, 11.17 GHz to 12.02 GHz, VCO with Fo/2 and Fo/4 Frequency Output.

Product Selection Table
Viewing:

Overview

  • Dual Output:
    • Fo = 11.17 GHz – 12.02 GHz
    • Fo/2 = 5.58 GHz – 6.01 GHz
  • Pout: + 7 dBm Typ.
  • Phase Noise: -110 dBc/Hz @ 100 kHz Typ.

The ADH514S is a GaAs, InGaP, Heterojunction Bipolar Transistor (HBT), MMIC, VCO. The ADH514S integrates resonators, negative resistance devices, varactor diodes and feature half frequency and divide-by-4 outputs. The VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +7 dBm typical from a +3 V supply voltage. The prescaler function can be disabled to conserve current if not required. The voltage-controlled oscillator requires no external matching components.

Applications

  • Point-to-Point/Multi-Point Radios
  • Industrial Controls
  • Satellite Communications (SATCOM)
  • Military & Space
ADH514S
Aerospace, GaAs, InGaP, HBT, MMIC, 11.17 GHz to 12.02 GHz, VCO with Fo/2 and Fo/4 Frequency Output.

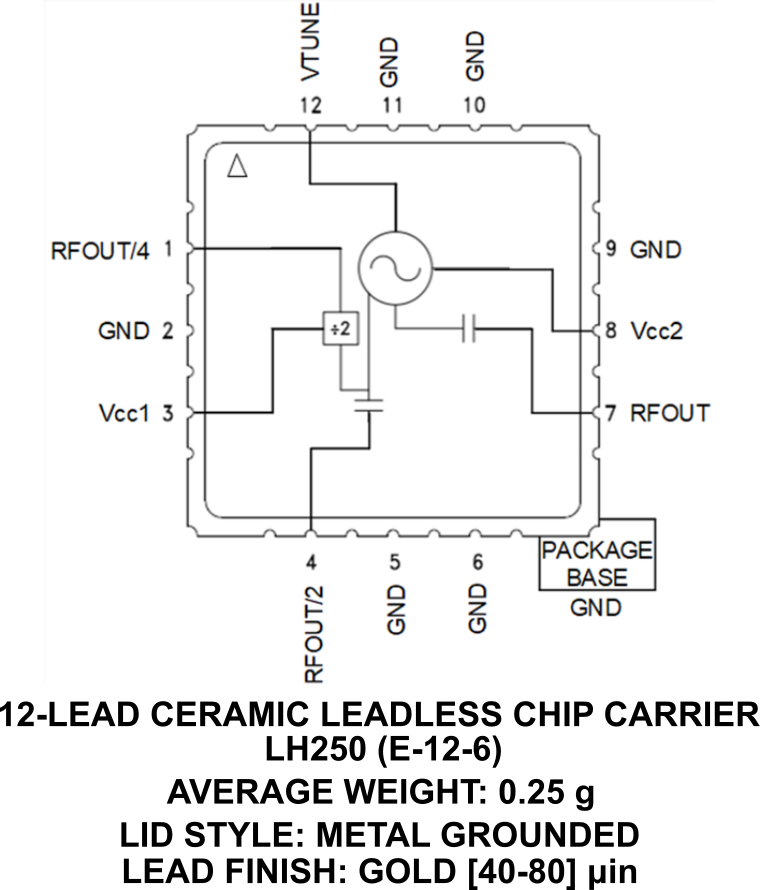

HMC8618LH250 SID
