ADH392S

PRODUCTION

3.5 GHz to 7 GHz Low Noise Amplifier

Part Models: 1
1ku List Price: Starting From $492.00

Viewing:

Overview

Gain 15.5 dB Typ
Noise Figure 2.4 dB Typ
Single Supply Voltage: +5V

50 Ohm Matched Input/Output
No External Components Required
Small Size: 1.272 mm x 0.772 mm x 0.1 mm
Screened in accordance with MIL-PRF-38534, Class K

The ADH392S is a GaAs MMIC Low Noise Amplifier die which operates between 3.5 GHz and 7.0 GHz. The amplifier provides 15.5 dB of gain, 2.4 dB noise figure, and 28 dBm OIP3 on a +5V supply voltage. The ADH392S has six bonding adjustment options which allow the user to select the bias point and output power of the device (+15 dBm to +18 dBm). The ADH392S amplifier can easily be integrated into Multi-Chip Modules (MCMs) due to its small size.

Applications

Point-to-Point Radios
VSAT
LO Driver
Military & Space

Part Models: 1
1ku List Price: Starting From $492.00

Documentation

Application Note 2

AN-2591: When It Comes to Long-Term Reliability of RF Amplifier ICs, Focus First on Die Junction Temperature 08/05/2024

AN-2622: Selecting an Analog Devices RF Low Noise Amplifier 09/04/2025

Controlled Drawings 1

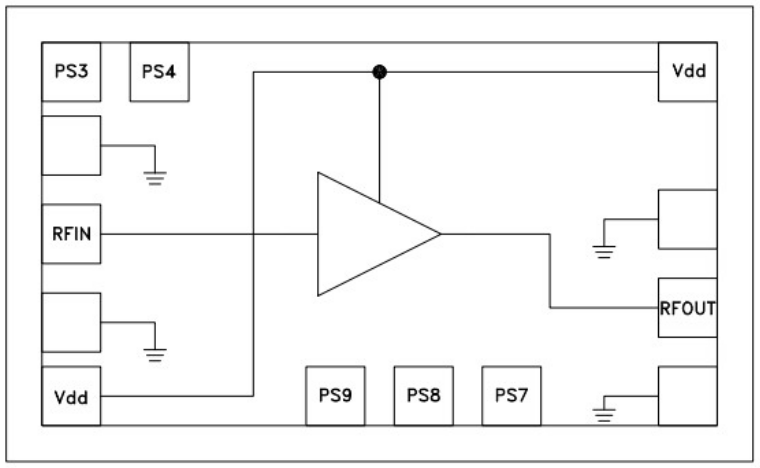

HMC3069B: 3.5 GHz to 7 GHz Low Noise Amplifier SID (Rev.C) 02/13/2025
