ADG526A

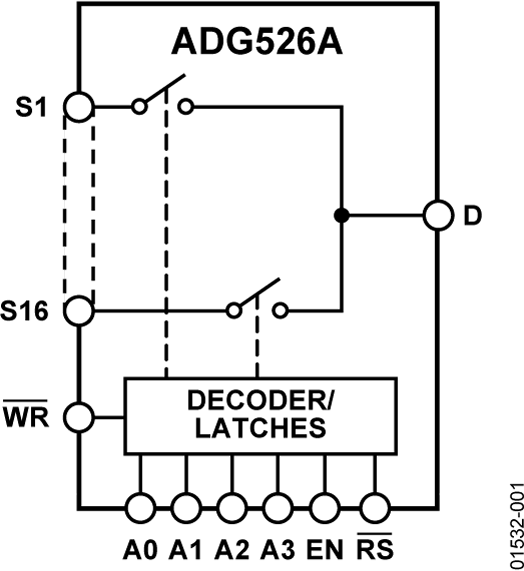

CMOS Latched ± 15 V 16 Channel Analog Multiplexer
Top
Overview
Features and Benefits
- 44 V Supply Maximum Ratings
- VSS to VDD Analog Signal Range
- Single/Dual Supply Specifications
- Wide Supply Range (10.8 V to 16.5 V)
- Microprocessor Compatible (100ns WR Pulse)
- Extended plastic temperature range (−40°C to +85°C)
- Low Leakage (20 pA typ)
- Low power dissipation (28 mW maximum)
- Available in PDIP, CERDIP, SOIC, and PLCC packages
- Superior Alternative to DG526
Product Details
The ADG526A and ADG527A are CMOS monolithic analog multiplexers with 16 single channels and dual 8 channels, respectively. On-chip latches facilitate microprocessor interfacing.
The ADG526A switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. The ADG527A switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic-compatible digital inputs.
The ADG526A and ADG527A are designed on an enhanced LC2MOS process that gives an increased signal capability of VSS to VDD and enables operation over a wide range of supply voltages. The devices can comfortably operate anywhere in the 10.8 V to 16.5 V single- or dual-supply range. These multiplexers also feature high switching speeds and low RON.
PRODUCT HIGHLIGHTS
- Single- or Dual-Supply Specifications with a Wide Tolerance. The devices are specified in the 10.8 V to 16.5 V range for both single and dual supplies.
- Easily Interfaced. The ADG526A and ADG527A can be easily interfaced with microprocessors. The WR signal latches the state of the address control lines and the enable line. The RS signal clears both the address and enable data in the latches, resulting in no output (all switches off). RS can be tied to the microprocessor reset pin.
- Extended Signal Range. The enhanced LC2MOS processing results in a high breakdown and an increased analog signal range from VSS to VDD.
- Break-Before-Make Switching. Switches are guaranteed break-before-make so that input signals are protected against momentary shorting.
- Low Leakage. Leakage currents in the range of 20 pA make these multiplexers suitable for high precision circuits.
APPLICATIONS
- Data acquisition systems
- Communication systems
- Automatic test equipment
- Microprocessor controlled systems
Product Lifecycle
Not Recommended for New Designs
This designates products ADI does not recommend broadly for new designs.
Documentation & Resources
-
AN-1024: How to Calculate the Settling Time and Sampling Rate of a Multiplexer (Rev. 0)7/31/2009
-
AN-251: Ron Modulation in CMOS Switches and Multiplexers; What It Is and How to Predict Its Effect on Signal Distortion12/6/2002
-
AN-35: Understanding Crosstalk in Analog Multiplexers1/1/2000
-
AN-250: Bandwidth, OFF Isolation and Crosstalk Performance of the AD5XXA Multiplexer Series1/1/2000
-
AN-249: Over Voltage Protection for the ADG5XXA Multiplexer Series1/1/2000
