Features and Benefits
- 44 V Supply Maximum Ratings
- VSS to VDD Analog Signal Range
- Single/Dual Supply Specifications
- Available in 28-Lead DIP, SOIC, PLCC, TSSOP and LCCC Packages
- Wide Supply Range (10.8 V to 16.5 V)
- Low Power Dissipation (28 µW max)
- Low Leakage (20 pA typ)
- See datasheet for additional features

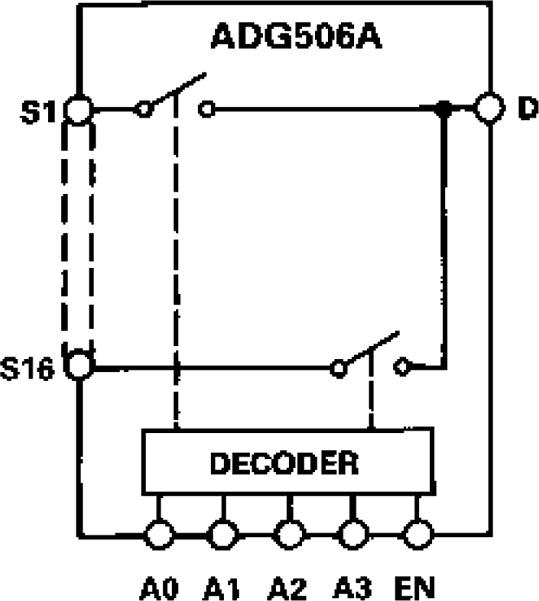

The ADG506A is a CMOS monolithic analog multiplexer with 16 channels. The ADG506A switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. It has TTL and 5 V CMOS logic compatible digital inputs.
The ADG506A is designed on an enhanced LC2MOS process, which gives an increased signal capability of VSS to VDD and enables operation over a wide range of supply voltages. The devices can operate comfortably anywhere in the 10.8 V to 16.5 V single or dual supply range. This multiplexer also features high switching speeds and low RON.
- Single/Dual Supply Specifications with a Wide Tolerance
The devices are specified in the 10.8 V to 16.5 V range for both single and dual supplies.
- Extended Signal Range
The enhanced LC2MOS processing results in a high breakdown and an increased analog signal range of VSS to VDD.
- Break-Before-Make Switching
Switches are guaranteed break-before-make so input signals are protected against momentary shorting.
- Low Leakage
Leakage currents in the range of 20 pA make these multiplexers suitable for high precision circuits.
Product Lifecycle Not Recommended for New Designs
This designates products ADI does not recommend broadly for new designs.
Documentation & Resources
AN-1024: How to Calculate the Settling Time and Sampling Rate of a Multiplexer (Rev. 0)7/31/2009
AN-251: Ron Modulation in CMOS Switches and Multiplexers; What It Is and How to Predict Its Effect on Signal Distortion12/6/2002
AN-250: Bandwidth, OFF Isolation and Crosstalk Performance of the AD5XXA Multiplexer Series1/1/2000
AN-249: Over Voltage Protection for the ADG5XXA Multiplexer Series1/1/2000
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|ADG506ABQ||Material Declaration||Reliability Data||28-Lead CerDIP|
|ADG506AKNZ||Material Declaration||Reliability Data||28-Lead PDIP|
|ADG506AKPZ||Material Declaration||Reliability Data||28-Lead PLCC|
|ADG506AKPZ-REEL||Material Declaration||Reliability Data||28-Lead PLCC|
|ADG506AKRZ||Material Declaration||Reliability Data||28-Lead SOIC (Wide)|
|ADG506AKRZ-REEL||Material Declaration||Reliability Data||28-Lead SOIC (Wide)|
|ADG506ATE/883B||Material Declaration||Reliability Data||28 ld LCC|
|ADG506ATQ||Material Declaration||Reliability Data||28-Lead CerDIP|
|ADG506ATQ/883B||Material Declaration||Reliability Data||28-Lead CerDIP|
|Wafer Fabrication Data|
