ADG1634L
4.7 Ω RON, Quad SPDT Switch with 1.2 V and 1.8 V JEDEC Logic Compliance
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- 4.7 Ω typical on resistance for ±5 V dual supply at 25°C
- 1.2 Ω on-resistance flatness for ±5 V dual supply at 25°C
- Fully specified at ±5 V, +12 V, +5 V, and +3.3 V
- ±3.3 V to ±8 V dual-supply operation
- 3.3 V to 16 V single-supply operation
- VL supply for low logic level compatibility
- 1.8 V JEDEC standard compliant
- 1.2 V JEDEC standard compliant
- Rail-to-rail operation
- 24-lead, 4 mm × 4 mm LFCSP
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADG1634L is a monolithic industrial CMOS (iCMOS®) analog switch comprising four independently selectable single-pole, double-throw (SPDT) switches, respectively.
All channels exhibit break-before-make switching action that prevents momentary shorting when switching channels. An EN input on the ADG1634L is used to enable or disable the device. When disabled, all channels are switched off. The switch is enabled with a Logic 1 EN input, while the INx input defines the state of the SPDT switch (see Table 12 in the data sheet).
The ultralow on resistance and on-resistance flatness of the switch makes it an ideal solution for data acquisition and gain switching applications, where low distortion is critical. iCMOS construction ensures ultra low power dissipation, making the device ideally suited for portable and battery-powered instruments.
An external VL supply provides flexibility for lower logic control. The ADG1634L is both 1.2 V and 1.8 V JEDEC standard compliant.
APPLICATIONS
- Communication systems
- Medical systems
- Audio signal routing
- Video signal routing
- Automatic test equipment
- Data acquisition systems
- Battery-powered systems
- FPGA and microcontroller systems
- Sample-and-hold systems
- Relay replacements
PRODUCT HIGHLIGHTS
- 8.2 Ω maximum on resistance over temperature.
- Minimum distortion.
- VL supply for low logic level compatibility.
- JEDEC standard compliant for both 1.2 V and 1.8 V logic levels.
- Guaranteed switch off when digital inputs are floating.
- 24-lead, 4 mm × 4 mm LFCSP.
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADG1634L
Documentation
Filters
1 Applied
-
All
-
User Guide
-
Data Sheet
-
All
-
English
-
Japanese
Data Sheet
2
User Guide
1
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADG1634LYCPZ-REEL7 |
24-Lead LFSCP (4mm x 4mm x 0.95mm w/ EP)
|
|
- ADG1634LYCPZ-REEL7
- Pin/Package Drawing
-
24-Lead LFSCP (4mm x 4mm x 0.95mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
Internal Power Switch Boost Regulators1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
1 A/0.6 A, DC-to-DC Switching Regulator with Independent Positive and Negative Outputs |
|||
|
Negative Linear Regulators (LDO)1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
–28 V, −200 mA, Low Noise, Linear Regulator |
|||
|
Positive Linear Regulators (LDO)1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator |
|||
Evaluation Kits 2
EVAL-ADG1634L
Evaluating the ADG1634L 4.7 Ω RON, Quad SPDT Switch with 1.2 V and 1.8 V JEDEC Logic Compliance
Features and Benefits
- Single inline headers provide flexibility for the field programmable gate array (FPGA) or microcontroller 1.2 V or 1.8V logic input signals
- SMD pin resistor or capacitor sockets available for the addition of passive components
- SMB connector sockets provide flexibility for the input and output signals
Product Detail

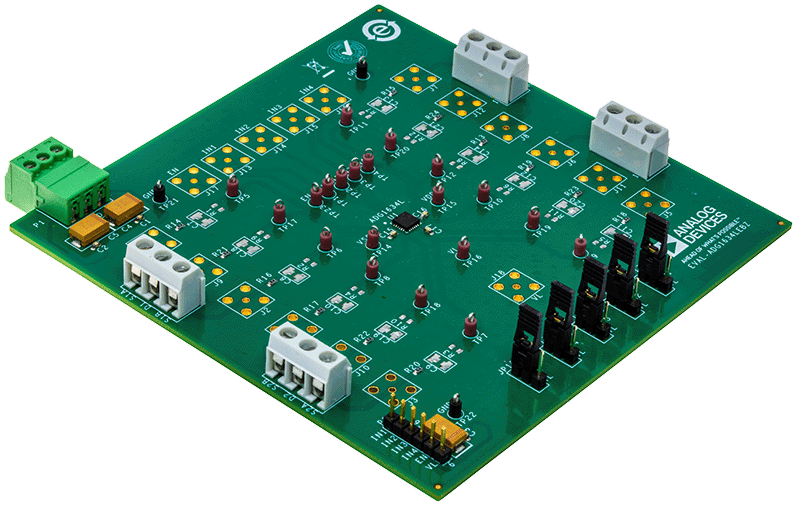

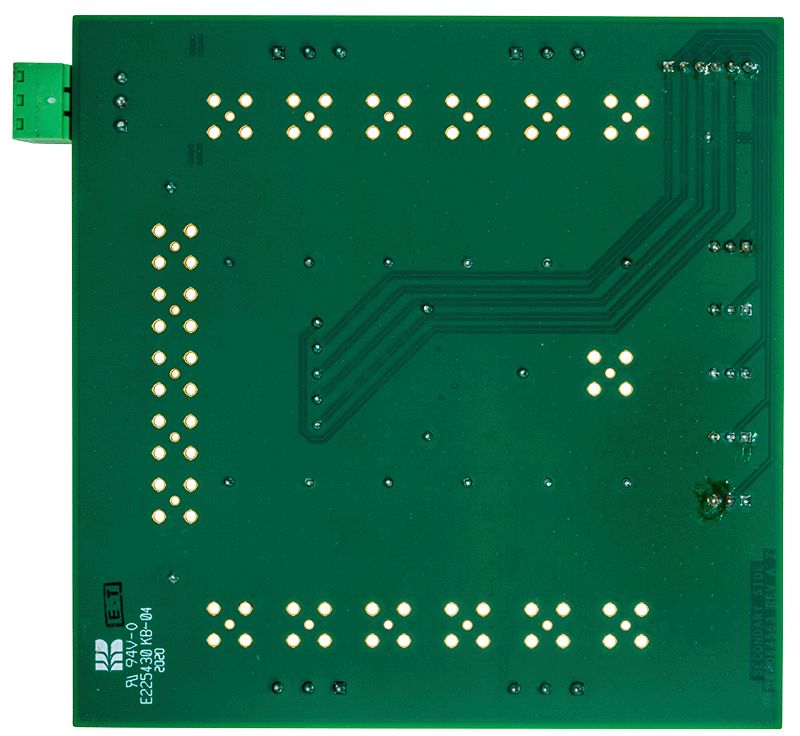

The EVAL-ADG1634LEBZ is the evaluation board for the ADG1634L. The ADG1634L contains four independent single-pole, double-throw (SPDT) switches. Each switch conducts equally well in both directions when on, and each switch has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.
An external VL supply pin provides logic control flexibility for lower logic controls. The ADG1634L is both 1.2 V and 1.8 V JEDEC standard compliant.

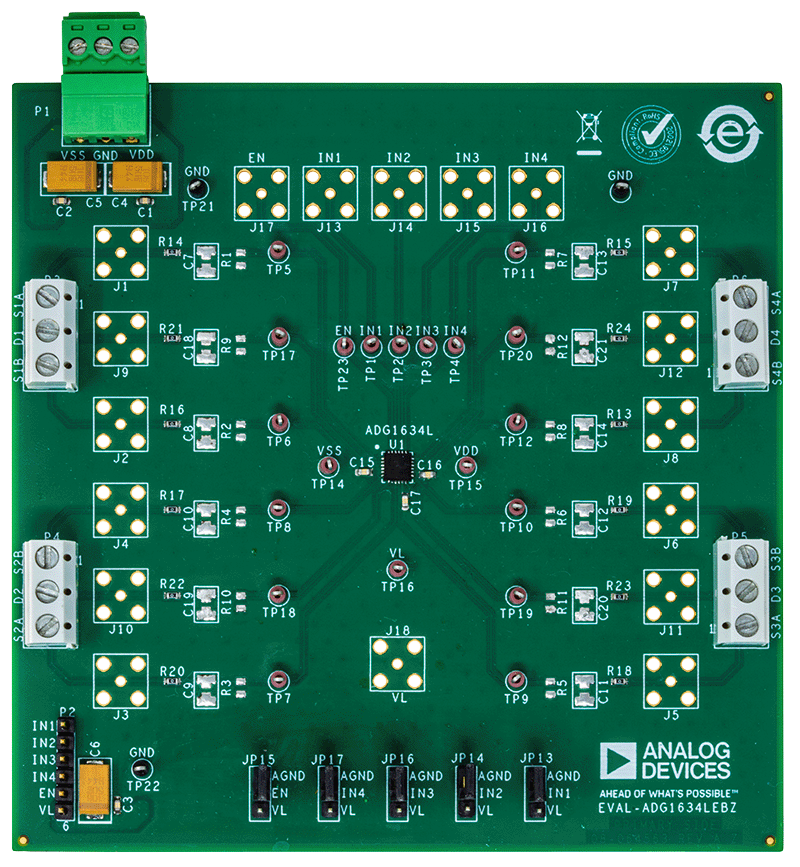

Figure 1 in the user guide shows the EVAL-ADG1634LEBZ in a typical evaluation setup. The EVAL-ADG1634LEBZ is located in the center of the evaluation board. Eight test points are included to connect to each of the source pins. Subminiature Version B (SMB) sockets are included for the drain inputs. Three screw terminals power the device. A 5-pin header is provided for user defined digital voltage, if required.
Full specifications on the ADG1634L are available in the ADG1634L data sheet available from Analog Devices, Inc., and should be consulted in conjunction with the user guide when using the EVAL-ADG1634LEBZ.
EVAL-24LFCSPEBZ
Evaluation Board for the 24-Lead LFCSP Devices in the Switches and Multiplexers Portfolio
Product Detail
The EVAL-24LFCSPEBZ enables easy evaluation of the 24-lead lead frame chip scale package (LFCSP) devices in the Switches and Multiplexers Portfolio portfolio that are purchased separately. The EVAL-24LFCSPEBZ is supplied with a socket to secure a 24-lead LFCSP device to the evaluation board without the need for soldering. In addition, there are three sets of gold pin connectors in each trace, allowing board flexibility and reusability for multiple evaluations.
Figure 1 shows the EVAL-24LFCSPEBZ. A 24-lead LFCSP device can be inserted into the socket in the center of the evaluation board. Each device pin has a corresponding 3-pin header link, from K1 to K24, that can either be connected to an external signal source by removing the corresponding link or by using the link to choose between VDD or GND. A wire screw terminal, J1, supplies the VDD and GND. The Subminiature Version B (SMB) connectors on the EVAL-24LFCSPEBZ allow additional external signals to be supplied to the device. In addition, there is a perfboard space and two 24-lead LFCSP pads (4 mm × 4 mm) available on top of the EVAL-24LFCSPEBZ for prototyping.
The full specifications of the device under test (DUT) are available in the corresponding product data sheet, which must be consulted with the EVAL-24LFCSPEBZ user guide when using the EVAL-24LFCSPEBZ.
Tools & Simulations 2
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Lt Spice
