ADE9178

Energy Management DSP with PEN Fault Detection

Show More showmore-icon

Energy Management DSP with PEN Fault Detection

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 2
1ku List Price Starting From $3.00
Features
  • Metrology chip for use with any combination of the following AFEs
    • ADE9113 (3-channel, isolated, Σ-Δ ADC)
    • ADE9112 (2-channel, isolated, Σ-Δ ADC)
    • ADE9103 (3-channel, non-isolated, Σ-Δ ADC)
  • Can support up to four ADE9113/ADE9112/ADE9103 daisy-chained ADCs through 4-wire SPI
    • Supports up to a total of 12 ADC channels of data
  • 4-wire SPI for Host MCU communications up to 25 MHz
  • Total active energy calculation
  • Class C accuracy (0.5%), supports the following
    • MID 2014/32/EU Annex V
    • EN 50470-1:2006
    • EN 50470-3:2006
    • EN 50470-3:2022
    • IEC 62052-11:2020
    • IEC 62053-21:2020
    • OIML G 22:2022
    • NIST Handbook 44:2023
  • Total apparent energy calculation using filtered RMS
  • Energy accumulation, import and export for reverse power/vehicle to grid (V2G) applications
  • Basic power quality features
    • Short-duration undervoltage or overvoltage (dip/swell) detection
    • Short-duration undercurrent or overcurrent (dip/swell) detection
    • Line frequency calculation with 10 mHz accuracy
    • Angles between phase voltages and currents
    • Power-factor calculation
  • Configurable phase, gain and offset calibration registers for all ADC channels
  • Two configurable calibration frequency (CF) pulse outputs
  • Configurable: no load detection
  • Phase-sequence detection
  • RMS on full cycle, half cycle and filtered RMS on all ADC channels
  • Supported frequency range: 45 Hz to 65 Hz
  • Four user-programmable interrupt outputs (IRQs)
  • PEN open fault detection (BS 7671:2018 Amendment 1:2020)
  • Waveform streaming through UART transmit pin
  • Datapath multiplexing to allow any ADC data to be used for any data processing path
  • Temperature range: −40°C to +105°C

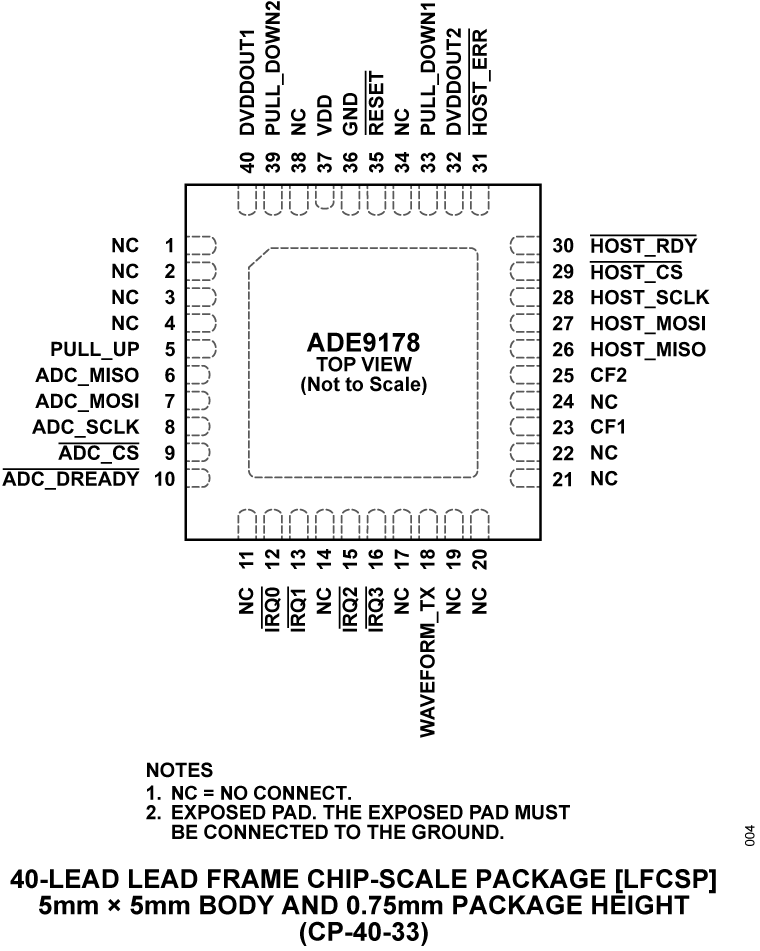

  • Available in 5 mm × 5 mm, 40-lead TQFN-EP package
Additional Details
show more Icon

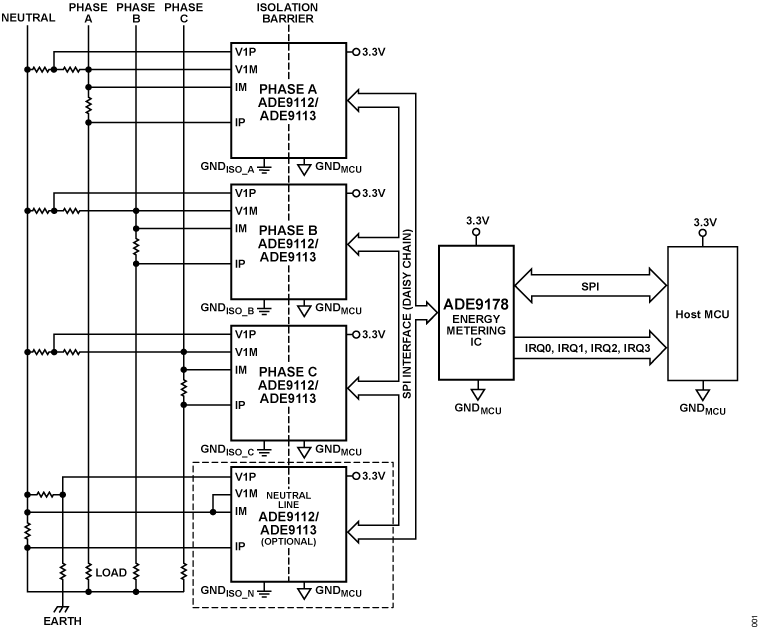

The ADE9178 is a metrology digital signal processor (DSP) for use with a combination of ADE9113/ADE9112/ADE9103 sigma delta analog-to-digital converters (ADCs). The ADE9178 is a high accuracy, 3-phase electrical energy measurement IC primarily for the electric vehicle supply equipment (EVSE) market with serial peripheral interface (SPI) and two flexible pulse outputs. The ADE9178 can interface with up to four daisy-chained ADE9113/ADE9112/ADE9103 devices through SPI protocol. The ADE9178 incorporates all the signal processing required to perform total active energy, apparent energy measurements, and root mean square (RMS) calculations. A fixed function DSP executes this signal processing.

The ADE9178 is well-suited for the EVSE market due to its broad feature set such as protective earth and neutral (PEN) open fault detection without the need for any additional hardware, overcurrent, and overvoltage detection using RMS of half cycle/one cycle and vehicle to grid/home (V2X) capabilities.

The ADE9178 measures active and apparent energy in various 3-phase configurations, such as wye or delta services, with both three and four wires, single phase, and split phase while supporting both 50 Hz and 60 Hz line frequencies. The ADE9178 provides gain, offset, and phase calibration features for each ADC channel. The CF1 and CF2 logic outputs provide power information that is proportional to the measured accumulated energy.

The ADE9178 incorporates some basic power quality measurement features, such as short-duration undervoltage/undercurrent or overvoltage/overcurrent detection, line voltage period measurements, and angles between phase voltages and currents. A Host microcontroller unit (MCU) can be used to communicate with the ADE9178 through 4-wire SPI. Waveform streaming can be accessed by the Host MCU through the WAVEFORM_TX pin of the ADE9178. The ADE9178 also has four user-programmable interrupt pins, IRQ0, IRQ1, IRQ2, and IRQ3, to indicate that an enabled interrupt event has occurred. The ADE9178 is available in a 40-lead, TQFN-EP package.

For more details on how to setup the ADE9178 in an EVSE application, refer to the application note Using ADE9178 for EV Charger Metrology Solution.

Applications

  • Electric vehicle supply equipment
  • Shunt-based polyphase meters
  • Solar inverters
  • Energy and power monitoring
Part Models 2
1ku List Price Starting From $3.00

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADE9178GTL+
  • HTML
  • HTML
ADE9178GTL+T
  • HTML
  • HTML

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits 1

reference details image

EVAL-ADE9178

zoom

EVAL-ADE9178

Features and Benefits

  • Fully featured evaluation kit (EV kit) board for the ADE9178 and ADE9113 chipset
  • Up to 32 A current measurement with on-board shunts
  • Up to 240 VRMS nominal line neutral voltage measurement
  • CLI to read/write registers
  • GUI to read/write registers

Product Detail

The ADE9178EVKIT# EV kit board allows the performance of the ADE9178 alongside the ADE9113 analog-to-digital converters (ADCs) to be evaluated. With the inclusion of the resistor ladder network and shunts, this ADE9178EVKIT# EV kit board allows for easy setup procedure due to the fact that no external components are needed.

The ADE9178EVKIT# EV kit board comes preprogrammed with software including a command line interface (CLI) tool to communicate with the EV kit over serial and a graphical user interface (GUI). The CLI and GUI tools provide access to the part registers for board calibration and calibration frequency (CF) pulse generation. For more details on how to use the CLI/GUI and access the detailed software guide, see the Evaluation Board Software section.

Full specifications on the ADE9178 and ADE91xx are available in the ADE9178 and ADE91xx data sheet, respectively, available from Analog Devices, Inc., and must be consulted with this user guide when using the ADE9178EVKIT# EV kit board.
