ADE9153B

Energy Metering IC with Sensor Monitoring and Self-Calibration

Show More showmore-icon

warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price
price unavailable
Features
  • mSure sensor monitoring
    • Noninvasive, real-time, direct, precision measurement of the input signal path
    • Detects changes in meter accuracy and amount of drift over the life of the meter
    • Identifies sensor malfunction
    • Enables advanced tamper detection methods
    • Companion MCU firmware to facilitate diagnostic data reporting
    • Supported for shunts on the phase line and CTs on the neutral line
  • mSure self-calibration
    • Self-calibration based on a direct measurement of the full signal path
    • Calibration procedure not requiring a reference meter
  • 3 high performance ADCs
    • 86 dB SNR
    • High gain current channel: ±26.04 mV peak, 18.4 mV rms input at highest gain setting
  • Advanced metrology feature set
    • Watt, VAR, VA, Wh, VARh, and VAh
    • Supports active energy standards: IEC 62053-21; IEC 62053-22; EN50470-3; OIML R46; and ANSI C12.20
    • Supports reactive energy standards: IEC 62053-23 and IEC 62053-24
    • Current and voltage rms measurement
  • Operating temperature, industrial range: −40°C to +85°C
  • Integrated temperature sensor with a 12-bit successive approximation register (SAR) ADC
Additional Details
show more Icon

The ADE9153B1 is a highly accurate, single-phase, energy metering IC with sensor monitoring and self-calibration. Sensor monitoring with mSure® technology allows meter health monitoring and advanced tamper detection. The monitoring feature allows the user to check the overall accuracy of the sensor and signal path to identify accuracy drifts that occur over time on the current and voltage channels, independently. Similarly, mSure offers advanced tamper detection with the ability to detect unusual changes on the sensors. mSure runs in parallel to the metering measurements, allowing uninterrupted and unaffected metrology in the ADE9153B. Self-calibration with mSure enables a meter to automatically calibrate the current and voltage channels without accurate reference meters or accurate sources when a shunt resistor is used as the current sensor. The self-calibration feature supports Class 1 and Class 2 meters.

The ADE9153B includes three high performance analog-to-digital converters (ADCs), providing an 88 dB signal-to-noise ratio (SNR). The ADE9153B offers accurate measurement of line voltage and current, and calculates active, fundamental reactive, and apparent energy, as well as rms. A wide range of power quality information is included, such as dip and swell detection. Current Channel A is ideal for shunts and has a flexible gain stage providing full-scale input ranges from 62.5 mV peak down to 26.04 mV peak. Current Channel B has gain stages of 1×, 2×, and 4× for use with current transformers (CTs). A high speed, 10 MHz, serial peripheral interface (SPI) port allows access to the ADE9153B registers.


1 Protected by U.S. Patents 8,350,558; 8,010,304; WO2013038176 A3; 0113507 A1; 0253102 A1; 0354266 A1; and 0154029 A1.

A short-form datasheet for this product is available for download from this page. ADI is also looking to partner with leading utilities and meter manufactures to deliver the full value of the mSure technology. For more information, please contact your local Analog Devices sales team or fill out the information request form at analog.com/msure.
Part Models 2
1ku List Price
price unavailable

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADE9153BACPZ
  • HTML
  • HTML
ADE9153BACPZ-RL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 1, 2024

- 24_0009

Qualification of alternative Wafer Fab for TSMC 0.18um Mixed Signal CMOS Process

Sep 27, 2021

- 21_0176

ADE9153 Firmware/Test Program Change

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 1, 2024

- 24_0009

arrow down

Qualification of alternative Wafer Fab for TSMC 0.18um Mixed Signal CMOS Process

Sep 27, 2021

- 21_0176

arrow down
Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 1

reference details image

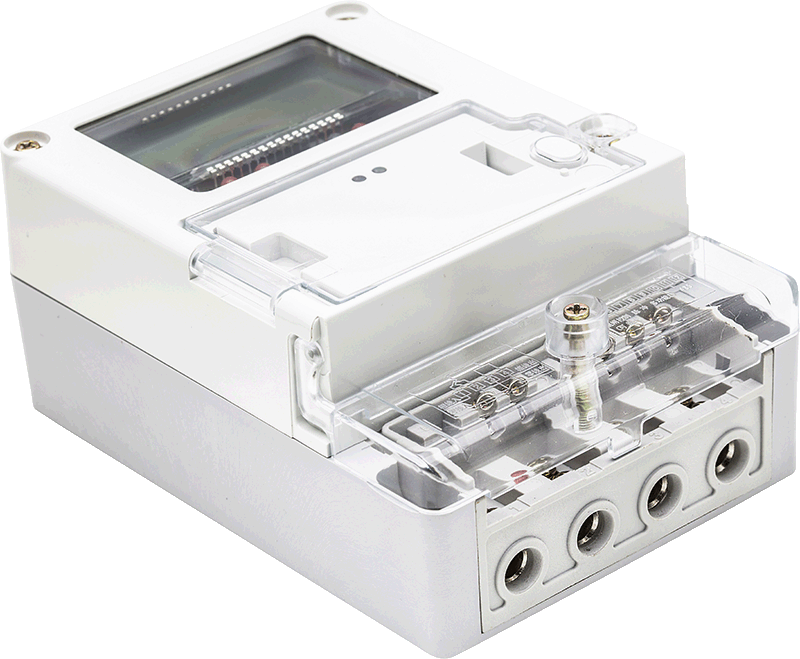

EVAL-ADE9153B

ADE9153B Energy + mSure sensor monitor Evaluation Kit

zoom

EVAL-ADE9153B

ADE9153B Energy + mSure sensor monitor Evaluation Kit

ADE9153B Energy + mSure sensor monitor Evaluation Kit

Features and Benefits

  • mSure Enabled, Full Featured, Single Phase Energy Meter with the ADE9153B
    • Real time meter health monitoring using mSure manager
    • Class 0.5 accuracy
    • Line and Neutral measurements
    • Imax = 60A, Inominal = 6A
    • 110V-240V
    • 50/60Hz
    • LCD and CF outputs
  • Voltage RMS, Current RMS, Active, Fundamental Reactive and Apparent Power and Energy measurements
  • Power quality measurements
    • Dip , Swell
    • Frequency, Power Factor
  • mSure Manager for analyzing and reporting mSure diagnostic and health data
  • PC control using an isolated RS485 port
  • PC software for full control of the ADE9153B

Product Detail

The mSure enabled, ADE9153EVK evaluation kit includes a full featured single phase energy meter with Class 0.5 meter accuracy. mSure is a diagnostics technology residing in the ADE9153B that enables direct and non-invasive monitoring of the energy meter accuracy and faults in real time. The kit contains the ADE9153B, the STM32F103RE ARM Cortex-M3 microcontroller that manages the ADE9153B, the LCD display, the RTC, the 64kB FRAM and the isolated RS485 communication with the PC.

The kit allows the performance of the mSure technology and of the ADE9153B to be evaluated in the context of a single phase meter implementation. In standalone mode, the energy meter measures the metrology parameters: active, reactive and apparent energies, current and voltage rms values. The FRAM is used to store information provided by the ADE9153B mSure manager.

The kit may also be managed by the LabView™ based evaluation software. It provides the means to evaluate the mSure and the ADE9153B performance.
