ADE9153A

Energy Metering IC with Autocalibration

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.0)
Documentation View All Documentation
IBIS Model ADE9153A IBIS Model Download 84.97 KB
Part Models 2
1ku List Price Starting From $3.46
Features
  • mSure autocalibration
    • Automatic calibration based on a direct measurement of the full signal path
    • Calibration procedure not requiring a reference meter
    • mSure autocalibration Class 1 meter guaranteed
  • 3 high performance ADCs
    • 88 dB SNR
    • High gain current channel: ±26.04 mV peak, 18.4 mV rms input at highest gain setting
  • Advanced metrology feature set
    • WATT, VAR, VA, Wh, VARh, and VAh
    • Supports active energy standards: IEC 62053-21; IEC 62053-22; EN50470-3; OIML R46; and ANSI C12.20
    • Supports reactive energy standards: IEC 62053-23 and IEC 62053-24
    • Current and voltage rms measurement
    • Power quality measurements
  • Operating temperature, industrial range: −40°C to +85°C
Additional Details
show more Icon

The ADE9153A is a highly accurate, single-phase, energy metering IC with autocalibration. The mSure® autocalibration feature allows a meter to automatically calibrate the current and voltage channels without using an accurate source or an accurate reference meter when a shunt resistor is used as a current sensor. Class 1 and Class 2 meters are supported by mSure autocalibration.

The ADE9153A incorporates three high performance analog-to-digital converters (ADCs), providing an 88 dB signal-to-noise ratio (SNR). The ADE9153A offers an advanced metrology feature set of measurements like line voltage and current, active energy, fundamental reactive energy, and apparent energy calculations, and current and voltage rms calculations. ADE9153A includes power quality measurements such as zero crossing detection, line period calculation, angle measurement, dip and swell, peak and overcurrent detection, and power factor measurements. Each input channel supports independent and flexible gain stages. Current Channel A is ideal for shunts, having a flexible gain stage and providing full-scale input ranges from 62.5 mV peak down to 26.04 mV peak. Current Channel B has gain stages of 1×, 2×, and 4× for use with current transformers (CTs). A high speed, 10 MHz, serial peripheral interface (SPI) port allows access to the ADE9153A registers.

The ADE9153A operates from a 3.3 V supply and is available in a 32-lead LFCSP package.

Applications

  • Single-phase energy meters
  • Energy and power measurement
  • Street lighting
  • Smart power distribution system
  • Machine health
Show More Arrow image
file View Data Sheet (Rev.0)
Documentation View All Documentation
IBIS Model ADE9153A IBIS Model Download 84.97 KB
Part Models 2
1ku List Price Starting From $3.46
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADE9153A

Documentation

9
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Application Note
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 02/22/2018
English

ADE9153A: Energy Metering IC with Autocalibration Data Sheet (Rev.0)

Open PDF File

redirect
498.06 K
download

Download PDF

PDF Vector

PDF

UPDATED 02/22/2018
Japanese

ADE9153A: 自動キャリブレーション機能付き電力量計 IC データシート

Open PDF File

redirect
498.06 K
download

Download PDF

User Guide

2

PDF Vector

PDF

UPDATED 02/22/2018
English
UG-1247: Functionality and Features of the ADE9153A Energy Metering IC with Autocalibration (Rev.0) redirect icon

481.86 K

download

Download PDF

PDF Vector

PDF

UPDATED 02/22/2018
English
UG-1253: ADE9153A Energy Measurement Shield with mSure Autocalibration (Rev.0) redirect icon

490.18 K

download

Download PDF

Application Note

5

PDF Vector

PDF

UPDATED 02/14/2019
English
AN-1571: mSure® Autocalibration with the ADE9153A (Rev.0) redirect icon

286 K

download

Download PDF

PDF Vector

PDF

UPDATED 02/14/2019
Japanese
AN-1571: ADE9153A の mSure®自動キャリブレーション redirect icon

286 K

download

Download PDF

PDF Vector

HTML

UPDATED 12/01/2018
English
AN-1562: Layout Considerations when Adding Energy Monitoring to a System Using the ADE9153A redirect icon

PDF Vector

HTML

UPDATED 12/01/2018
Chinese
AN-1562：利用ADE9153A在系统中添加电能监控功能的PCB布局考量 redirect icon

PDF Vector

HTML

UPDATED 12/01/2018
Japanese
AN-1562: ADE9153A を使用したシステムに電力量監視を付加する場合のレイアウト上の考慮事項 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Technical Documents 5
show more Icon

Data Sheet 1

ADE9153A: Energy Metering IC with Autocalibration Data Sheet (Rev.0)

User Guide 2

UG-1247: Functionality and Features of the ADE9153A Energy Metering IC with Autocalibration (Rev.0)
UG-1253: ADE9153A Energy Measurement Shield with mSure Autocalibration (Rev.0)

Application Note 2

AN-1571: mSure® Autocalibration with the ADE9153A (Rev.0)
AN-1562: Layout Considerations when Adding Energy Monitoring to a System Using the ADE9153A

Webcast 2

Emerging Solutions for EV Charging
Solutions for Electricity Meter Accuracy Monitoring and Advanced Tamper Detection

Video

3

Thumbnail Image

Video

2021-09-27

01:01

ADE9153A: Energy Metering IC with Self-Calibration

Learn More
Thumbnail Image

Video

2023-12-21

01:14

Smart Meter Portfolio

Learn More
Thumbnail Image

Video

2023-07-12

02:48

Energy Metering in Smart Lighting with ADE9153A

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADE9153AACPZ 32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADE9153AACPZ-RL 32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 1, 2024

- 24_0009

Qualification of alternative Wafer Fab for TSMC 0.18um Mixed Signal CMOS Process

ADE9153AACPZ

PRODUCTION

ADE9153AACPZ-RL

PRODUCTION

pdf

PCN24_0009_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

Sep 27, 2021

- 21_0176

ADE9153 Firmware/Test Program Change

ADE9153AACPZ

PRODUCTION

ADE9153AACPZ-RL

PRODUCTION

pdf

PCN21_0176_Form

external-icon

xls

Material_Report

Download

pdf

Revised Datasheet Specification

external-icon

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 1, 2024

- 24_0009

arrow down

Qualification of alternative Wafer Fab for TSMC 0.18um Mixed Signal CMOS Process

ADE9153AACPZ

PRODUCTION

ADE9153AACPZ-RL

PRODUCTION

pdf

PCN24_0009_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon
Sep 27, 2021

- 21_0176

arrow down

ADE9153 Firmware/Test Program Change

ADE9153AACPZ

PRODUCTION

ADE9153AACPZ-RL

PRODUCTION

pdf

PCN21_0176_Form

external-icon

xls

Material_Report

Download

pdf

Revised Datasheet Specification

external-icon

pdf

Qualification Results Summary

external-icon
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description
ADE7953
popup image
Cart

PRODUCTION

Single Phase Multifunction Metering IC with Neutral Current Measurement

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 1

reference details image

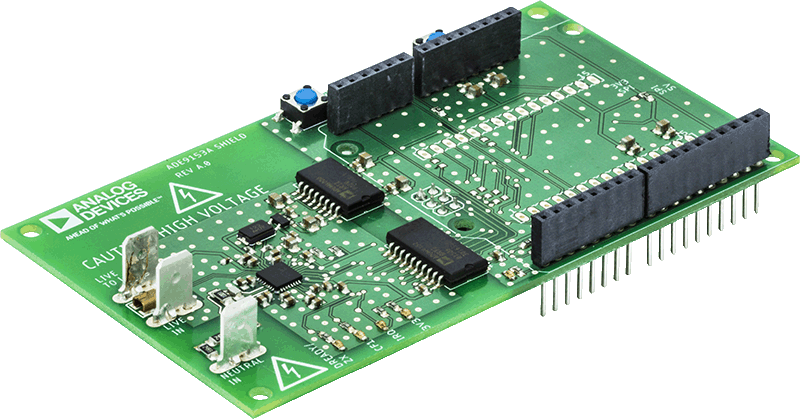

EV-ADE9153ASHIELDZ

ADE9153A Arduino Shield Evaluation Board

zoom

EV-ADE9153ASHIELDZ

ADE9153A Arduino Shield Evaluation Board

download icon

Download

 print icon

Print
EV-ADE9153ASHIELDZ
ADE9153A Arduino Shield Evaluation Board

Features and Benefits

  • Arduino-compatible, single-phase energy measurement shield with the ADE9153A
  • Onboard shunt for line current measurement
    • Nominal current: 5 A
    • Maximum current: 10 A
  • Up to 240 V rms nominal line neutral voltage measurement
  • Arduino software library
  • mSure autocalibration and example application sketches
Buy Now View Details

Product Detail

The EV-ADE9153ASHIELDZ is an Arduino shield compatible with Arduino Uno, Arduino Zero, or ESP8266. The shield has an on-board shunt resistor for line current measurement and enables quick evaluation and prototyping of energy measurement systems that use the ADE9153A. Arduino library and application examples are provided on the ADE9153A product page to simplify implementation of larger systems. Using mSure® autocalibration, the shield can be calibrated to measure energy with 1% accuracy over the dynamic range without the need for expensive calibration equipment.

Resources

pdf icon

PDF

UG-1247: Functionality and Features of the ADE9153A Energy Metering IC with Autocalibration (Rev.0) Download

481.86 K

pdf icon

PDF

UG-1253: ADE9153A Energy Measurement Shield with mSure Autocalibration (Rev.0) Download

490.18 K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

EV-ADE9153ASHIELDZ

ADE9153A Arduino Shield Evaluation Board
