ADE7757

Single Phase Energy Metering IC with Integrated Oscillator

PRODUCTION

Part Details

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $1.72

Features

Exceeds IEC61036/60687
Less than 0.1% Active Energy Error Over Dynamic Range of 1000:1
Active Energy Measurement
High Frequency Pulse Output
Voltage SAG and Zero-crossing Detection
Current sensor interface for current transformers or shunts
On-chip Temperature Sensor and Voltage Reference (2.4 V)
Low Power (25 mW typical)

Additional Details

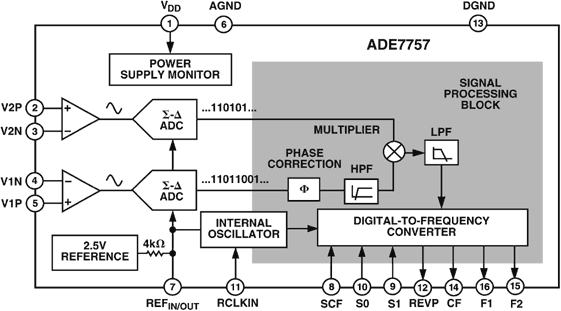

The ADE7757 is an accurate electrical energy measurement integrated circuit. It is a pin reduction version of ADE7755 with an enhancement of a precise oscillator circuit that serves as a clock source to the chip. The ADE7757 eliminates the cost of an external crystal or resonator, thus reducing the overall cost of a meter built with this IC. The chip directly interfaces with shunt resistor.

The ADE7757 provides instantaneous and average real power based on line current and voltage. The part specifications surpass the accuracy requirements as quoted in the IEC61036 standard. The only analog circuitry used in the ADE7757 is in the ADCs and reference circuit. All other signal processing (e.g., multiplication and filtering) is carried out in the digital domain. This approach provides superior stability and accuracy over extremes in environmental conditions and over time.

The small analog input full-scale allows the chip to interface to low value shunt resistances without losing dynamic range. The ADE7757 is available in 16-lead SOIC narrow-body package.

The Application Note AN-679 can be used as a basis for a description of an IEC61036 low cost, watt-hour meter reference design.

NOTE: For polyphase system designs, the ADE7752A is recommended.
