Features and Benefits
- 12-channel vertical driver
- 8 3-level drivers
- 4 2-level drivers
- Substrate clock driver
- Input logic supports 1.6 V to 3.6 V range
- Output drivers support -9.5 V to +15.5 V range
- 6 mm × 6 mm CSP_BGA package with 0.65 mm pitch

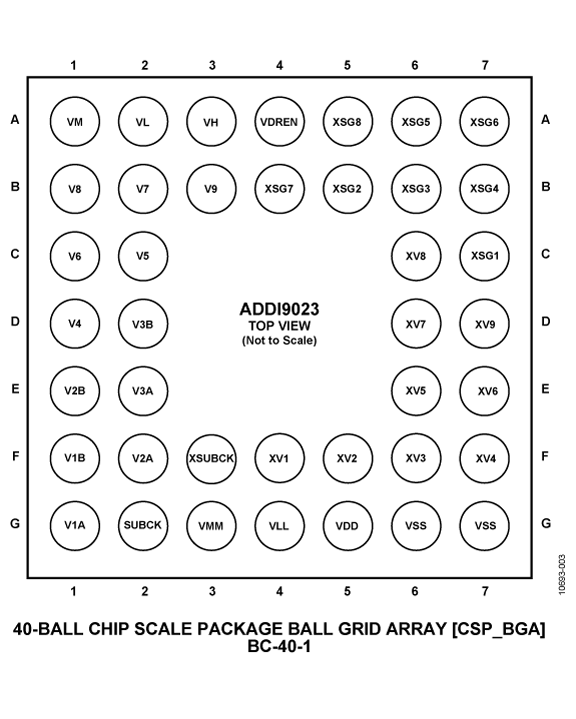

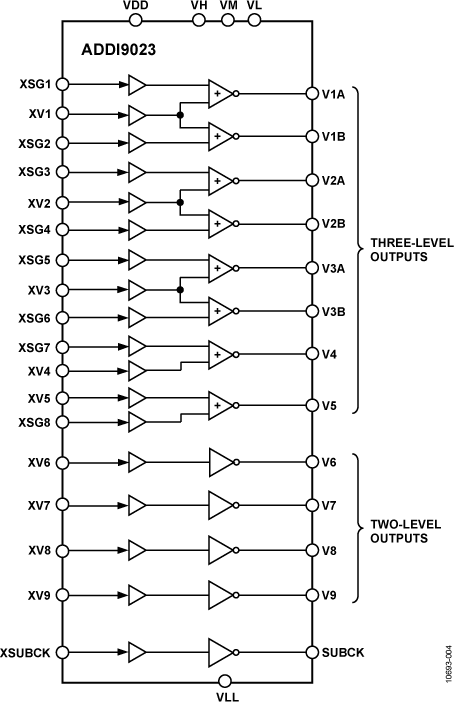

The ADDI9023 is twelve channel vertical driver for CCD imaging applications. It includes eight 3-level drivers and four 2-level drivers. The input configuration can support up to nine individual vertical timing phases and eight shift gate signals. A separate substrate clock channel (SUBCK) is also included. Typical load drive capability for each channel is 3nF.
The ADDI9023 is specified over an operating temperature range of −25°C to +85°C.
