Features and Benefits
- Single-supply voltage operation: 2.3 V to 5.5 V
- Rail-to-rail common-mode input voltage range
- Low input offset voltage across VCMR: 1 mV typical
- Guarantees comparator output logic low from VCC = 0.9 V to
- undervoltage lockout (UVLO)
- Operating temperature range: −40°C to +125°C

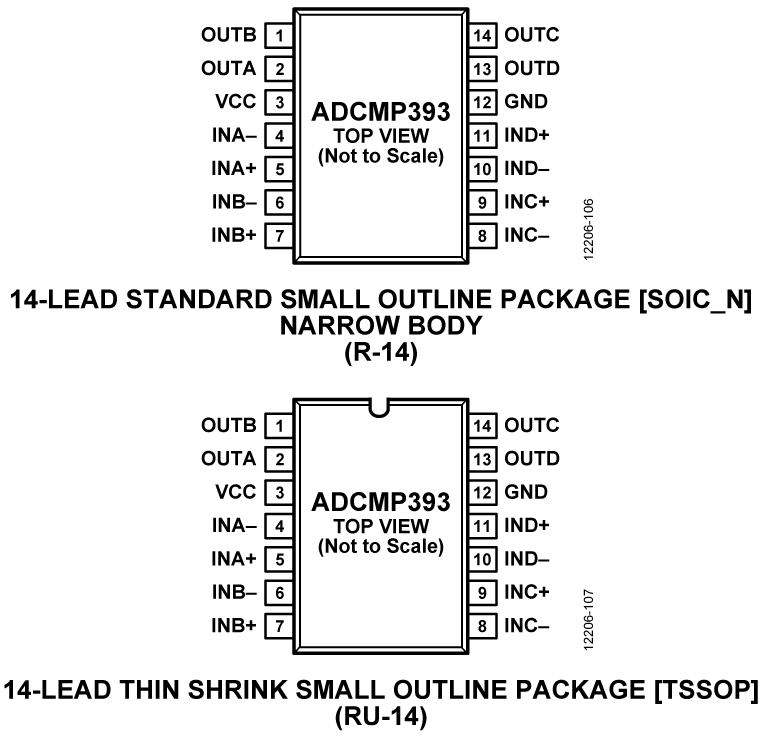

- Package types:
- 14-lead, narrow body SOIC
- 14-lead TSSOP
The ADCMP391 / ADCMP392 / ADCMP393 are single/dual/quad rail-to-rail input, low power comparators ideal for use in general-purpose applications. These comparators operate from a single supply voltage of 2.3 V to 5.5 V and draw a minimal amount of current. The single ADCMP391 consumes only 18.6 µA of supply current. The dual ADCMP392 and the quad ADCMP393 consumes 22.1 µA and 26.8 µA of supply current, respectively. The low voltage and low current operation of these devices makes it ideal for battery-powered systems.
The comparators features a common-mode input voltage range of 200 mV beyond rails, an offset voltage of 1 mV typical across the full common-mode range, and a UVLO monitor. In addition, the design of the comparators allows a defined output state upon power-up, a logic low output while the supply voltage is less than the UVLO threshold.
The ADCMP391 and ADCMP392 are available in 8-lead, narrow body SOIC package while the ADCMP393 is available in a 14-lead, narrow body SOIC package and a 14-lead TSSOP package. The comparators are specified to operate over the −40°C to +125°C extended temperature range.
- Battery management/monitoring
- Power supply detection
- Window comparators
- Threshold detectors/discriminators
- Microprocessor systems
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (2)
The ADALM-SR1 (Analog Devices Active Learning Module, Switching Regulator) board is a companion module for several switching regulator exercises covering buck and boost regulators:
- Boost and Buck converter elements and open-loop operation
- Buck Converters: closed loop operation
- Boost Converters: closed loop operation
The circuits required for these exercises exceed the complexity that can be constructed on a breadboard, so the ADALM-SR1 was designed as a flexible platform for experimenting with power electronics. Onboard current sense amplifiers, adjustable electronic load, and feedback signal injection circuitry eliminate the need for expensive equipment — the only additional equipment required is:
- 5V USB wall adapter
- Basic adjustable power supply for input power (0-12V, 2A)
- ADALM2000 or basic oscilloscope (2 channels with trigger, >10MHz bandwidth)
Features & Benefits
- Companion module for Active Learning labs on buck and boost power converters
- Illustrates important concepts related to buck and boost converters:
- Continuous vs. Discontinuous Conduction Modes
- Open loop operation
- Voltage mode control
- Current mode control
- Independently adjustable parameters: frequency, duty cycle, voltage/current mode
- Onboard current sense amplifiers and adjustable load minimize equipment requirements.
Customers of ADCMP391/ADCMP392/ADCMP393/ADCMP394/ADCMP395 comparators may evaluate the performance of these devices using ADCMP396, which has near identical electrical performance to this part and contains a superset of functions featured by this device family.
The EVAL-ADCMP396EBZ features accurate positive and negative voltage monitoring with 0.9% accuracy. The evaluation board uses LEDs to indicate an overvoltage or undervoltage event in both positive and negative voltage being monitored.
The ADCMP396 is a quad rail-to-rail input low power comparator suitable for general-purpose applications. The ADCMP396 consumes only 41.61 μA of supply current making it ideal for battery-powered systems.
The ADCMP396 has a common-mode input range of 200 mV beyond rails, a typical offset voltage of 1 mV across the full common-mode range, and an undervoltage lockout (UVLO) monitor. In addition, the design of the comparator allows a defined output state upon power-up, it generates a logic low output while the supply is still below the UVLO threshold.
The ADCMP396 incorporates a 1 V ± 0.9% buffered reference voltage over line, load, and temperature.
Features & Benefits
- Positive and negative voltage monitoring
- LED indicated voltage output status
- Test points for easy probing
Documentation & Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|ADCMP393ARUZ||Material Declaration||Reliability Data||14-Lead TSSOP|
|ADCMP393ARUZ-RL7||Material Declaration||Reliability Data||14-Lead TSSOP|
|ADCMP393ARZ||Material Declaration||Reliability Data||14-Lead SOIC|
|ADCMP393ARZ-RL7||Material Declaration||Reliability Data||14-Lead SOIC|
|Wafer Fabrication Data|
