ADA4870
2500 V/μs Slew Rate, High Voltage, 1 A Output Drive Amplifier
Top
New Content (1)
Overview
Features and Benefits
- Ideal for driving high capacitive or low resistive loads
- Wide supply range: 10 V to 40 V
- High output current drive: 1A
- Wide output voltage swing: 37 V swing with 40 V supply
- High slew rate: 2500 V/μs
- High bandwidth: 52 MHz large signal, 70 MHz small signal
- Low noise: 2.1 nV/√Hz
- Quiescent current: 32.5 mA
- Power down: 0.75 mA
- Short-circuit protection and flag
- Thermal protection
Product Details
The ADA4870 is a unity gain stable, high speed current feedback amplifier capable of delivering 1 A of output current and 2500 V/μs slew rate from a 40 V supply. Manufactured using the Analog Devices, Inc., proprietary high voltage extra fast complementary bipolar (XFCB) process, the innovative architecture of the ADA4870 enables high output power, high speed signal processing solutions in applications that require driving a low impedance load.
The ADA4870 is ideal for driving high voltage power FETs, piezo transducers, PIN diodes, CCD panels, and a variety of other demanding applications that require high speed from high supply voltage at high output current.
The ADA4870 is available in a 48-lead frame chip scale package (LFCSP) with an exposed pad that provides high thermal conductivity, enabling efficient heat transfer for improved performance and reliability in demanding applications. The ADA4870 operates over the industrial temperature range (−40°C to +85°C).
APPLICATIONS
- Envelope tracking
- Power FET driver
- Ultrasound
- Piezo drivers
- PIN diode drivers
- Waveform generation
- Automated test equipment (ATE)
- CCD panel drivers
- Composite amplifiers
Product Categories
Markets and Technologies
Comparable Parts Click to see all in Parametric Search
|
Part#
|
Slew Rate (typ)
|
BW -3 dB (typ)
|
Vs span (max)
|
Out V+ Headroom (typ)
|
Iout (typ)
|
Amp Features
|
|---|---|---|---|---|---|---|
|
2.5k
|
52M
|
40
|
1.4
|
1
|
Shutdown
|
|
|
900
|
66M
|
36
|
1.4
|
2
|
Shutdown
|
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

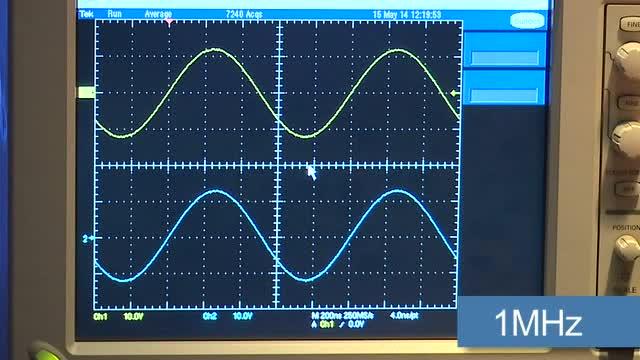

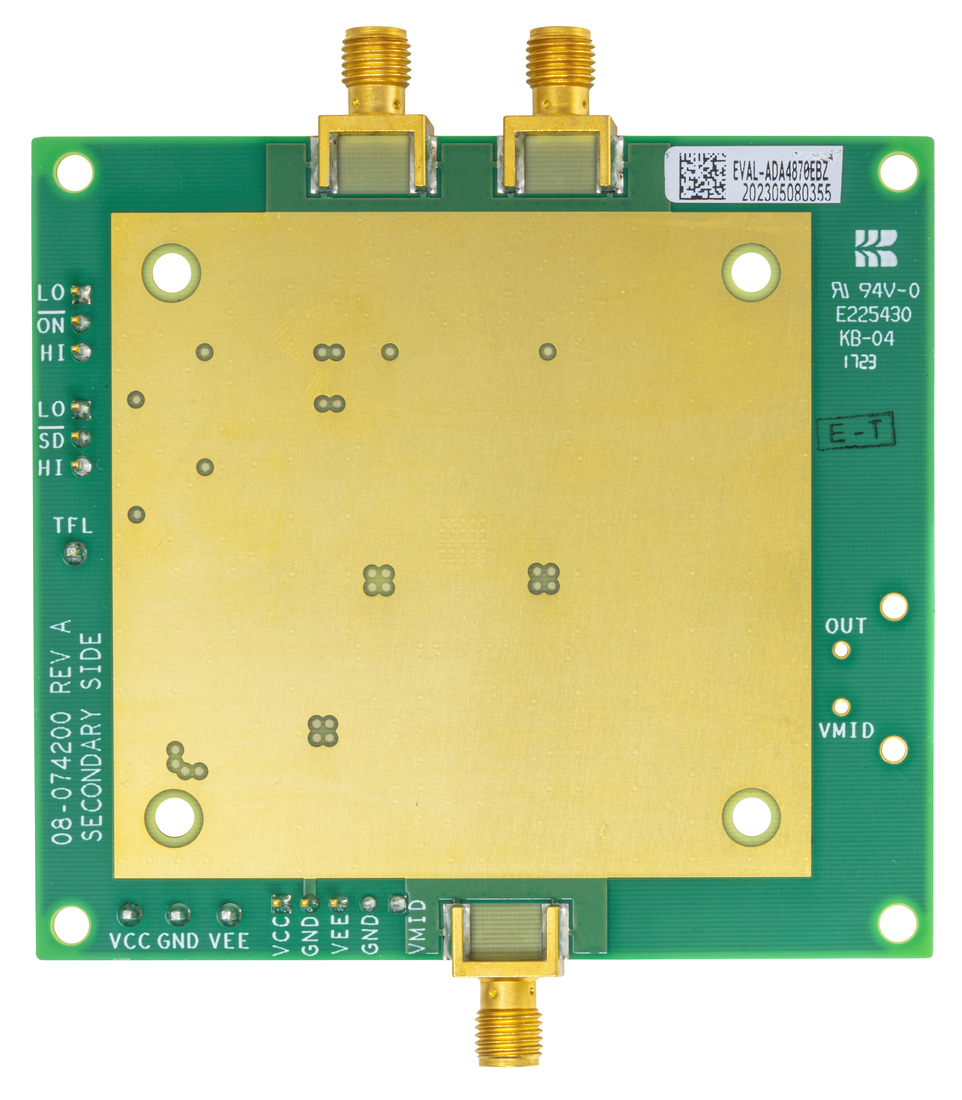

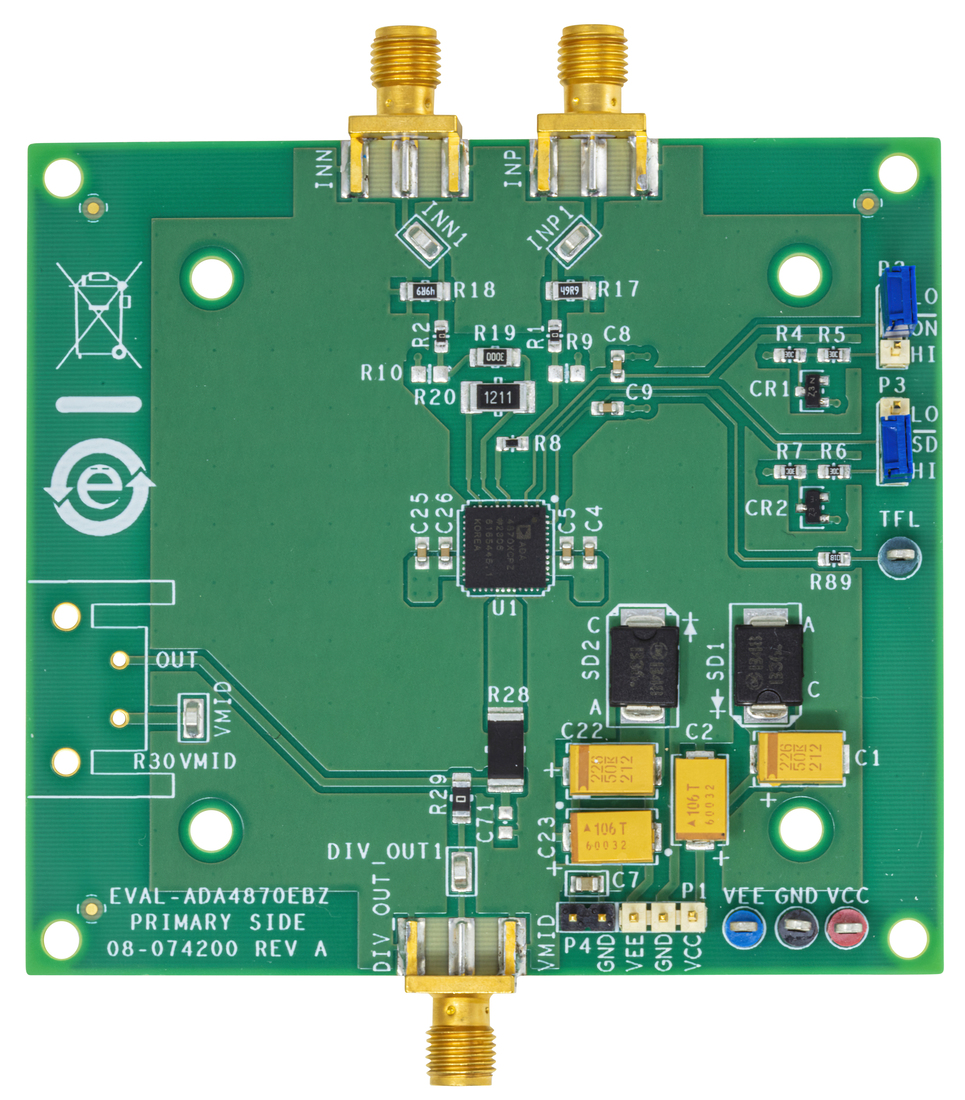

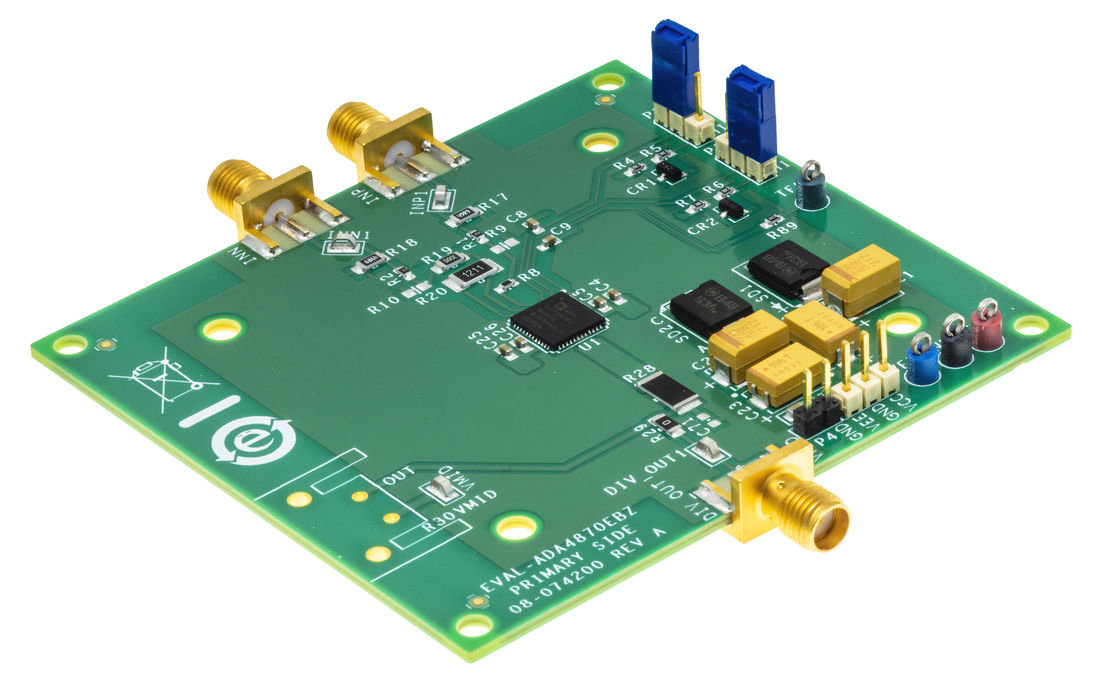

Evaluation Kits (1)
Documentation & Resources
-
Design of a Powerful Signal Generator Output Stage2/1/2020
-
A Large Current Source with High Accuracy and Fast Settling10/1/2018 Analog Dialogue
-
Two New Devices Help Reinvent the Signal Generator10/1/2014 Analog Dialogue
Tools & Simulations
SPICE Model
CIR
ADA4870 SPICE Macro Model
5.45 K
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| ADA4870-KGD-DF | Material Declaration | Reliability Data | CHIPS OR DIE | |
| ADA4870-KGD-WP | Material Declaration | Reliability Data | CHIPS OR DIE | |
| ADA4870ACPZ | Material Declaration | Reliability Data | 48-lead LFCSP (7 mm x 7 mm x 0.75 mm) | |
| ADA4870ACPZ-R7 | Material Declaration | Reliability Data | 48-lead LFCSP (7 mm x 7 mm x 0.75 mm) | |
| ADA4870ACPZ-RL | Material Declaration | Reliability Data | 48-lead LFCSP (7 mm x 7 mm x 0.75 mm) | |
| Wafer Fabrication Data |
