Features and Benefits
730 MHz –3dB bandwidth
625 V/µs slew rate
13 ns settling time to 0.5%
- Wide supply range: 5 V to 12 V
- Low power: 6 mA/amplifier
- 0.1 dB flatness: 100 MHz
- Differential gain: 0.01%
- Differential phase: 0.02°
- Low voltage offset: 100 µV (typ)
- High output current: 25 mA
- Power down
The ADA4861-3 is a low cost, high speed, current feedback, triple op amp that provides excellent overall performance. The 730 MHz, -3 dB bandwidth, and 625 V/µs slew rate make this amplifier well suited for many high speed applications. With its combination of low price, excellent differential gain (0.01%), differential phase (0.02°), and 0.1 dB flatness out to 100 MHz, this amplifier is ideal for both consumer and professional video applications.
The ADA4861-3 is designed to operate on supply voltages as low as +5 V and up to ±5 V using only 6 mA/amplifier of supply current. To further reduce power consumption, each amplifier is equipped with a power-down feature that lowers the supply current to 0.3 mA/amp when not being used.

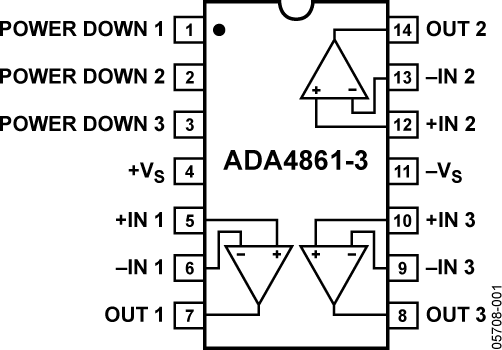

The ADA4861-3 is available in a 14-lead SOIC package and is designed to work over the extended temperature range of -40°C to +105°C.
