ADA4312-1

PRODUCTION

Wideband, Differential, High Output Current Line Driver with Shutdown

Data Sheet (Rev. A) Product Selection Table

Part Models: 3
1ku List Price: Starting From $2.02

Viewing:

Overview

High speed
- −3 dB bandwidth: 195 MHz, G_DIFF = +16 V/V, R_L, _DIFF = 40 Ω
- Differential slew rate: 2100 V/μs
Wide output swing: 18.0 V p-p differential, 12 V supply
High output current: 225 mA peak
G.hn MTPR at 16 dBm line power
- −64 dBc typical at 5 MHz, referred to −58 dBm/Hz
- −64 dBc typical at 17 MHz, referred to −58 dBm/Hz
- −64 dBc typical at 28 MHz, referred to −58 dBm/Hz
- −63 dBc typical at 31 MHz, referred to −58 dBm/Hz
- −61 dBc typical at 59 MHz, referred to −58 dBm/Hz
- −62 dBc typical at 82 MHz, referred to −58 dBm/Hz
Shutdown
- CMOS-compatible SD pin
- Shutdown quiescent current: 3 mA
- Z_OUT in shutdown: 10 kΩ differential (open-loop)
Resistor adjustable quiescent current

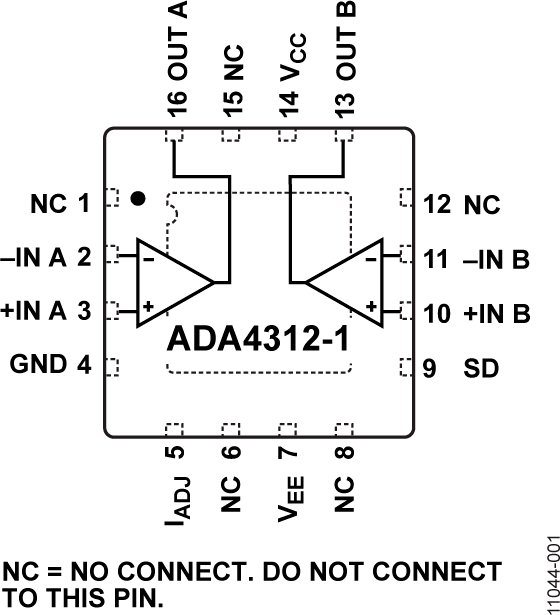

The ADA4312-1 is a high speed, differential, current feedback line driver designed for half-duplex G.hn power line communication (PLC) modems. The high output current, high bandwidth, and slew rate of 2100 V/μs make the ADA4312-1 an excellent choice for G.hn broadband applications that require high linearity while driving low impedance loads.

The CMOS-compatible shutdown control pin (SD) reduces the quiescent current to 3 mA while maintaining an output impedance of 10 kΩ differential. The ADA4312-1 also provides resistor adjustable quiescent current for improved efficiency in transmit mode.

The ADA4312-1 is available in a thermally enhanced, 16-lead LFCSP with an exposed pad to facilitate robust thermal management. The ADA4312-1 is rated to operate over the extended industrial temperature range of −40°C to +85°C.

Applications

ITU G.hn (ITU G.9960/G.9961)
HomePlug AV
HomePlug AV2
IEEE 1901

Part Models: 3
1ku List Price: Starting From $2.02

Documentation

Data Sheet 1

ADA4312-1: Wideband, Differential, High Output Current Line Driver with Shutdown Data Sheet (Rev.A) 10/31/2012

Application Note 1

AN-772: A Design and Manufacturing Guide for the Lead Frame Chip Scale Package (LFCSP) 02/01/2006

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADA4312-1ACPZ-R2	16-Lead LFCSP (4mm x 4mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADA4312-1ACPZ-R7	16-Lead LFCSP (4mm x 4mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADA4312-1ACPZ-RL	16-Lead LFCSP (4mm x 4mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 21, 2016 - 16_0229 Assembly Transfer of Select LFCSP Products to ASE Korea
		PCN16_0229_Form Material_Report Detailed Change Description Detailed Change Description Qualification Results Summary
ADA4312-1ACPZ-R2	PRODUCTION
ADA4312-1ACPZ-R7	PRODUCTION
ADA4312-1ACPZ-RL	PRODUCTION
May 11, 2014 - 13_0231 Assembly Transfer of Select 4x4 and 5x5mm LFCSP Products to STATS ChipPAC China.
		PCN13_0231_Form Material_Report Detailed Change Description Qualification Report Summary
ADA4312-1ACPZ-R2	PRODUCTION
ADA4312-1ACPZ-R7	PRODUCTION
ADA4312-1ACPZ-RL	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

ADA4312-1 Evaluation Board

Buy Now View Details

Product Details

As is the case with many high speed line driver applications, careful attention to printed circuit board (PCB) layout can improve performance and help maintain stability while preventing excessive die temperatures during normal operation. Differential signal balance can be maintained by using symmetry in the PCB layout of input and output signal traces. See AN-772 for complete details.
