ADA4084-2S

Aerospace Dual Low Noise, Rail-to-Rail I/O, Low Power Operational Amplifiers

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
Part Models 3
1ku List Price
price unavailable
Features
  • Rail-to-rail input/output
  • Low power: 0.675 mA typical per amplifier at ±1.5 V
  • Gain bandwidth product: 15.9 MHz at AV =100 typical
  • Unity-gain crossover: 9.9 MHz typical
  • −3 dB closed-loop bandwidth: 13.9 MHz typical at ±15 V
  • Low offset voltage: 100 μV maximum
  • Unity-gain stable
  • High slew rate: 4.6 V/μs typical
  • Low noise: 3.9 nV/√Hz typical at 1 kHz
Additional Details
show more Icon
The ADA4084-2S (dual) is a single-supply, 10 MHz bandwidth amplifier featuring rail-to-rail inputs and outputs. It is guaranteed to operate from +3 V to +30 V (or ±1.5 V to ±15 V).

This amplifier is well suited for single-supply applications requiring both ac and precision dc performance. The combination of wide bandwidth, low noise, and precision makes the ADA4084-2 useful in a wide variety of applications, including filters and instrumentation.

The ability to swing rail to rail at both the input and output enables designers to build multistage filters in single-supply systems and to maintain high signal-to-noise ratios.

The ADA4084 represents the latest generation of the OP484S generation amplifiers.

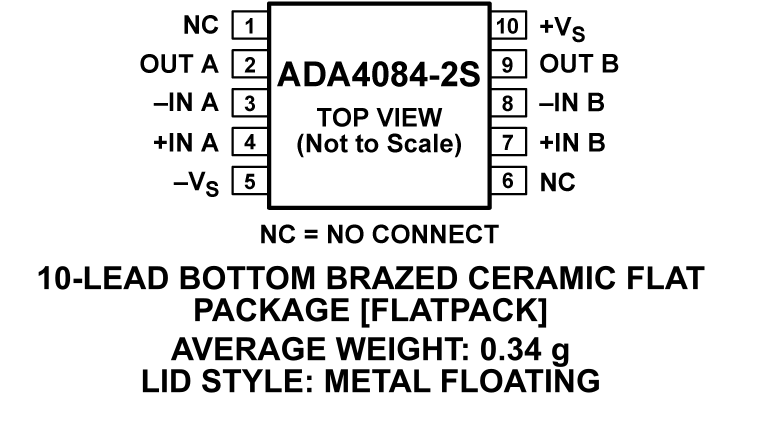

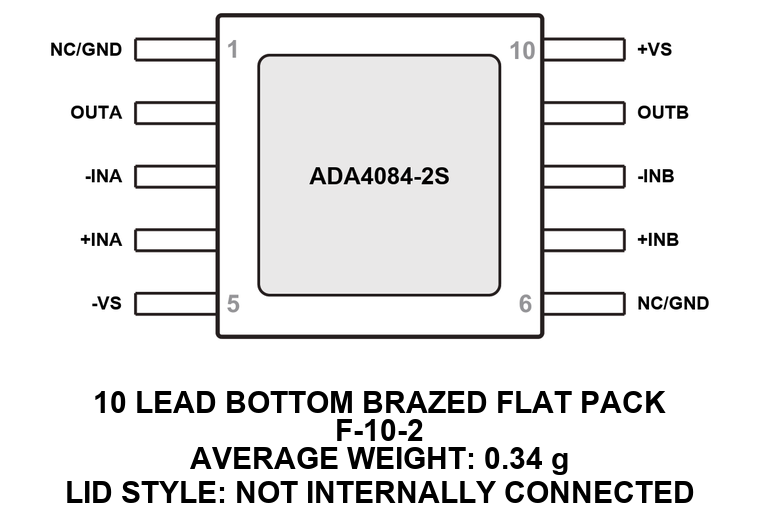

The ADA4084-2S is specified over the military temperature range of −55°C to +125°C. The dual ADA4084-2S is available in the 10-lead flat pack surface-mount package.

The ADA4084-2S is a member of a growing series of high voltage, low noise op amps offered by Analog Devices, Inc.

Show More Arrow image
file View Data Sheet
Documentation View All Documentation
Part Models 3
1ku List Price
price unavailable
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADA4084-2S

Documentation

1
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 01/15/2015
English

ADA4084-2S: Military Data Sheet

Open PDF File

redirect
download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
5962L1324502VXA CER. FLATPACK WITH LEADS
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
5962R1324501VXA CER. FLATPACK WITH LEADS
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADA4084-2AF-EMX CER. FLATPACK WITH LEADS
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 15, 2020

- 20_0339

Package Improvement for 10L and 14L Bottombrazed Flatpack and Provide Pin 1 Marking on Old 14L Flatpacks

5962L1324502VXA

5962R1324501VXA

ADA4084-2AF-EMX

PRODUCTION

pdf

PCN20_0339_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

pdf

Qualification Results Summary

external-icon

Oct 2, 2019

- 19_0212

ADA4084-2S and ADA4084-4S Thermal Power Dissipation Correction for Aerospace Models

5962L1324502VXA

5962R1324501VXA

ADA4084-2AF-EMX

PRODUCTION

pdf

PCN19_0212_Form

external-icon

xls

Material_Report

Download

Oct 24, 2018

- 18_0166

ADF4108S and ADA4084-2S Aerospace Models Elimination of Secondary Burn-In Condition

5962L1324502VXA

5962R1324501VXA

pdf

PCN18_0166_Form

external-icon

xls

Material_Report

Download

Nov 18, 2015

- 15_0219

Laser Marking Standardization for Aerospace Packages

5962R1324501VXA

pdf

PCN15_0219_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 15, 2020

- 20_0339

arrow down

Package Improvement for 10L and 14L Bottombrazed Flatpack and Provide Pin 1 Marking on Old 14L Flatpacks

5962L1324502VXA

5962R1324501VXA

ADA4084-2AF-EMX

PRODUCTION

pdf

PCN20_0339_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

pdf

Qualification Results Summary

external-icon
Oct 2, 2019

- 19_0212

arrow down

ADA4084-2S and ADA4084-4S Thermal Power Dissipation Correction for Aerospace Models

5962L1324502VXA

5962R1324501VXA

ADA4084-2AF-EMX

PRODUCTION

pdf

PCN19_0212_Form

external-icon

xls

Material_Report

Download
Oct 24, 2018

- 18_0166

arrow down

ADF4108S and ADA4084-2S Aerospace Models Elimination of Secondary Burn-In Condition

5962L1324502VXA

5962R1324501VXA

pdf

PCN18_0166_Form

external-icon

xls

Material_Report

Download
Nov 18, 2015

- 15_0219

arrow down

Laser Marking Standardization for Aerospace Packages

5962R1324501VXA

pdf

PCN15_0219_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon
