AD9912: 1 GSPS Direct Digital Synthesizer with 14-Bit DAC Data Sheet (Rev. F)6/10/2010926 kB
Features and Benefits
- 1 GSPS internal clock speed (up to 400 MHz output directly)
- Integrated 1 GSPS 14-bit DAC
- 48-bit frequency tuning word with 4 μHz resolution
- Differential HSTL comparator
- Flexible system clock input accepts either crystal or external reference clock
- On-chip low noise PLL REFCLK multiplier
- 2 SpurKiller channels
- See data sheet for additional information

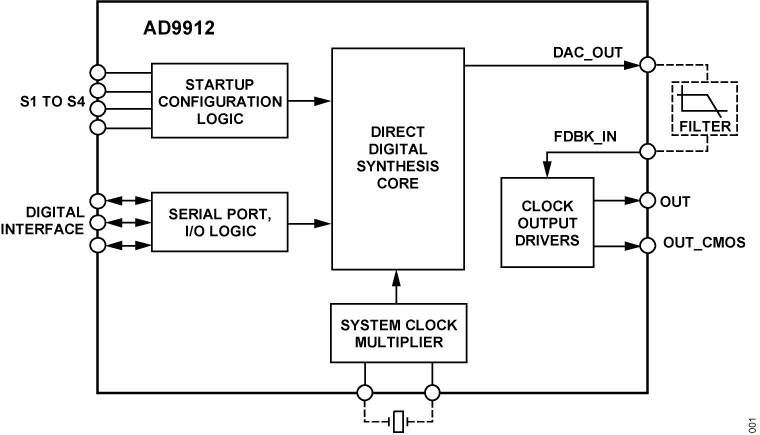

The AD9912 is a direct digital synthesizer (DDS) that features an integrated 14-bit digital-to-analog converter (DAC). The AD9912 features a 48-bit frequency tuning word (FTW) that can synthesize frequencies in step sizes no larger than 4 μHz. Absolute frequency accuracy can be achieved by adjusting the DAC system clock.
The AD9912 also features an integrated system clock phase-locked loop (PLL) that allows for system clock inputs as low as 25 MHz.
The AD9912 operates over an industrial temperature range, spanning −40°C to +85°C.
- Agile LO frequency synthesis
- Low jitter, fine tune clock generation
- Test and measurement equipment
- Wireless base stations and controllers
- Secure communications
- Fast frequency hopping
Markets and Technologies
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
The AD9912 evaluation board is an evaluation platform for the AD9912 direct digital synthesizer (DDS). It easily connects to a host computer via a USB interface and allows easy access to all AD9912 features via the Windows®-based evaluation software and graphical user interface.
Features & Benefits
- Flexible system clock input accepts crystal, crystal oscillator, or external reference clock
- Dedicated pad for mounting crystal or crystal oscillator
- DAC output easily accessible via SMA connector
- SMA connectors provided for external reconstruction filter
- Easy to use Windows graphical user interface
- Software control of all AD9912 features
- Power supplies that are easily separated
- Connection via USB port
- Dedicated SMA connectors for CMOS, DAC, and HSTL outputs
- Residual phase noise at 250 MHz
10 Hz offset: −113 dBc/Hz
1 kHz offset: −133 dBc/Hz
100 kHz offset: −153 dBc/Hz
40 MHz offset: −161 dBc/Hz
Documentation & Resources
AN-1396: How to Predict the Frequency and Magnitude of the Primary Phase Truncation Spur in the Output Spectrum of a Direct Digital Synthesizer (DDS) (Rev. 0)3/1/2016118 K
AN-1389: Recommended Rework Procedure for the Lead Frame Chip Scale Package (LFCSP) (Rev. 0)1/25/2016133K
AN-769: Generating Multiple Clock Outputs from the AD9540 (Rev. 0)2/14/20150
AN-939: Super-Nyquist Operation of the AD9912 Yields a High RF Output Signal (Rev. 0)2/14/2015221 kB
AN-837: DDS-Based Clock Jitter Performance vs. DAC Reconstruction Filter Performance (Rev. 0)2/14/2015313 kB
AN-557: An Experimenter's Project: (Rev. 0)2/14/2015368 kB
AN-419: A Discrete, Low Phase Noise, 125 MHz Crystal Oscillator for the AD98502/14/2015101 kB
AN-237: Choosing DACs for Direct Digital Synthesis2/14/20151156 kB
AN-423: Amplitude Modulation of the AD9850 Direct Digital Synthesizer2/14/201537 kB
AN-345: Grounding for Low-and-High-Frequency Circuits2/14/2015455 kB
AN-342: Analog Signal-Handling for High Speed and Accuracy2/14/2015468 kB
AN-823: Direct Digital Synthesizers in Clocking Applications Time (Rev. 0)2/14/2015115 kB
AN-280: Mixed Signal Circuit Technologies2/14/20152101 kB
AN-605: Synchronizing Multiple AD9852 DDS-Based Synthesizers (Rev. 0)2/14/2015527 kB
AN-927: Determining if a Spur is Related to the DDS/DAC or to Some Other Source (For Example, Switching Supplies) (Rev. 0)2/14/2015170 kB
AN-587: Synchronizing Multiple AD9850/AD9851 DDS-Based Synthesizers (Rev. 0)2/14/2015116 kB
AN-953: Direct Digital Synthesis (DDS) with a Programmable Modulus (Rev. B)3/27/2008112 kB
AN-843: Measuring a Loudspeaker Impedance Profile Using the AD5933 (Rev. A)6/27/2007284 kB
AN-851: A WiMax Double Downconversion IF Sampling Receiver Design (Rev. 0)7/26/2006262 kB
AN-847: Measuring a Grounded Impedance Profile Using the AD5933 (Rev. A)6/20/2006294 kB
AN-772: A Design and Manufacturing Guide for the Lead Frame Chip Scale Package (LFCSP)2/1/2006
AN-632: Provisionary Data Rates Using the AD9951 DDS as an Agile Reference Clock for the ADN2812 Continuous-Rate CDR (Rev. 0)9/25/2003138 kB
AN-543: High Quality, All-Digital RF Frequency Modulation Generation with the ADSP-2181 and the AD9850 DDS9/12/200249 K
• AN-543 - Monaural FM TransmitterDSP
• AN-543 - Stereo FM TransmitterDSP
UG-475: Evaluating the AD9912 1 GSPS Direct Digital Synthesizer with 14-Bit DAC3/11/2014496 kB
Video Portables and Cameras Get HDMI Outputs4/13/2007
Improved DDS Devices Enable Advanced Comm Systems9/1/2006
ADI Buys Korean Mobile TV Chip Maker6/7/2006
The Year of the Waveform Generator12/1/2005
Synchronized Synthesizers Aid Multichannel Systems9/20/2005
DDS IC Initiates Synchronized Signals7/20/2005
Digital Waveform Generator Provides Flexible Frequency Tuning for Sensor Measurement12/7/2004
DDS Simplifies Polar Modulation8/5/2004
Integrated DDS Chip Takes Steps To 2.7 GHz4/28/2004
Speedy A/Ds Demand Stable Clocks3/22/2004
DDS IC Plus Frequency-To-Voltage Converter Make Low-Cost DAC2/5/2004
Simple Circuit Controls Stepper Motors1/8/2004
Two DDS ICs Implement Amplitude-shift Keying12/25/2003
DDS Circuit Generates Precise PWM Waveforms10/2/2003
DDS Device Produces Sawtooth Waveform7/10/2003
400-MSample DDSs Run On Only +1.8 VDC12/1/2002
Digital Potentiometers Vary Amplitude In DDS Devices5/29/2000
DDS Device Provides Amplitude Modulation9/2/1999
Basics of Designing a Digital Radio Receiver (Radio 101)3/6/1998
Tools & Simulations
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|

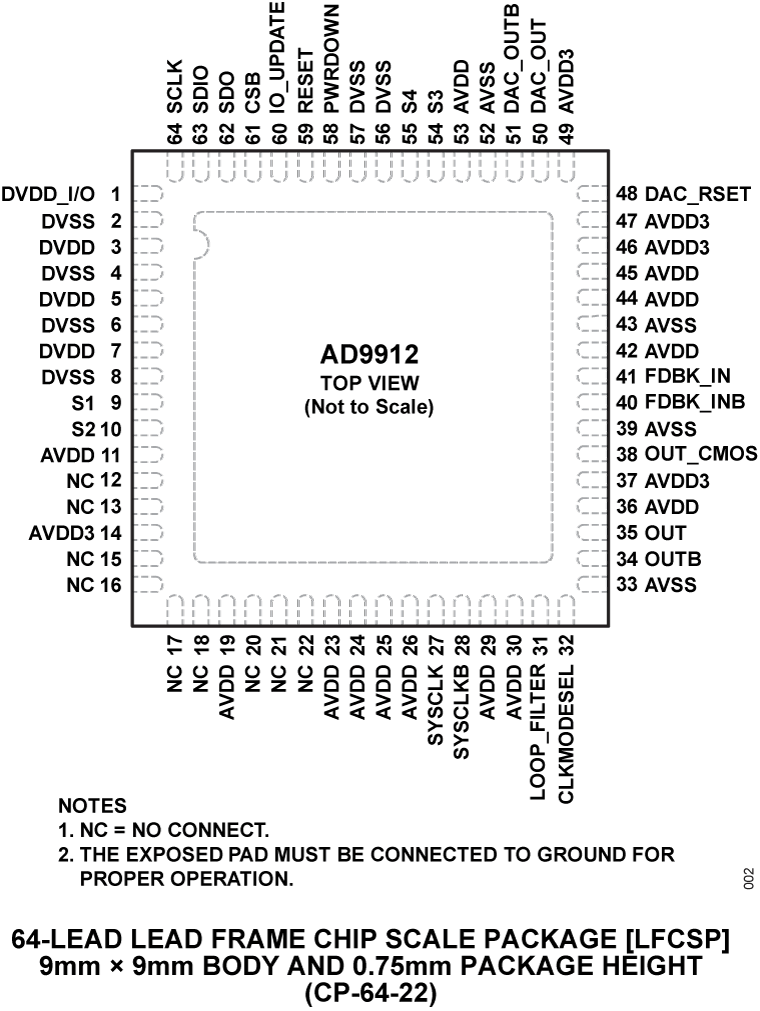

|AD9912ABCPZ||Material Declaration||Reliability Data||64-Lead LFCSP (9mm x 9mm w/ EP)|
