AD9639

Quad 12-Bit, 170/210 MSPS, Serial Output 1.8 V A/D Converter

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price Starting From $133.77
Features
  • Four ADCs in one package
  • 8B/10B Encoded data streams, with embedded clock; JESD204 compliant
  • Serial Current Mode Logic (CML) digital outputs
  • SNR = 65 dBFs (to Nyquist) at 210Msps
  • SFDR = 77dBc (to Nyquist) at 210Msps
  • Excellent linearity
    DNL = ±0.5 LSB (typical)
    INL = ±0.5 LSB (typical)
  • 700 MHz full power analog bandwidth
  • Please see data sheet for additional features.
Additional Details
show more Icon

The AD9639 is a quad, 12-bit, 210 MSPS analog-to-digital converter (ADC) with an on-chip temperature sensor and a high speed serial interface. It is designed to support digitizing high frequency, wide dynamic range signals with an input bandwidth up to 780MHz. The output data are serialized per the JESD204 standard. The ADC requires a single 1.8 V power supply and the input clock may be driven differentially with a sine wave, LVPECL, TTL, or LVDS. A clock duty cycle stabilizer allows high performance at full speed with a wide range of clock duty cycles. The on-chip reference removes the need for external decoupling and can be adjusted by means of SPI control.

Various power-down and standby modes are supported. The ADC typically consumes 145 mW per channel with the digital link still in operation when standby operation is enabled.

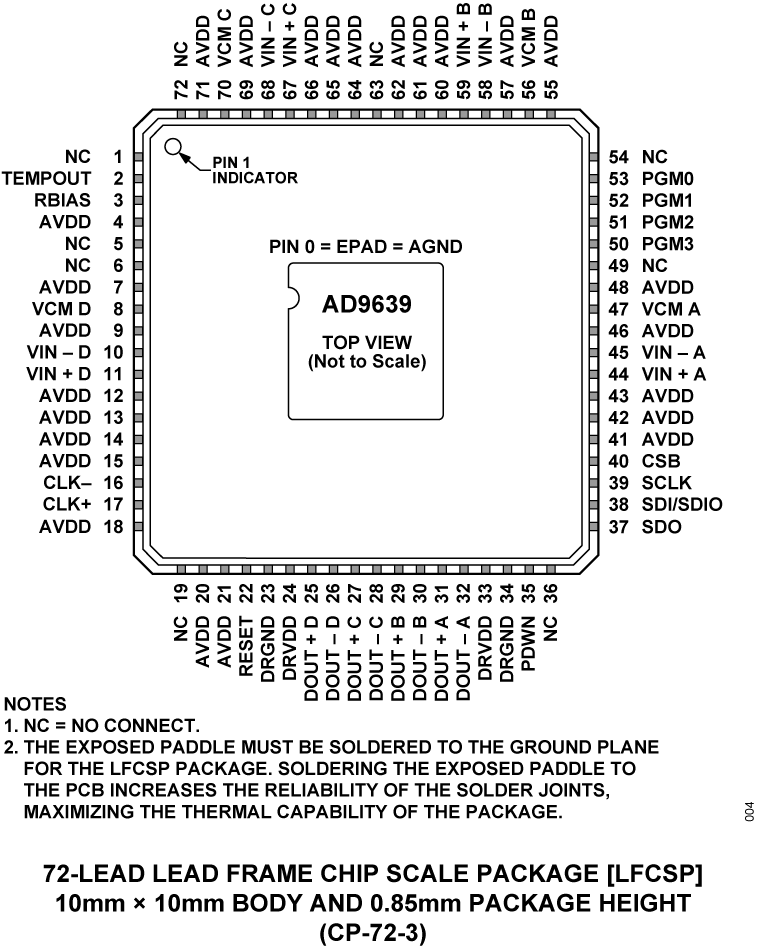

Fabricated on an advanced CMOS process, the AD9639 is available in a Pb free/RoHS compliant, 72-lead LFCSP package. It is specified over the industrial temperature range of −40°C to +85°C.

PRODUCT HIGHLIGHTS

  1. Four ADCs are contained in a small, space-saving package.
  2. On chip PLL allows user to provide one ADC sampling clock and the ADC distributes and multiplies up to produce the corresponding data rate clock.
  3. Encoded data rate supports up to 4Gbps per channel. Encoding includes 8B/10B to ensure proper DC common mode and embedded clock per JESD204.
  4. The AD9639 operates from a single 1.8 V power supply.

APPLICATIONS

  • Communication receivers
  • Cable head end equipment/M-CMTS
  • Broadband radios
  • Wireless infrastructure transceivers
  • Radar/mil-aero sub systems
  • Test equipment
Part Models 4
1ku List Price Starting From $133.77

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD9639BCPZ-170
  • HTML
  • HTML
AD9639BCPZ-210
  • HTML
  • HTML
AD9639BCPZRL-170
  • HTML
  • HTML
AD9639BCPZRL-210
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 6, 2023

- 23_0025

Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor

Jun 26, 2023

- 23_0025

Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 6, 2023

- 23_0025

arrow down

Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor

Jun 26, 2023

- 23_0025

arrow down

Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor

Evaluation Kit

Evaluation Kits 2

EVAL-AD9639

AD9639 Evaluation Board

reference details image

HSC-ADC-EVALCZ

FPGA-Based Data Capture Kit

zoom

HSC-ADC-EVALCZ

FPGA-Based Data Capture Kit

FPGA-Based Data Capture Kit

Features and Benefits

  • 64kB FIFO Depth
  • Works with single and multi-channel ADCs
  • Use with VisualAnalog® software
  • Based on Virtex-4 FPGA
  • May require adaptor to interface with some ADC eval boards
  • Allows programming of SPI control Up to 644 MSPS SDR / 800MSPS DDR Encode Rates on each channel
  • DDR Encode Rates on each channel

Product Detail

The HSC-ADC-EVALCZ high speed converter evaluation platform uses an FPGA based buffer memory board to capture blocks of digital data from the Analog Devices high speed analog-to-digital converter (ADC) evaluation boards. The board is connected to the PC through a USB port and is used with VisualAnalog® to quickly evaluate the performance of high speed ADCs. The evaluation kit is easy to set up. Additional equipment needed includes an Analog Devices high speed ADC evaluation board, a signal source, and a clock source. Once the kit is connected and powered, the evaluation is enabled instantly on the PC.
