Features
- 5 V at 55 mA output for an HDMI +5 V requirement
For hot plug detect with HDMI Tx - 3.3 V at 60 mA output
- Lithium battery input: 2.5 V to 4.5 V
- Short-circuit limitation: 100 mA

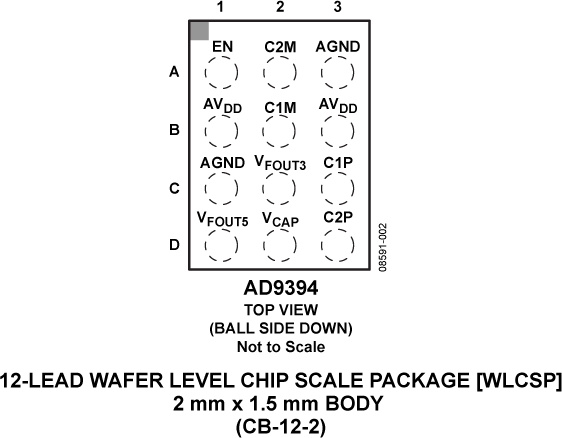

- 3 × 4 array WLCSP package
- Package footprint: 3 mm2 (2 mm × 1.5 mm)
- Package height: 0.5 mm
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The AD9394 uses charge pump technology to provide the power required to drive 55 mA of 5 V for HDMI interface requirements.
APPLICATIONS
- Cellular phones with HDMI/DVI output
- Companion chip with HDMI Tx
- Portable media players (PMPs)
- Mobile internet devices
- Digital still cameras
